3D printable mounts

Download free STL files to 3D print sensor mounts, acquisition unit holders and covers for BYB Telemetry suspension data acquisition, including Telemetry V3 and V3 Pro. Each model lists the frame, fork or shock it fits, so you can check compatibility before printing. A BYB Tech account is required to download the files.

Find your bike

Six mounting sets modelled for specific frames.

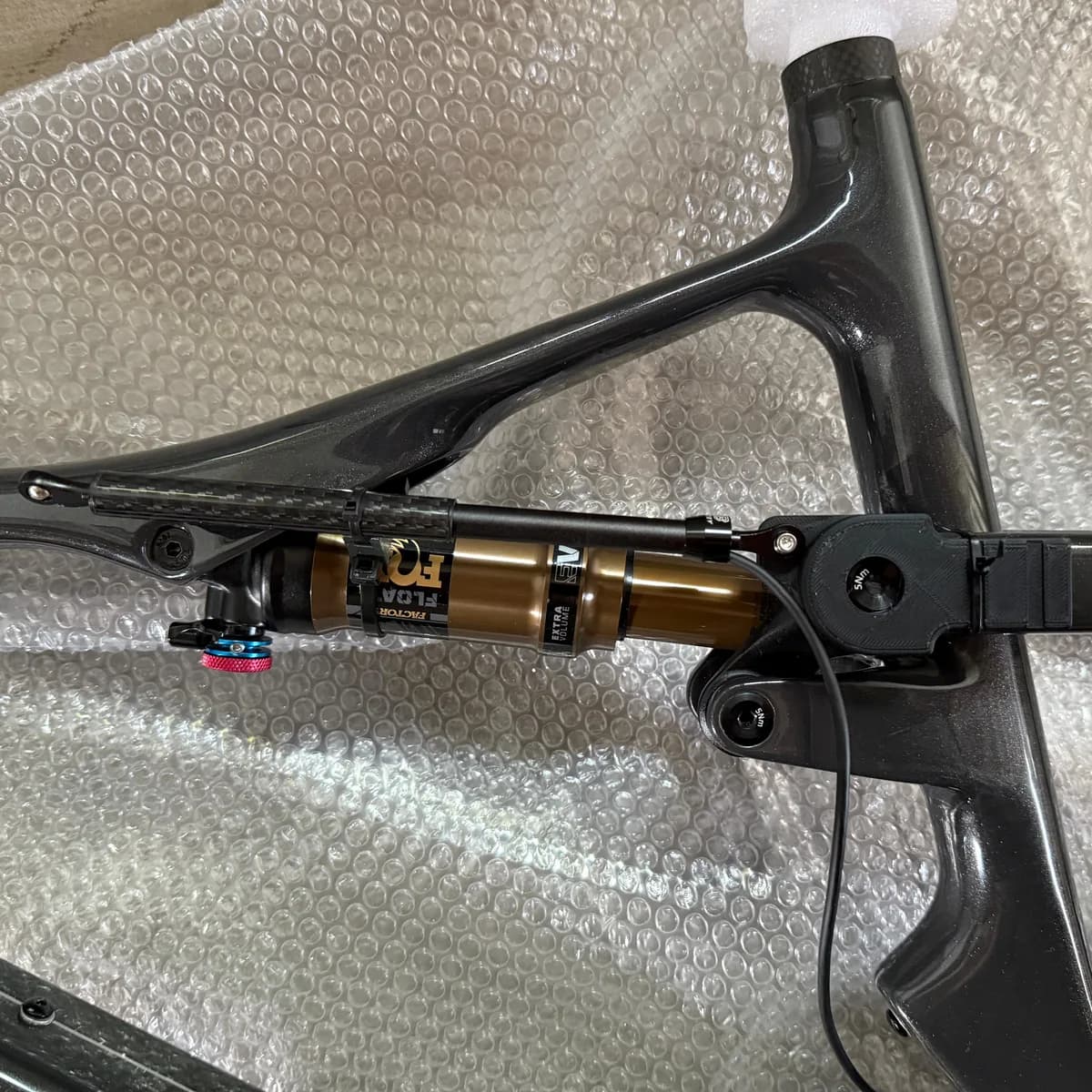

A Cannondale Scalpel carbon frame with a printed swingarm bracket and linear sensor fitted beside the Fox Float Factory rear shock, against a grey background.

Cannondale Scalpel 2025 — swingarm mount

Any 2025 Cannondale Scalpel

1 file

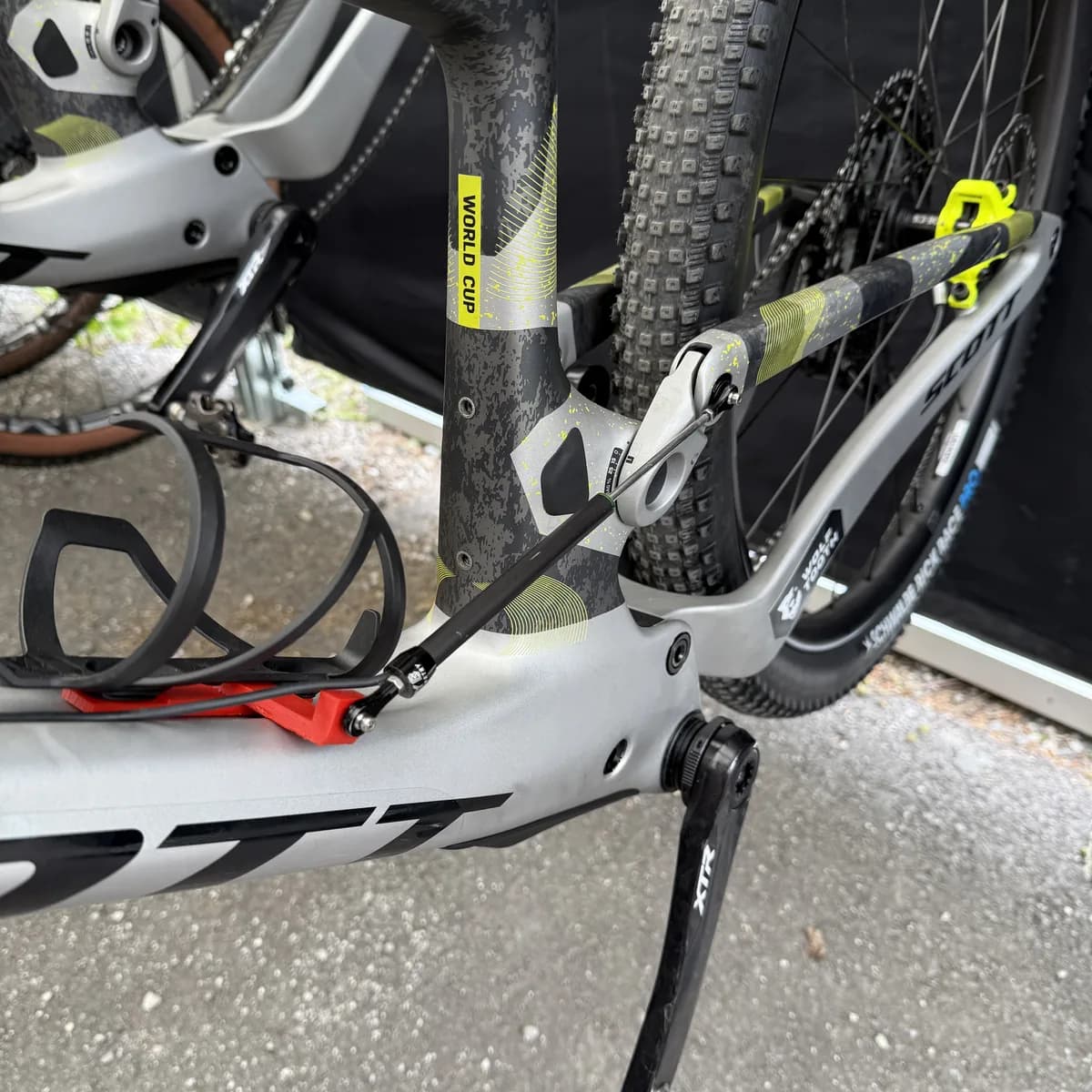

A Scott Spark with a red printed swingarm bracket and linear sensor fitted along the frame, against a grey background. The rear shock is hidden inside the frame.

Scott Spark — swingarm mount

Any Scott Spark with a hidden shock

1 file

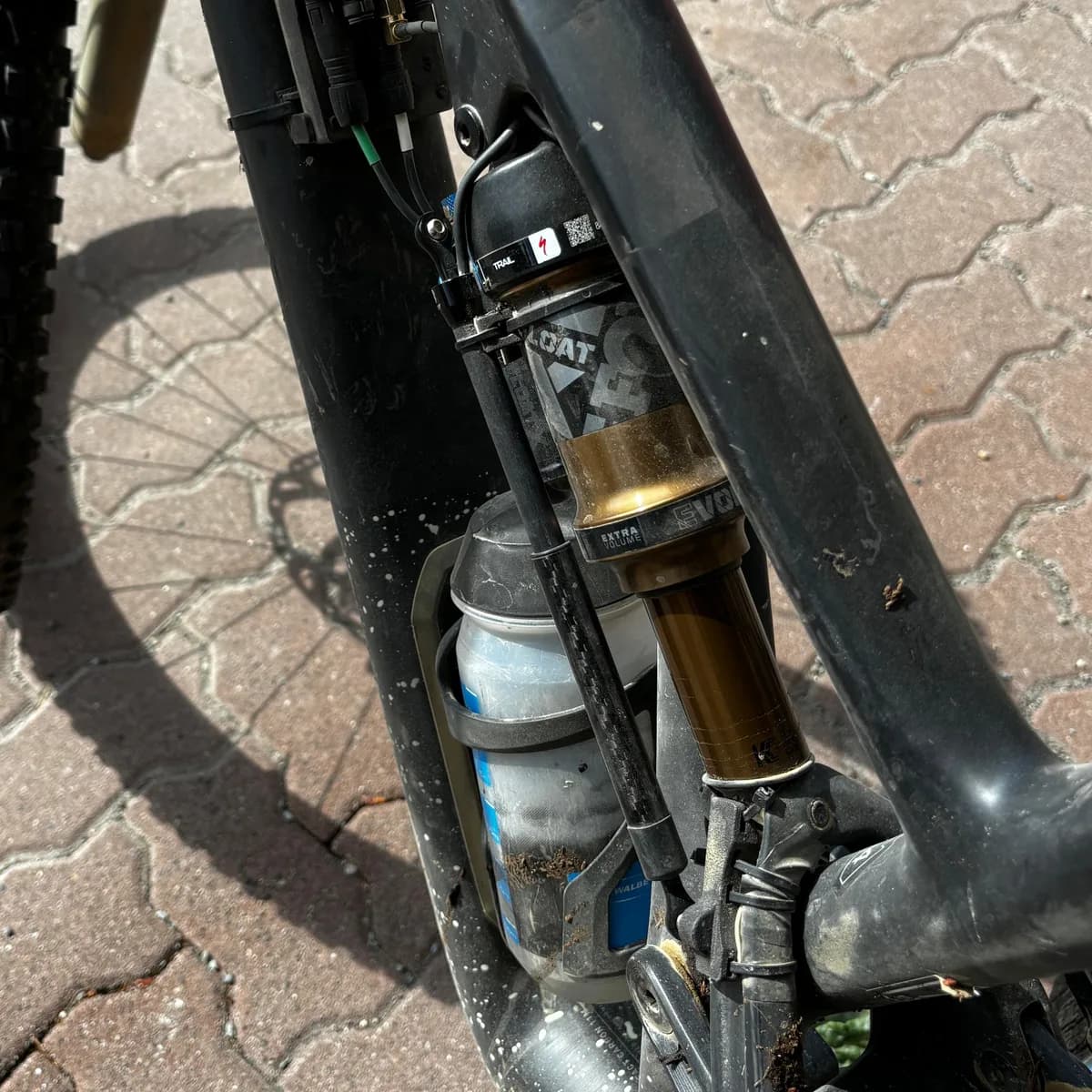

A Specialized Stumpjumper Evo with a linear sensor fitted alongside the Fox Float rear shock and a bottle behind it, against a grey background.

Specialized Stumpjumper Evo — link mount

Specialized Stumpjumper Evo

1 file

A Specialized Stumpjumper 15 with a linear sensor running from the printed link bracket alongside the Fox Genie rear shock, against a grey background.

Specialized Stumpjumper 15 — link mount

Specialized Stumpjumper 15

1 file

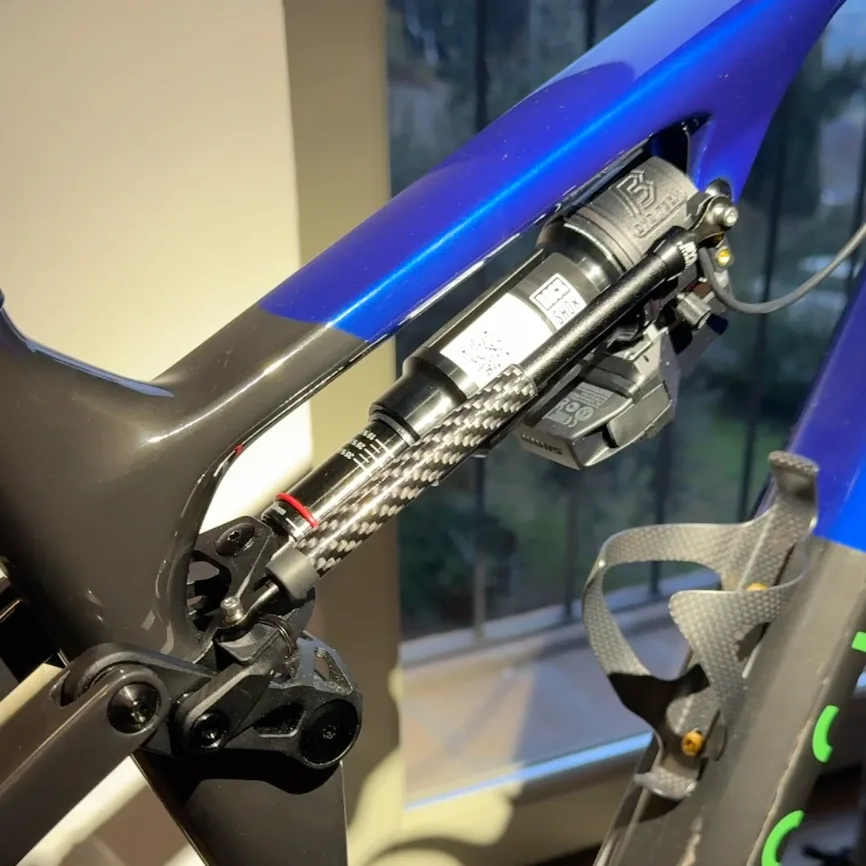

A blue Rockrider Race 940 S with a linear sensor running diagonally from the printed link bracket alongside the rear shock, against a grey background.

Rockrider Race 940 S — link mount

Rockrider Race 940 S

1 file

A grey Santa Cruz frame with a linear rear sensor attached to the printed link mount beside the coil shock, and the opposite sensor end beside the bottle cage holder.

Santa Cruz Nomad and Megatower — link and V3 unit mounts

Santa Cruz Nomad and Megatower: rear sensor on the link, Telemetry V3 unit on the bottle cage holder

3 files

Find your fork or shock

Keyed to a suspension unit rather than a frame, so they fit whatever bike that fork or shock is on.

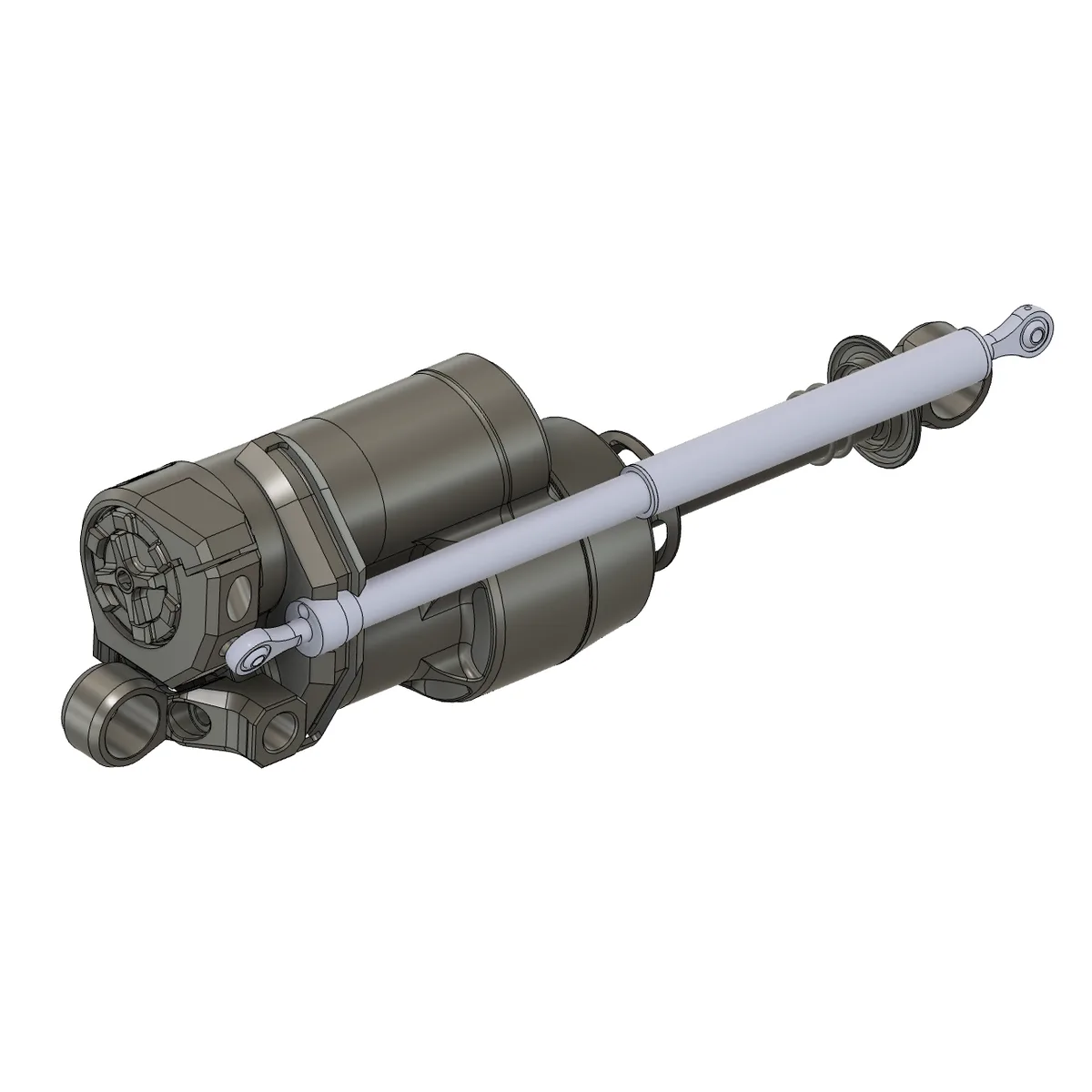

A CAD render of an Intend Hover rear shock with its piggyback reservoir, and the linear sensor mounted alongside it, eyelet to eyelet.

Intend Hover — shock mount

Intend Hover rear shock, on any frame it is fitted to

2 files

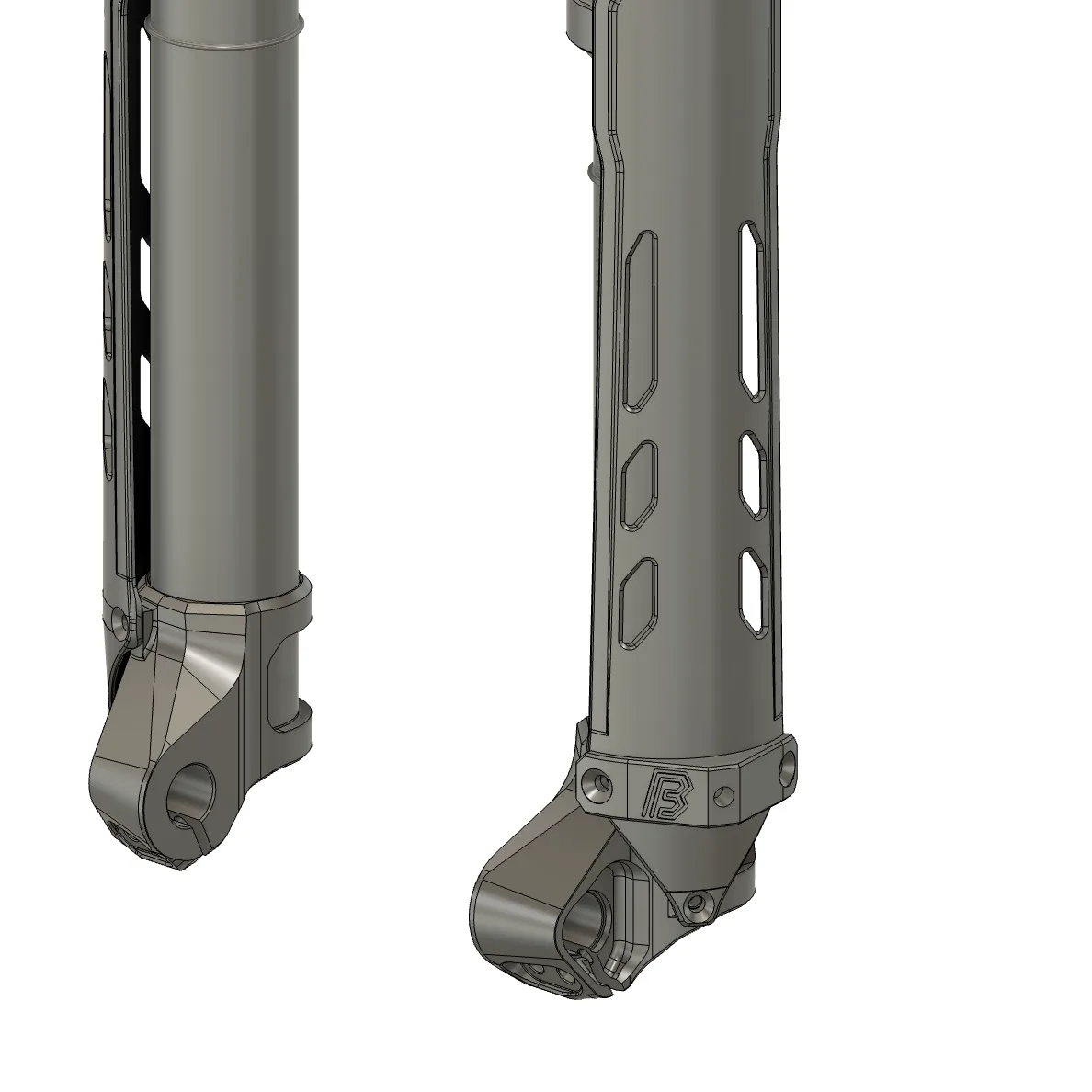

A CAD render of the lower legs of an Intend Black Edge fork, with the Intend mark on the lower crown.

Intend Black Edge — fork mount

Intend Black Edge fork, on any frame it is fitted to

3 files

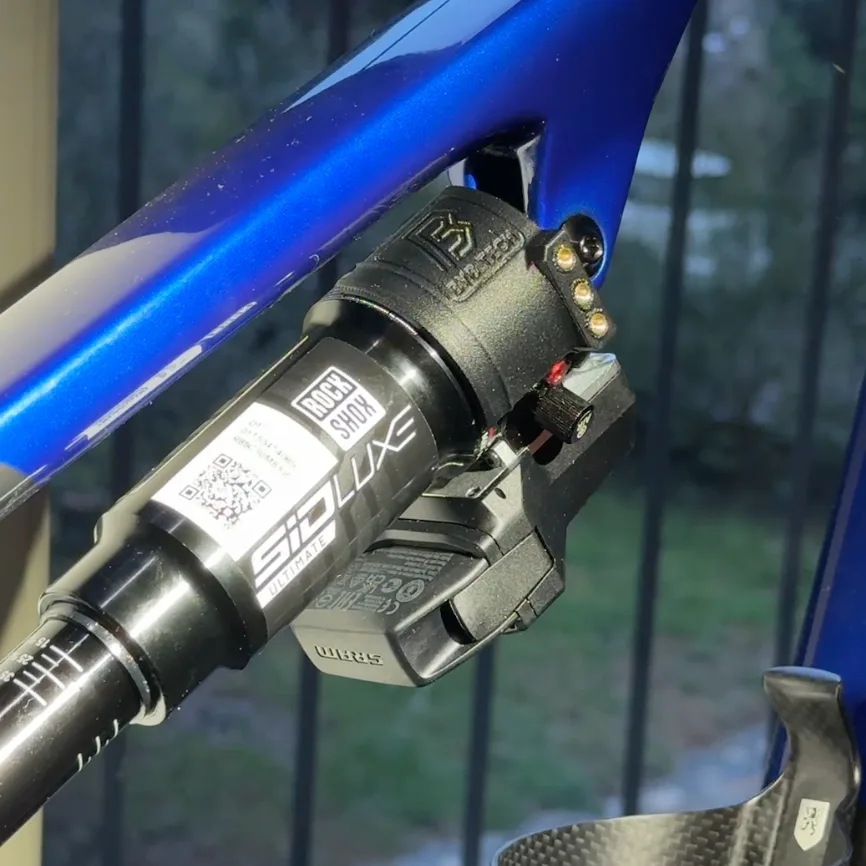

A blue frame carrying a RockShox SID Luxe Ultimate shock, with a black BYB Tech sensor mount around the shock body beside the Flight Attendant module, against a grey background.

RockShox SID Luxe Flight Attendant — shock mount

RockShox SID Luxe with Flight Attendant

1 file

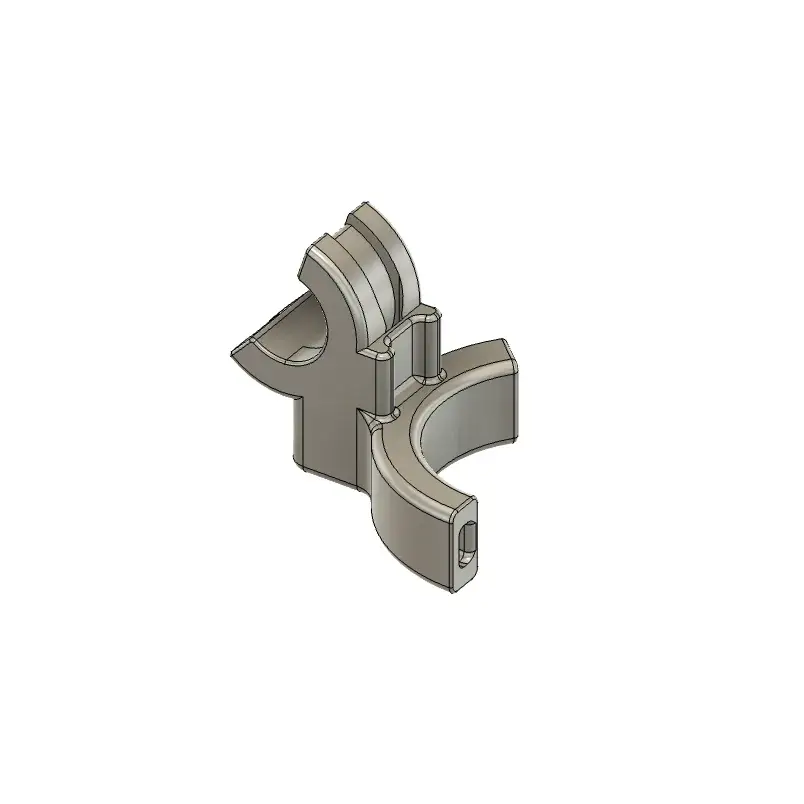

A CAD render of the printed mount on its own: a saddle-shaped part with two curved cradles set at right angles to each other.

Öhlins TTX2 Air — shock mount

Öhlins TTX2 Air rear shock

1 file

A CAD render of a coil-sprung Öhlins TTX22 M.2 rear shock with a linear sensor mounted alongside it, running the length of the spring up to the shock head.

Öhlins TTX22 M.2 — shock mount

Öhlins TTX22 M.2 trunnion-mount rear shock, at the shock head

1 file

A CAD render of the printed mount alone: an angled dark bracket with a slotted arm on one side and a half-round cradle set into a block on the other.

EXT Vaia — fork mount

EXT Vaia fork, at the bottom of the fork, on any frame it is fitted to

1 file

A CAD render of the V1 printed mount: a long dark arm with a slot along its length, ending in a clamp block with a half-round cradle.

Manitou Dorado — fork mount

Manitou Dorado fork, on any frame it is fitted to

2 files

BYB Telemetry V2 hardware

The V2 mountings are no longer sold. Printing them is the route left for a V2 owner.

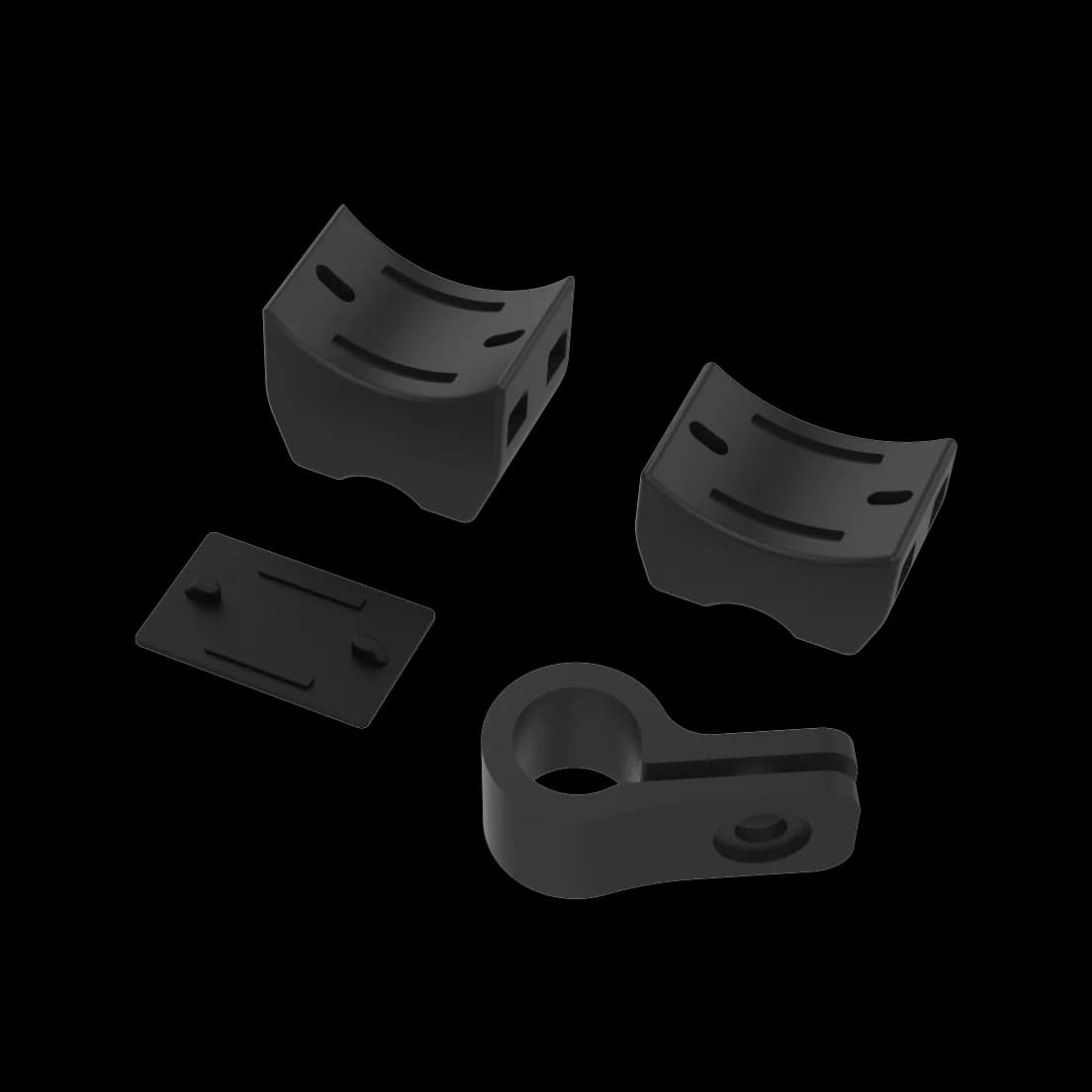

A render of the four printed V2 fork parts in black: two curved clamps, a flat plate with two pins, and a P-shaped cable clip.

BYB Telemetry V2 — fork mounts

Any fork, with a V2 acquisition unit

4 files

A render of the five printed V2 shock parts in black, each a small block with a differently shaped curved cradle.

BYB Telemetry V2 — shock mounts

Almost any shock, with a V2 acquisition unit

5 files

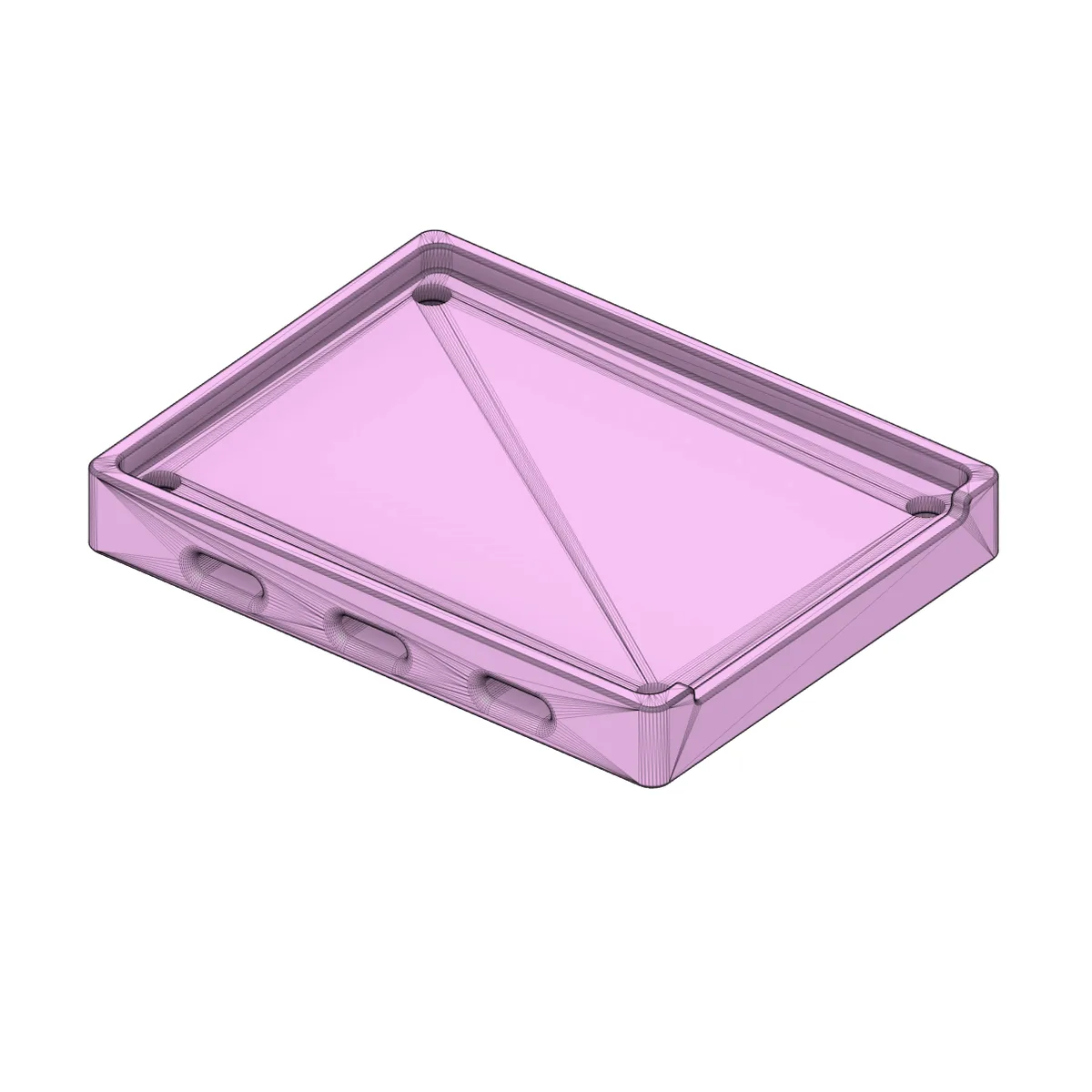

A CAD render of the printed tray the V2 acquisition unit sits in, with a raised lip and three slots along one side.

BYB Telemetry V2 — acquisition unit mount

The V2 acquisition unit, on the frame

2 files

Accessories

Not a sensor mount. Still free, still yours to print.

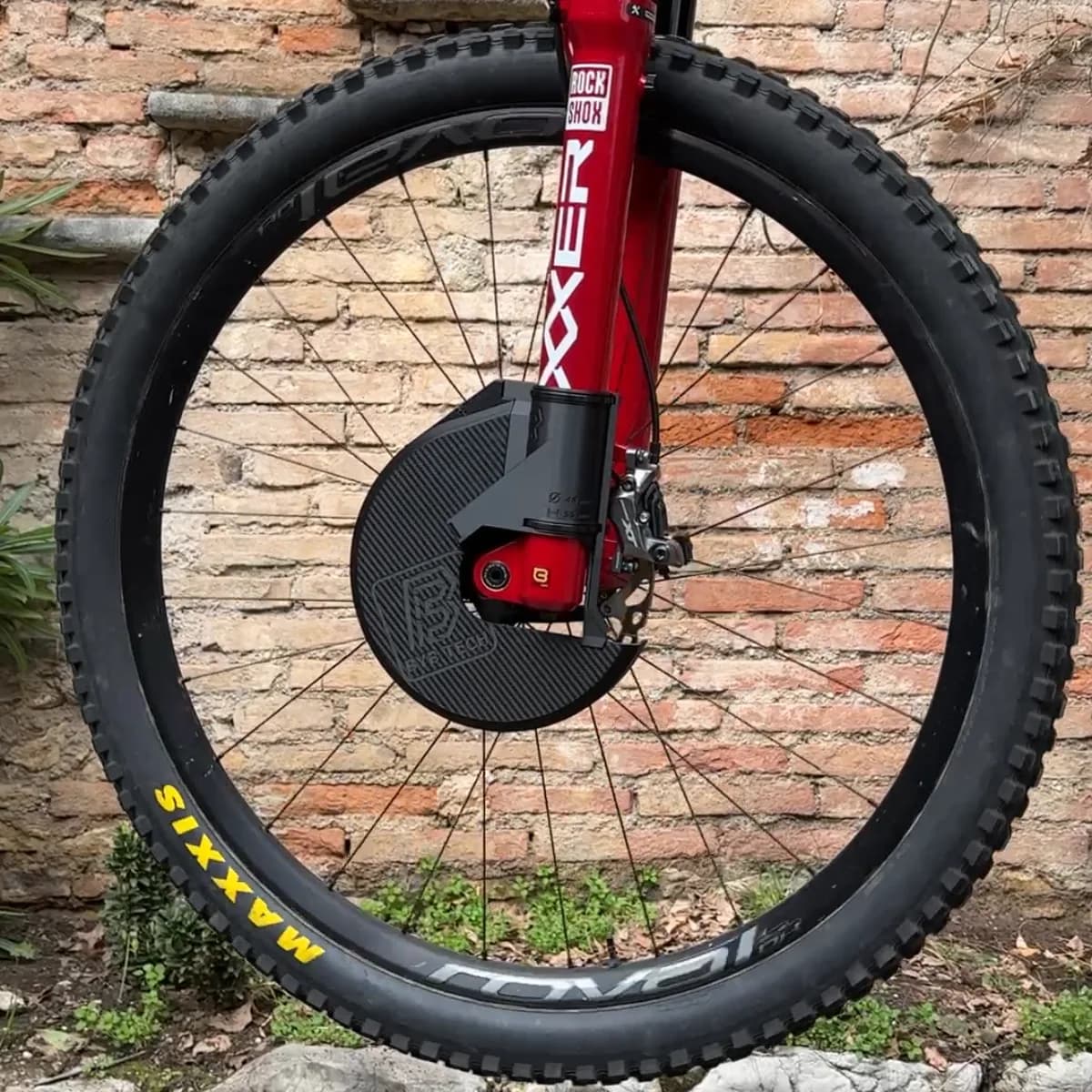

A red RockShox BoXXer fork against a brick wall, with the black printed disc cover fitted over the front rotor and the BYB Tech mark on its face.

Universal disc cover

The majority of forks on the market

14 files

A CAD render of the dark grey printed cover snapped over the acquisition unit, with the BYB Tech mark on top and a long slot along one side. A cut-out at the front leaves the unit’s two buttons and two status lights uncovered.

Telemetry V3 and V3 Pro — mud cover

Telemetry V3 and V3 Pro acquisition units

1 file
