Öhlins TTX22 M.2 — shock mount

Fits: Öhlins TTX22 M.2 trunnion-mount rear shock, at the shock head

Free STL file for a 3D-printed mount at the head of a trunnion-mount Öhlins TTX22 M.2. It holds the rear sensor of a BYB Telemetry data acquisition system.

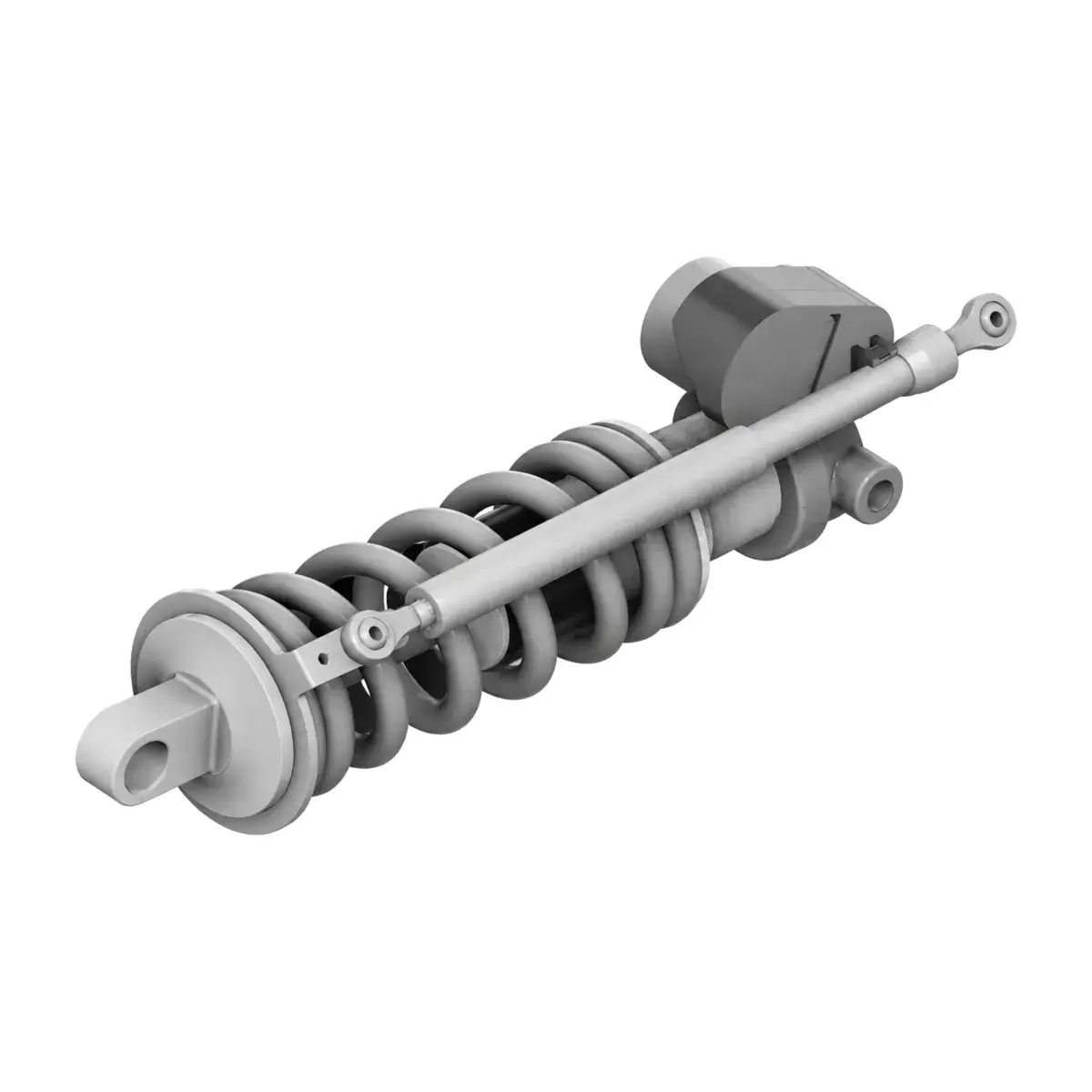

A CAD render of a coil-sprung Öhlins TTX22 M.2 rear shock with a linear sensor mounted alongside it, running the length of the spring up to the shock head. — The sensor fitted along an Öhlins TTX22 M.2, mounted at the shock head.

What is in the download

Part	Format	Size
Shock sensor mount	stl	0,4 MB
Total	1 file	0,4 MB
