Manitou Dorado — fork mount

Fits: Manitou Dorado fork, on any frame it is fitted to

This 3D-printed model allows you to attach your fork sensor to a Manitou Dorado fork. Two versions: V1 holds the sensor on the carbon cover, V2 on the uniball screw.

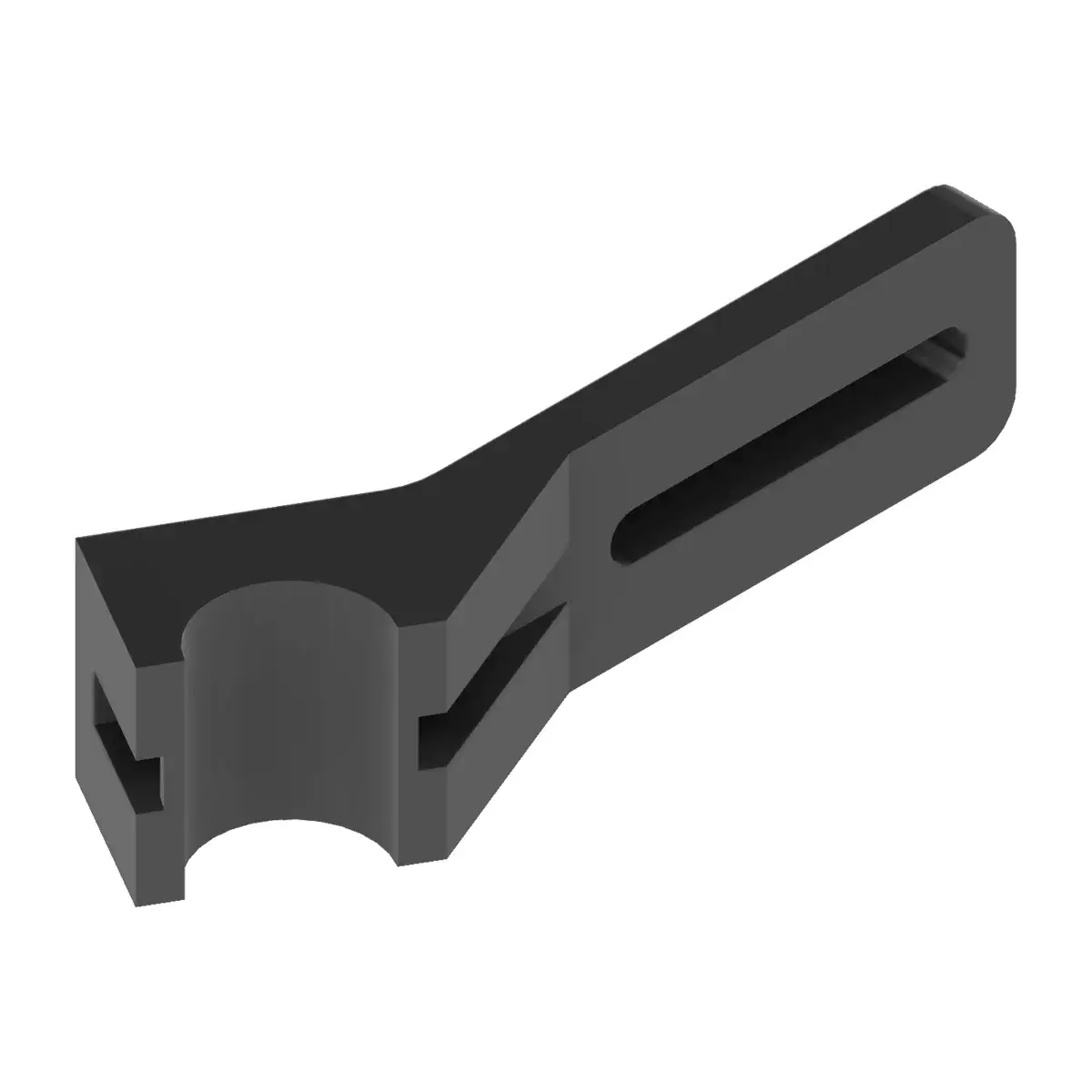

A CAD render of the V1 printed mount: a long dark arm with a slot along its length, ending in a clamp block with a half-round cradle. — V1 — holds the sensor on the carbon cover.

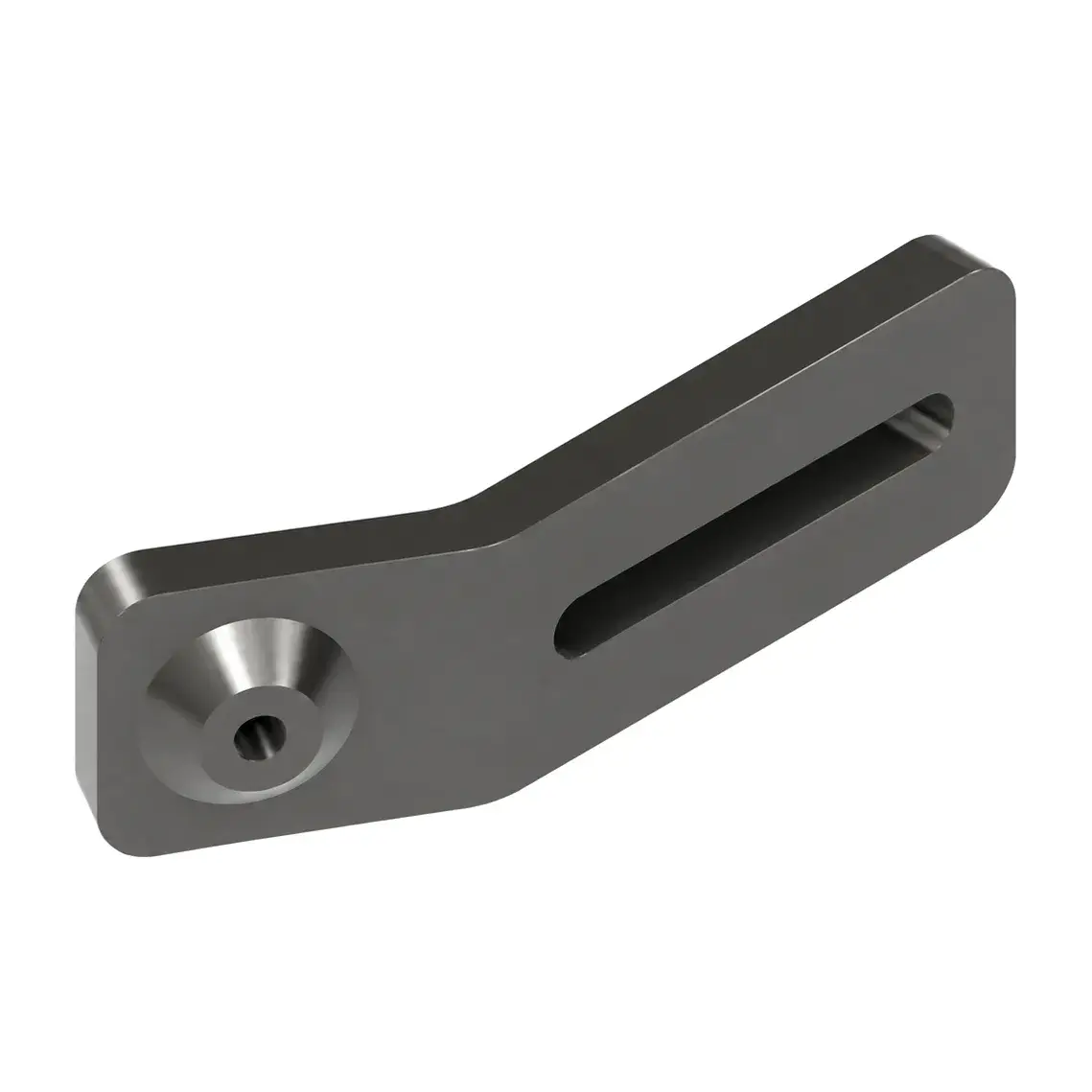

A CAD render of the V2 printed mount: a flat, angled grey arm with a long slot and a countersunk hole at one end. — V2 — holds the sensor on the uniball screw.

What is in the download

Part	Format	Size
Carbon cover sensor mount, V1	stl	< 0,1 MB
Uniball screw sensor mount, V2	stl	< 0,1 MB
Total	2 files	< 0,1 MB
