BYB Telemetry V2 — acquisition unit mount

Fits: The V2 acquisition unit, on the frame

Free STL files for 2 parts that mount the BYB Telemetry V2 data acquisition unit directly on your frame. The V2 mountings are no longer sold.

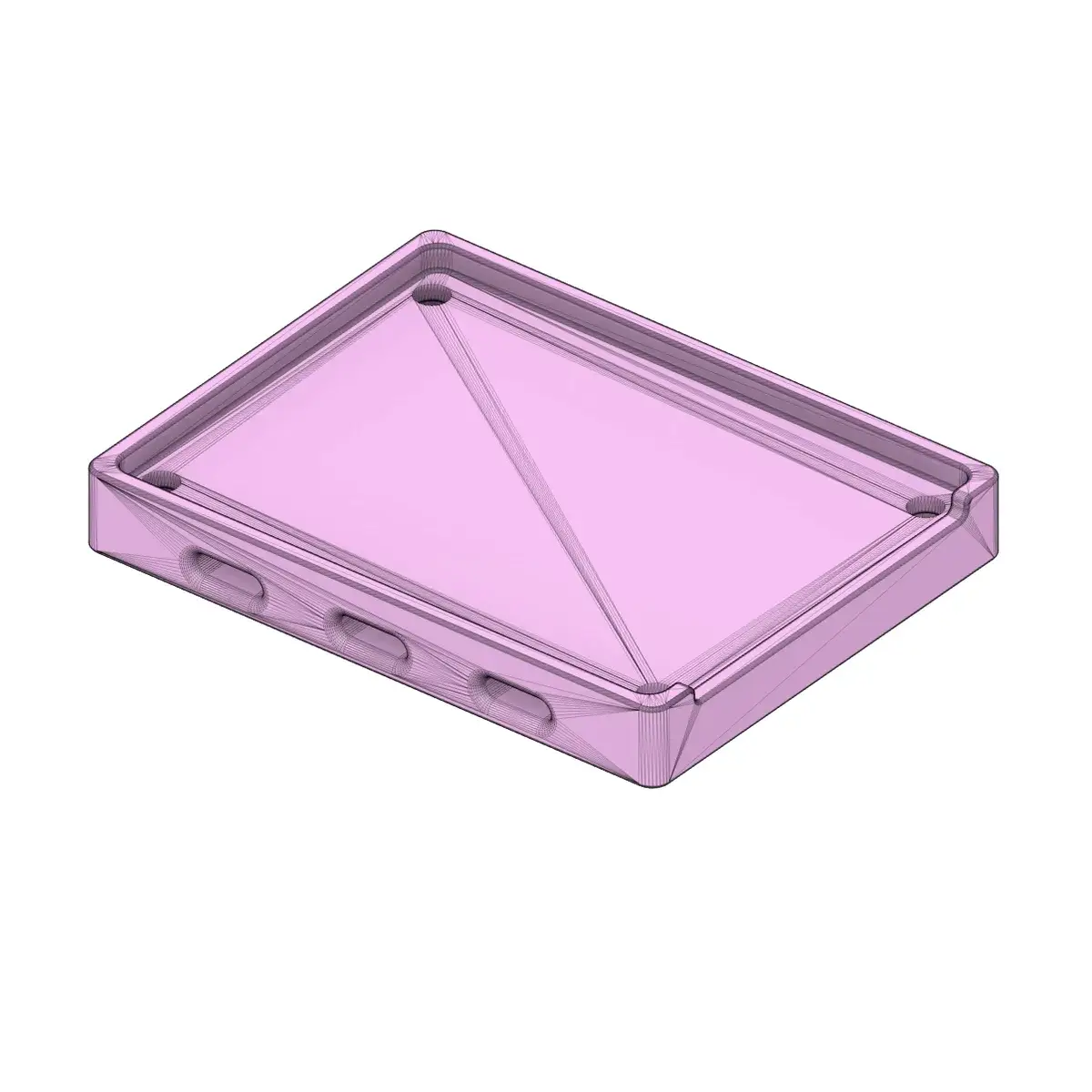

A CAD render of the printed tray the V2 acquisition unit sits in, with a raised lip and three slots along one side. — The tray the V2 acquisition unit sits in.

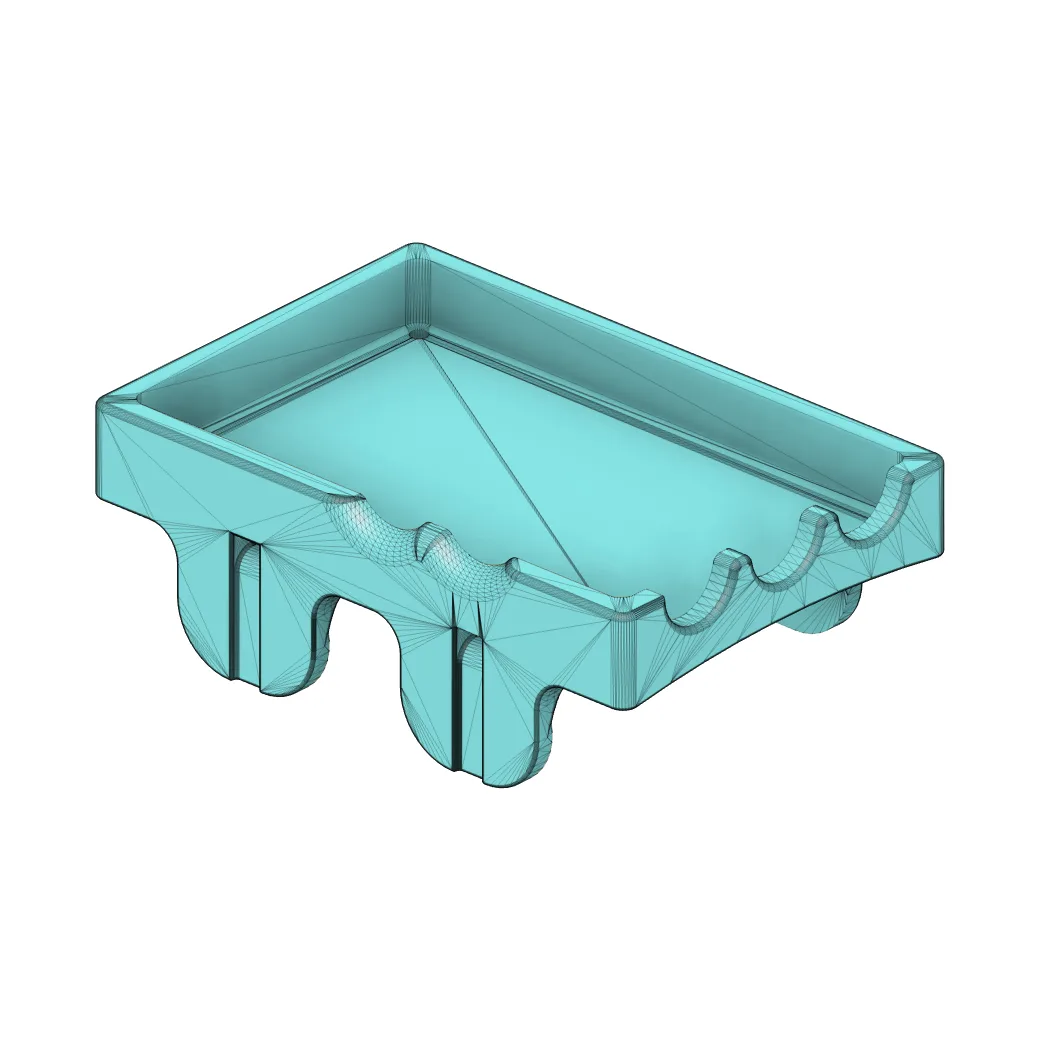

A CAD render of the second printed part seen from below, scalloped along its underside. — The second part, scalloped underneath to sit against the frame.

What is in the download

Part	Format	Size
Frame mount, part 1	stl	0,8 MB
Frame mount, part 2	stl	1,3 MB
Total	2 files	2,2 MB
