Intend Hover — shock mount

Fits: Intend Hover rear shock, on any frame it is fitted to

Free STL files for a 2-part 3D-printed mount for the Intend Hover rear shock. It holds the rear sensor of a BYB Telemetry suspension data acquisition system.

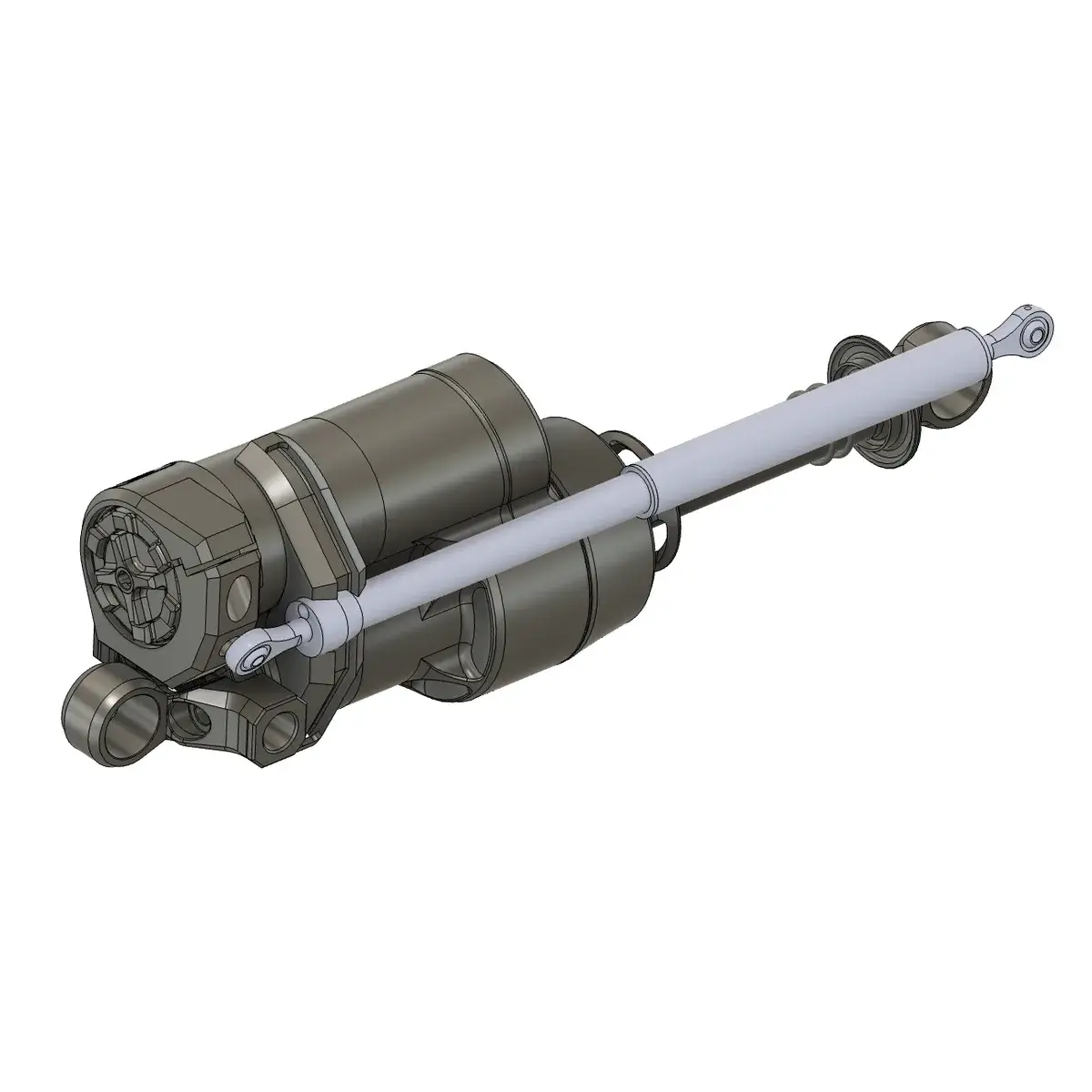

A CAD render of an Intend Hover rear shock with its piggyback reservoir, and the linear sensor mounted alongside it, eyelet to eyelet.
The sensor mounted on an Intend Hover rear shock, eyelet to eyelet.

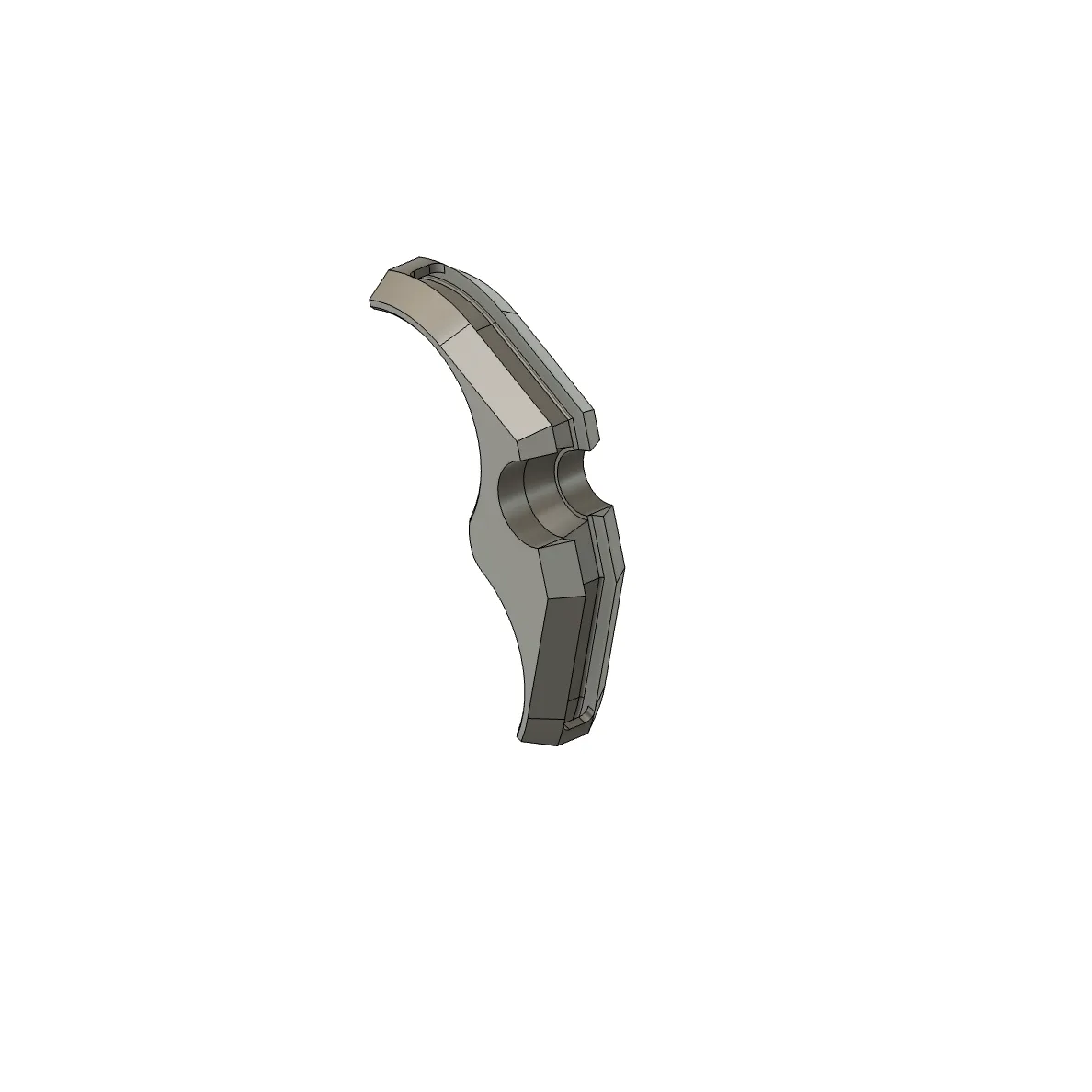

A CAD render of one of the two printed parts: a curved, tapered clamp half that wraps the shock body.
One of the two parts you print.

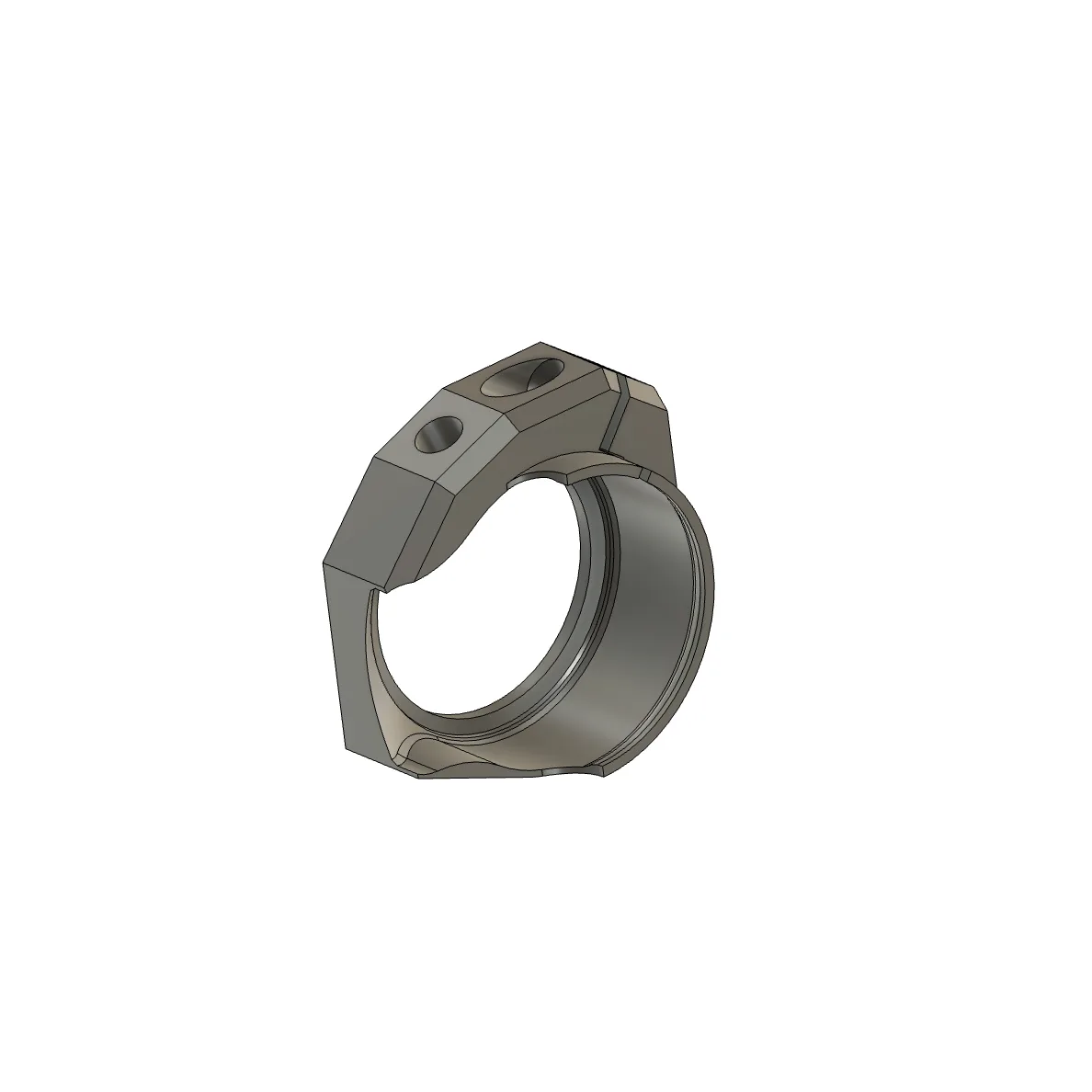

A CAD render of the second printed part: a ring clamp with two bolt holes across the top.
The second part — a ring clamp closed by two bolts.

What is in the download

PartFormatSize
Sensor mounting bracket, part 1stl0,2 MB
Sensor mounting bracket, part 2stl0,5 MB
Total2 files0,7 MB
