Intend Black Edge — fork mount

Fits: Intend Black Edge fork, on any frame it is fitted to

Free STL files for an Intend Black Edge fork mount: a top bracket and two lower options. It holds the fork sensor of a BYB Telemetry data acquisition system.

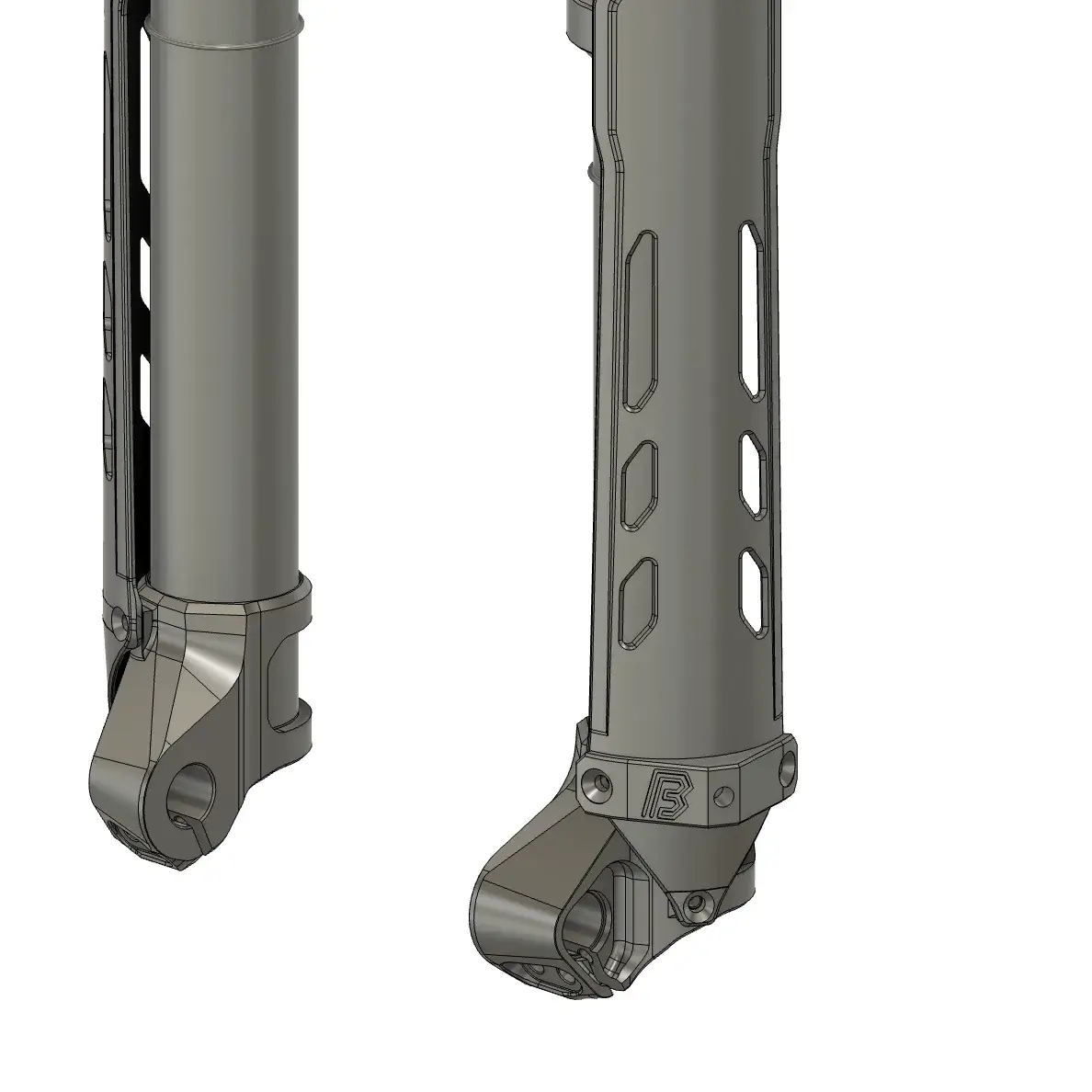

A CAD render of the lower legs of an Intend Black Edge fork, with the Intend mark on the lower crown. — The fork this is modelled for: an Intend Black Edge.

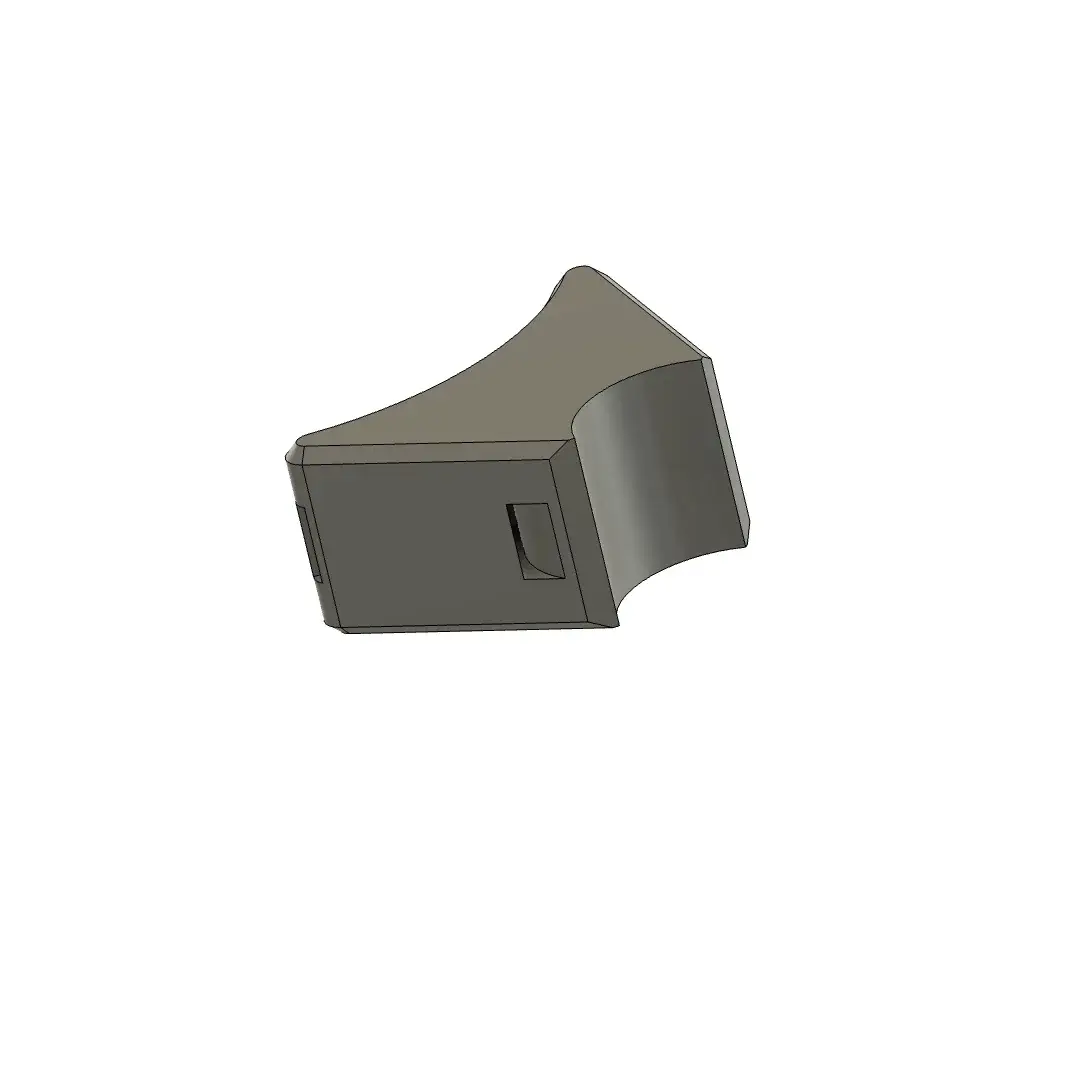

A CAD render of a printed clamp block with a curved saddle that sits against the fork leg. — One printed part, saddled to the fork leg.

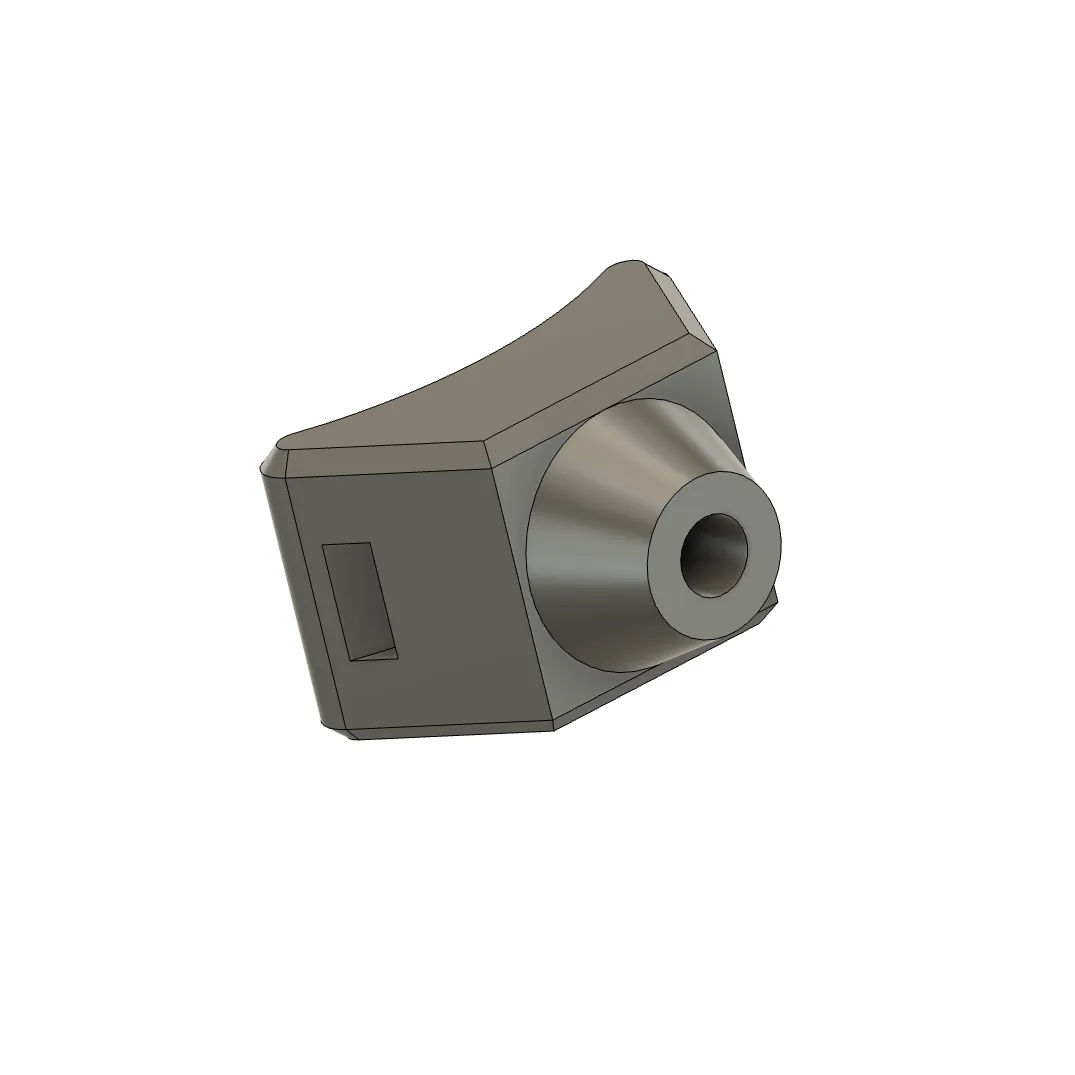

A CAD render of a printed clamp block with a through-bore for the sensor eyelet. — A second printed part, bored for the sensor eyelet.

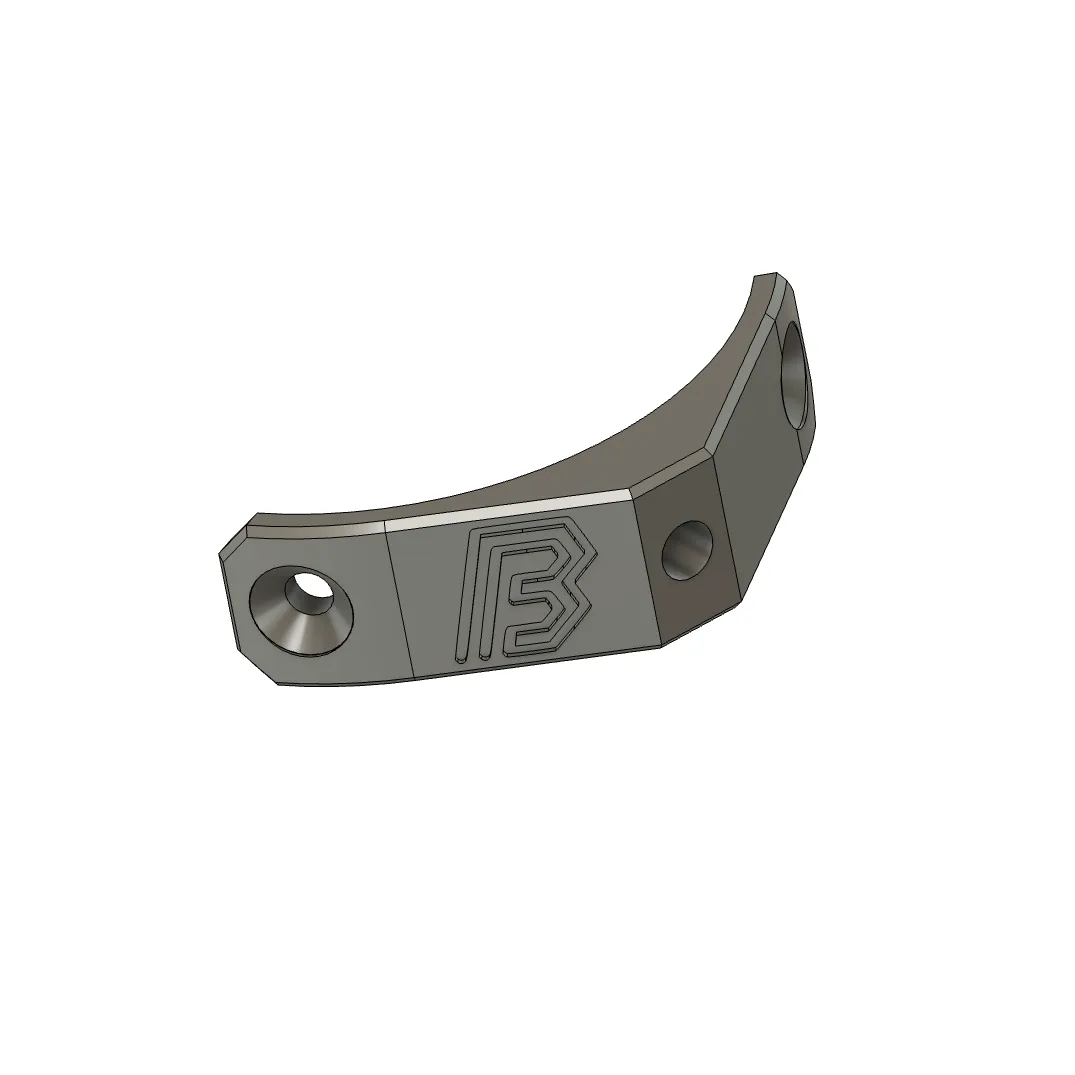

A CAD render of a curved printed bracket carrying the BYB Tech mark, with two countersunk holes. — The third printed part, with the BYB Tech mark.

What is in the download

Part	Format	Size
Sensor mount, top	stl	< 0,1 MB
Sensor mount, low	stl	< 0,1 MB
Sensor mount, low (alternate)	stl	0,2 MB
Total	3 files	0,3 MB
