Telemetry V3 Pro MX

Name: Telemetry V3 Pro MX
SKU: telemetry-v3-pro-mx
Price: 2799.00 EUR
Availability: InStock

2.799,00 € excl. VAT

VAT and delivery are calculated at checkout, once BYB Tech knows where the order is going.

Discipline

Delivery: Starting from 9,00 €

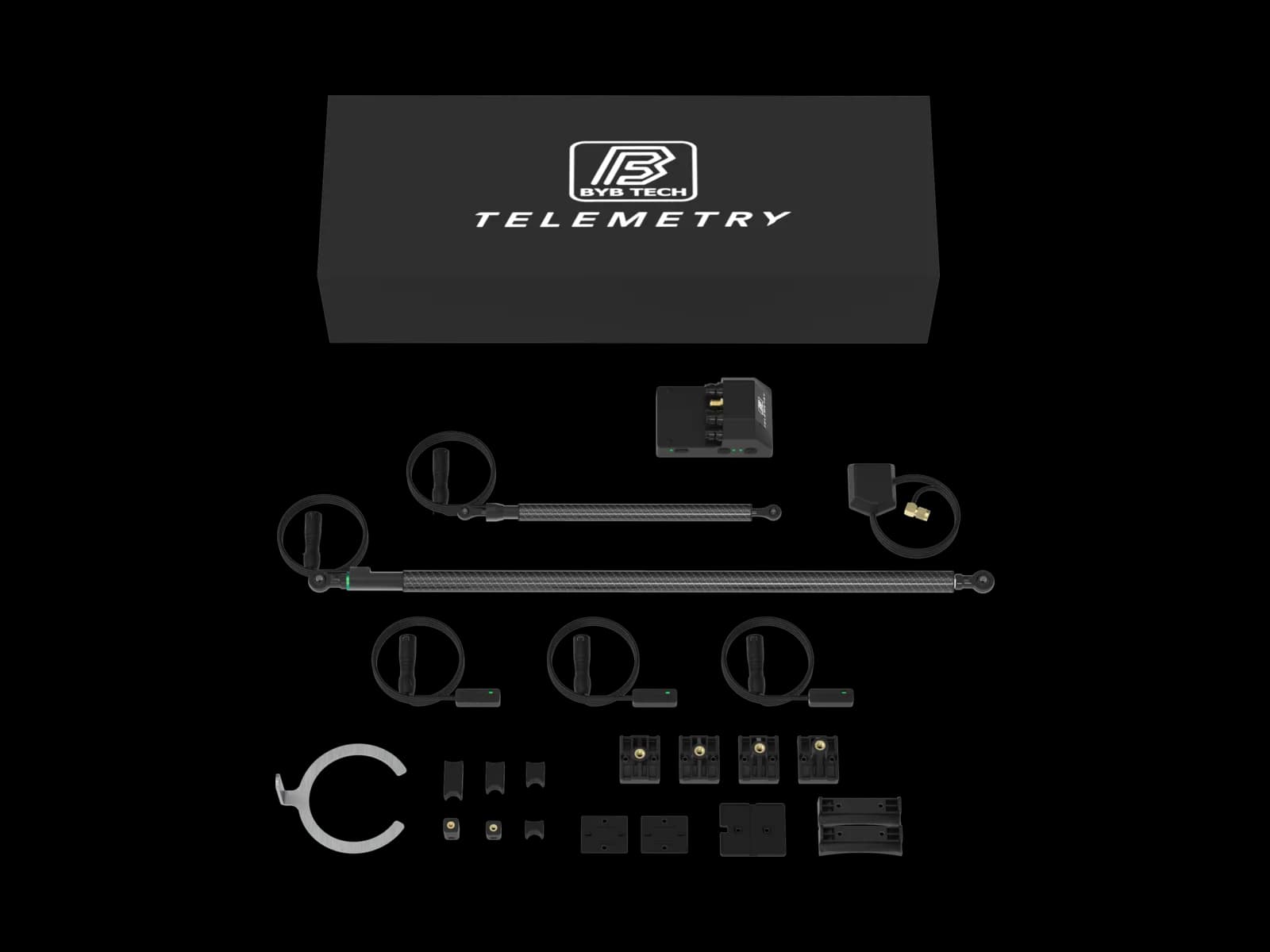

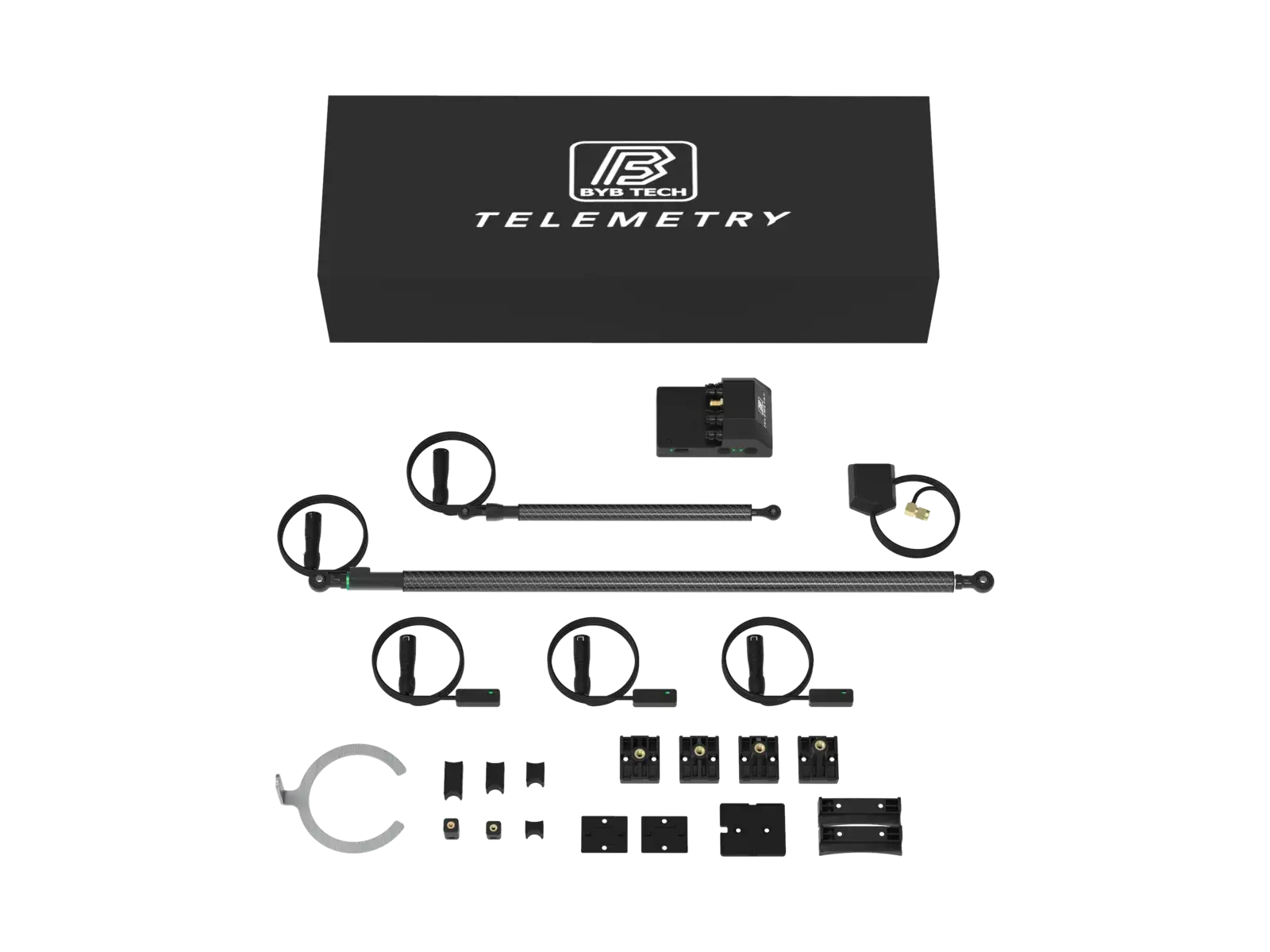

The Telemetry V3 Pro MX kit laid out flat: the printed BYB Tech Telemetry case, a long and a short linear sensor, the acquisition unit's cradle, a GPS antenna, and the fork and shock brackets, shims and fasteners that fit a motocross bike. — Everything in the MX box. The long sensor is the one that suits an MX fork.

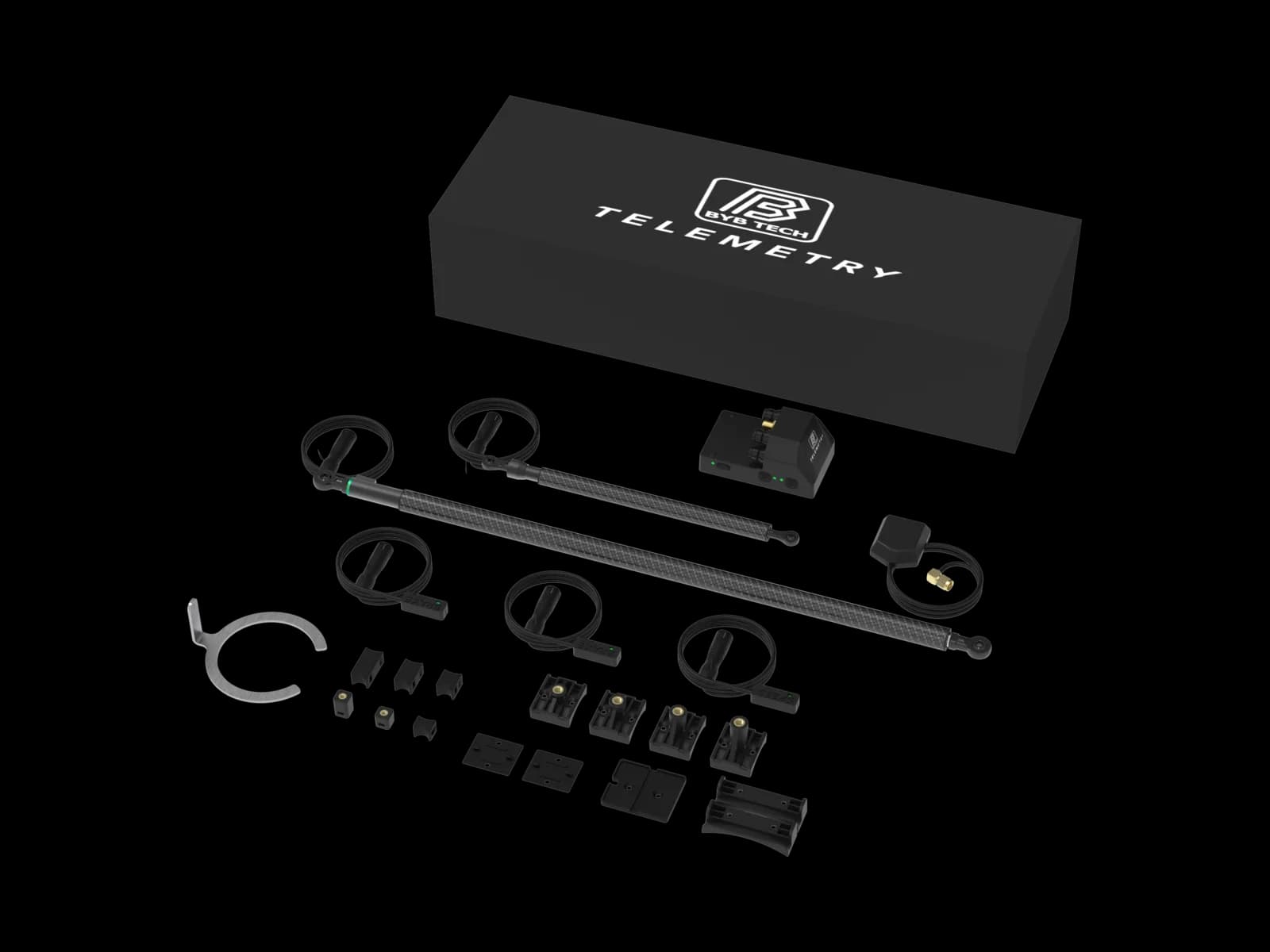

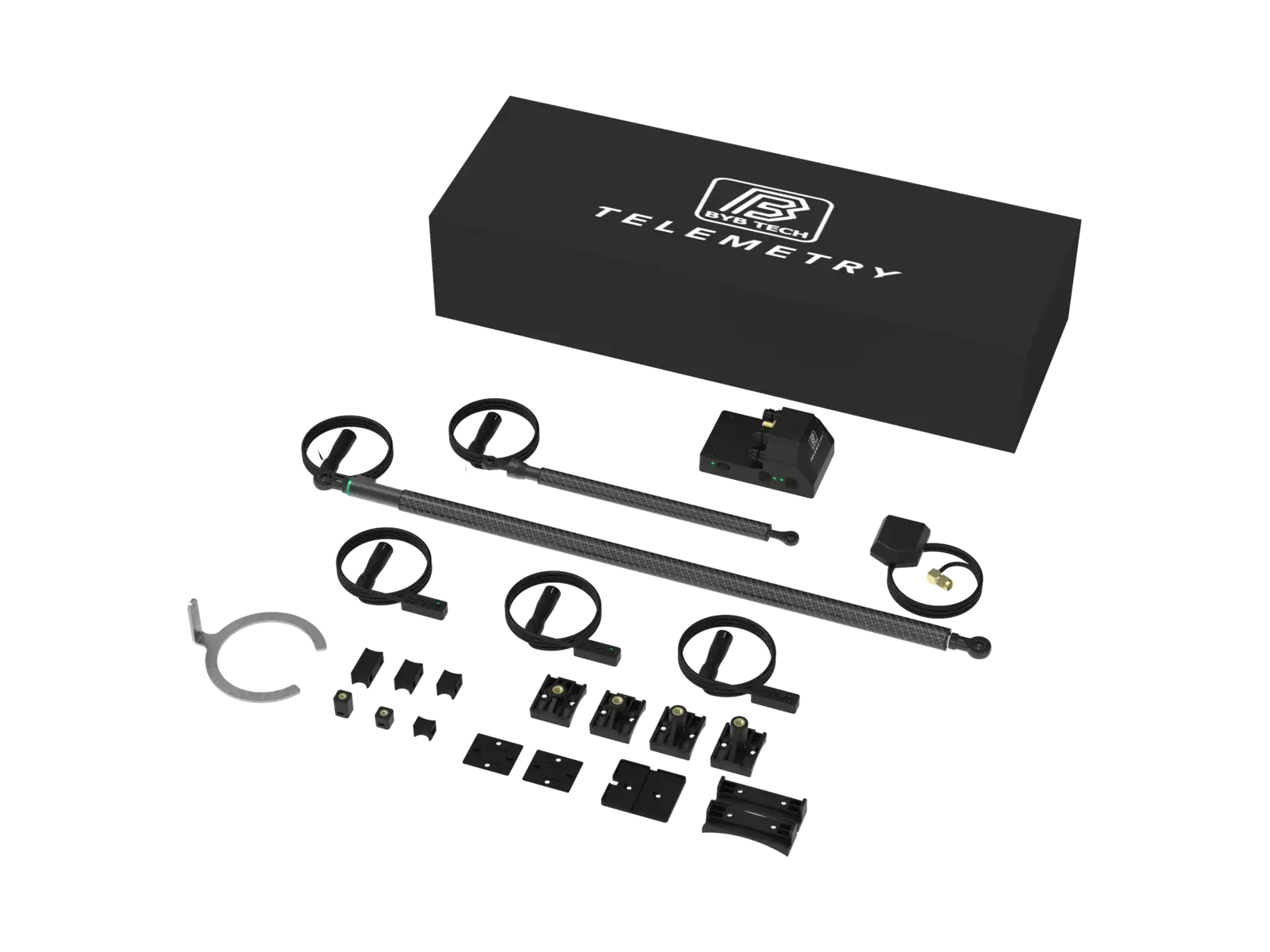

The Telemetry V3 Pro MX kit from a second angle, the brackets and fasteners laid out in rows beneath the sensors. — The same contents from the other side.

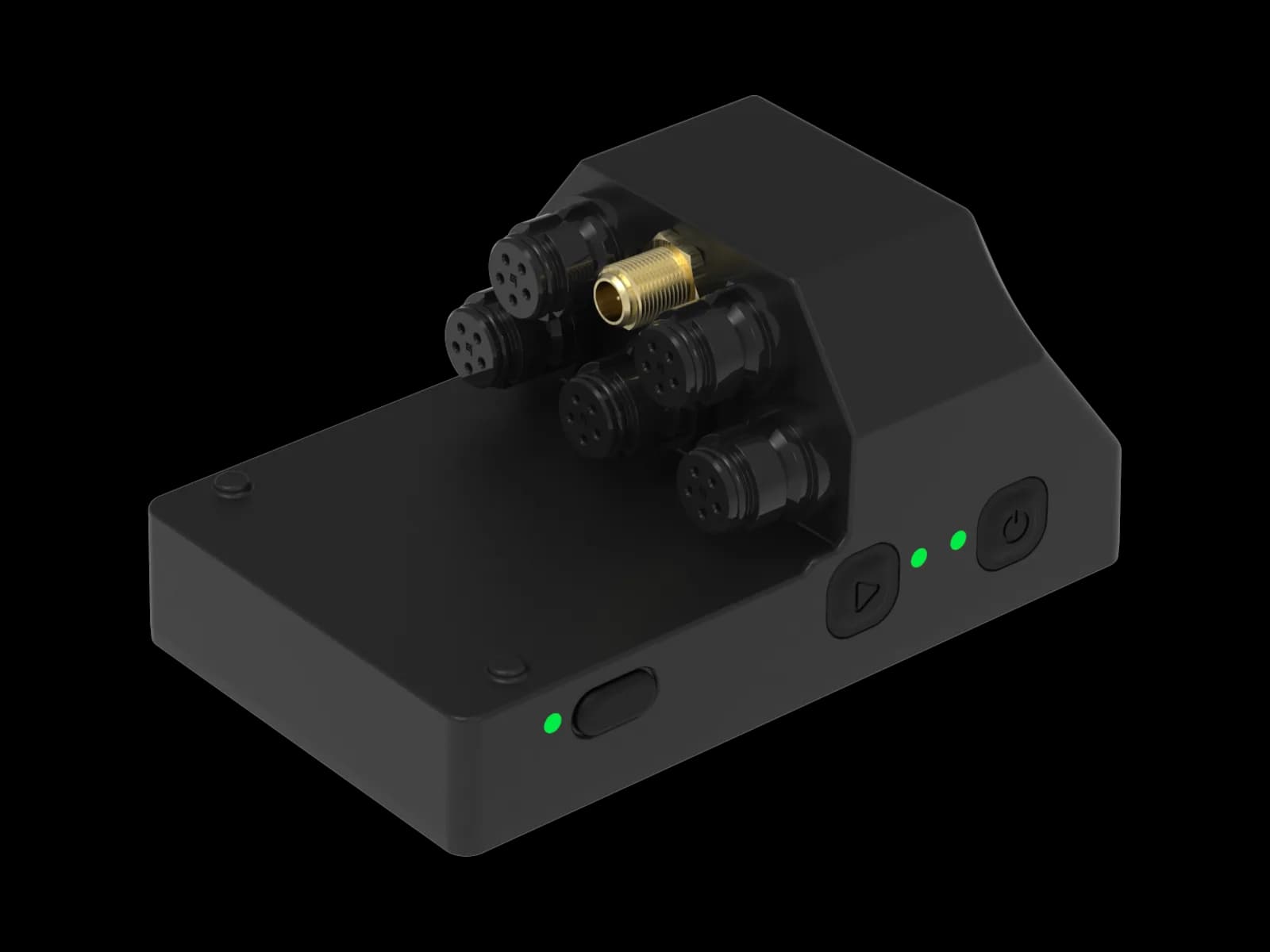

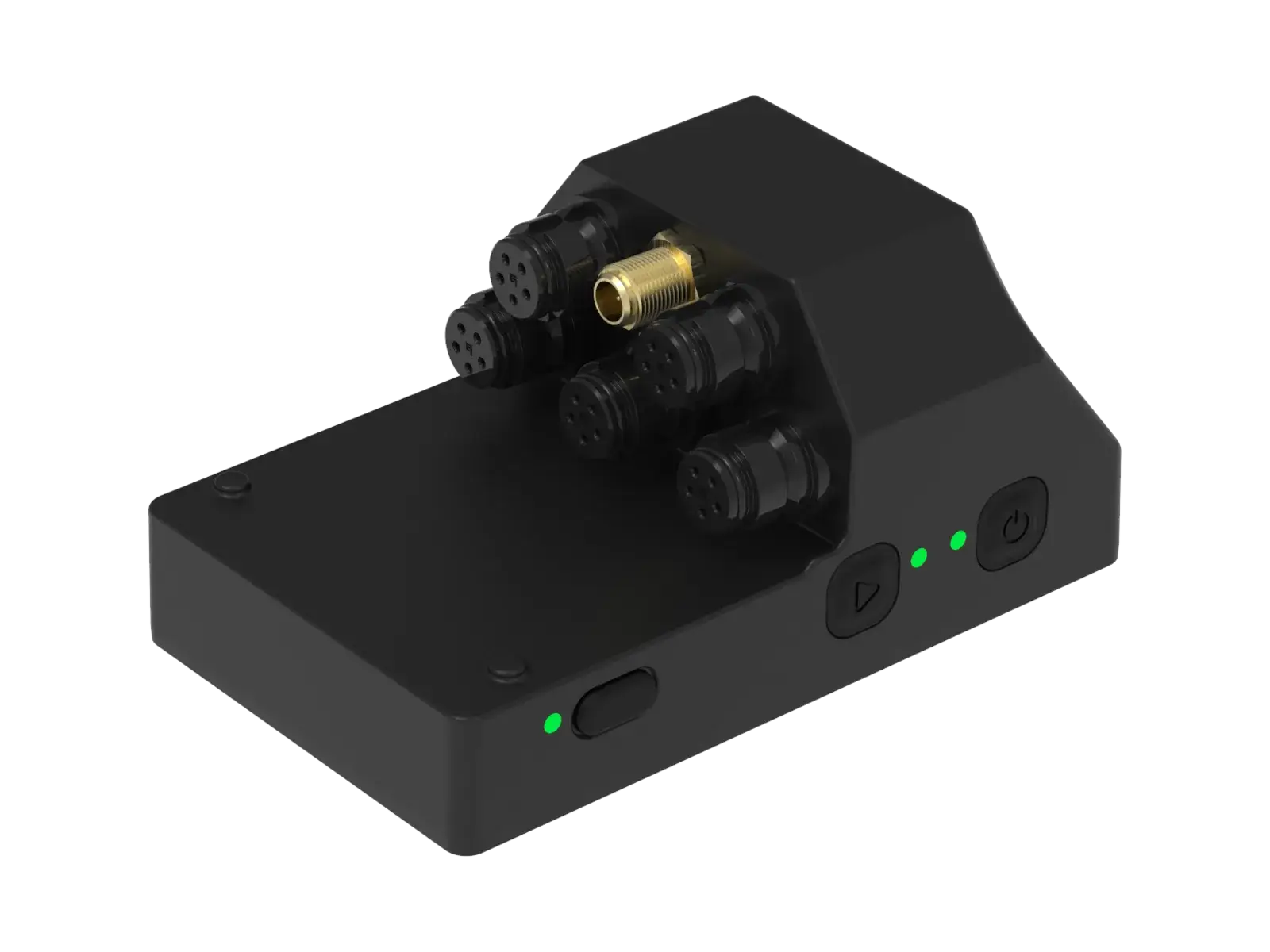

The Telemetry V3 Pro acquisition unit: a wedge-shaped black body with a bank of circular screw-lock sensor connectors around a gold coaxial antenna socket, a triangular record button, a power button and green status lights. — The Pro acquisition unit this kit is built around.

About this product

BYB Telemetry V3 Pro is a suspension data acquisition system that records five channels at 1000 Hz, so riders and workshops base setup decisions on data rather than feel.

Install fast, ride immediately, then download and analyze runs in PC software + smartphone app to compare settings across sessions.

A motocross rider mid-air on a red race bike at a supercross, BYB Telemetry sensors fitted down both fork legs. — Telemetry V3 on the forks of a supercross bike, recording mid-race. Every bracket in the box is made for this kind of bike.

See where each sensor goes on a motocross bike

In the box

x1 Acquisition unit V3 Pro
x1 Fork 350 mm sensor (with protective carbon cover)
x1 Shock 150 mm sensor (with protective carbon cover)
x2 Digital brake sensors
x1 Wheel speed sensor
x1 GPS antenna
x1 Full set of MX mountings (metal and plastic)
PC software (Windows + MAC)
Smartphone app (iOS + Android)
No extra fees: regular updates included

Specifications

5 analog channels (customizable on request)
Standard sensors: Fork, Shock, Speed, Front brake, Rear brake
Available sensors: 100/200 g accelerometers, Pressure, Temperature, Steering and more
1000 Hz sampling rate
Built-in 6-axis IMU (3-axis accelerometer + 3-axis gyroscope)
Built-in GPS (25 Hz, fast update rate)
Wireless compatibility: heart rate and power meter sensors
BYB Chrono: compatible with external triggers
Export: raw data export (CSV)
Waterproof, compact (40x50x80 mm) and lightweight (80 g)
Software (Mac and Windows) + Smartphone app (iOS and Android)

A BYB Telemetry linear sensor fitted down the leg of a red motocross fork, its upper clamp on the fork guard and its lower bracket at the axle clamp. — The 350 mm fork sensor, on the brackets from the box. Both joints, one leg.

A BYB Telemetry linear sensor mounted alongside the coil shock of a motocross bike, its carbon-covered body running parallel to the spring. — The 150 mm shock sensor, carbon cover fitted, mounted alongside the shock.

A BYB Telemetry acquisition unit mounted at the triple clamp of a motocross bike, its wiring running down behind the fork leg. — The 80 g acquisition unit at the triple clamp. Every sensor plugs in here.

The software and the app

The BYB Telemetry desktop software open on a laptop, beside the phone app on a smartphone. — Both are included with the kit — Mac and Windows for the analysis, iOS and Android for pulling a run off the bike.

Every analysis view in the software

After you pay

Software updates: Included, with no subscription — both the desktop software and the phone app.
