Telemetry V3 Pro

3.199,00 €

VAT Excluded

BYB Telemetry V3 Pro is a professional data acquisition system designed to base suspension setup on data instead of feelings.

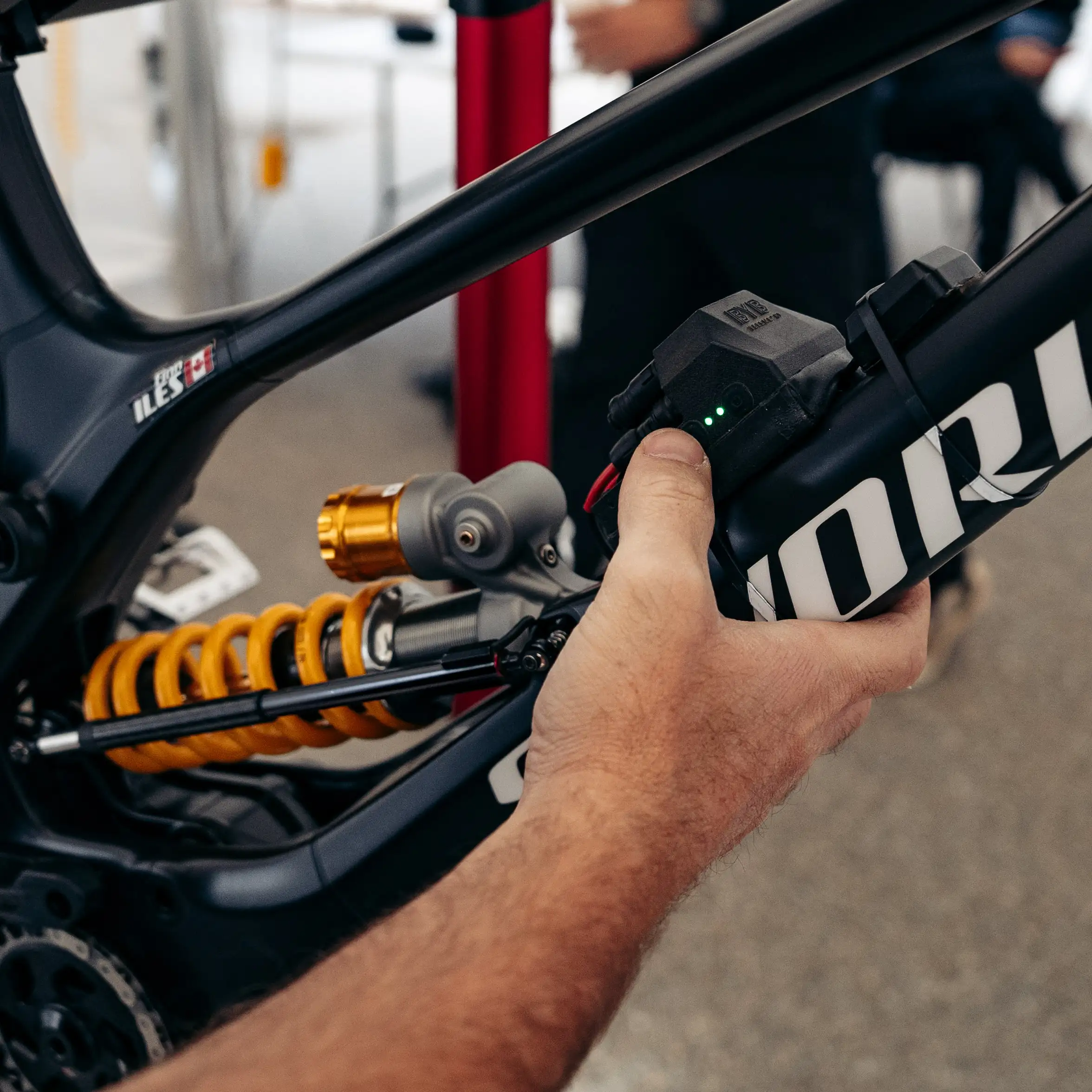

It's composed of an acquisition unit, a complete set of high-precision sensors, a complete set of mountings, a smartphone app, and PC software.

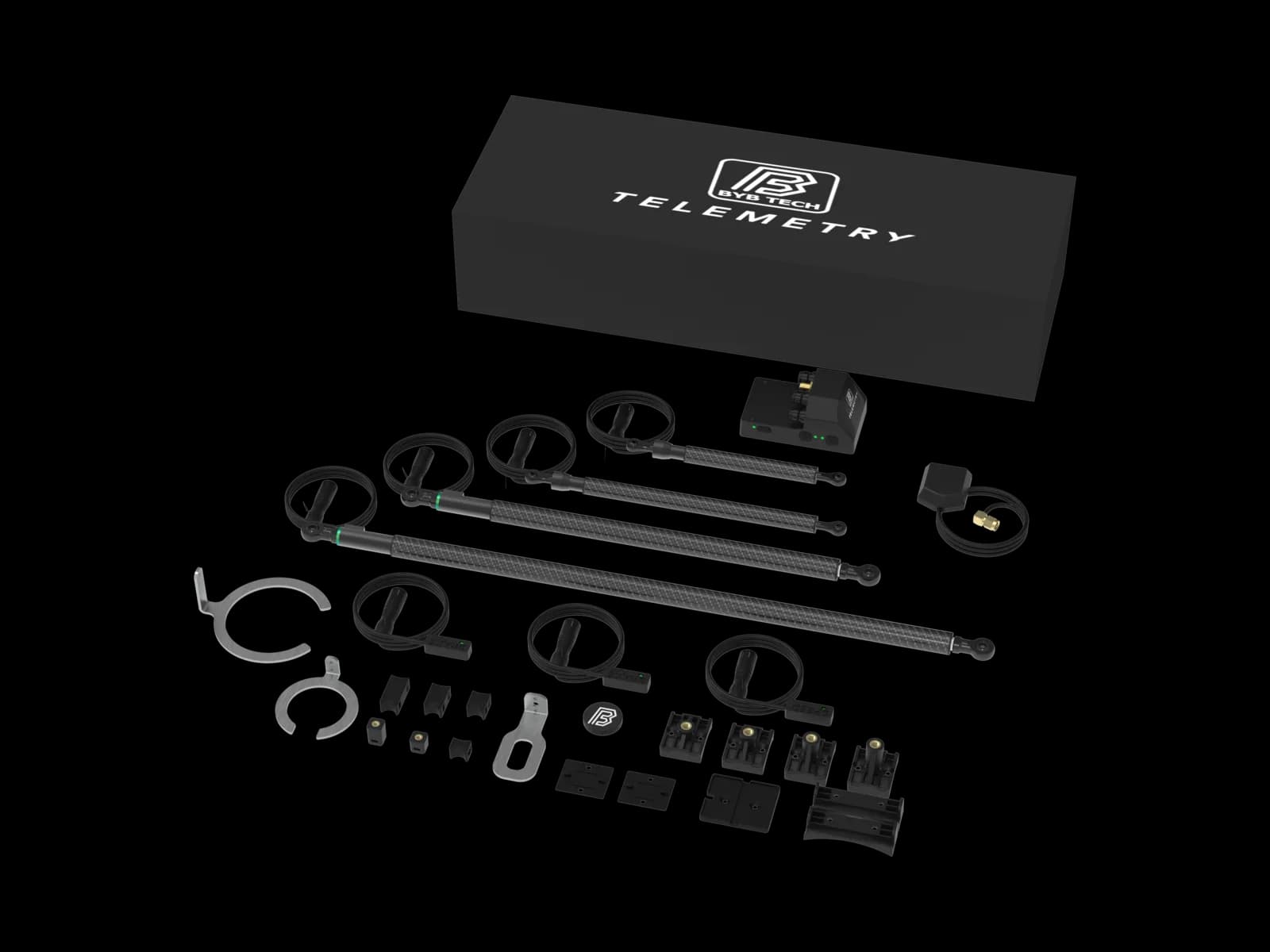

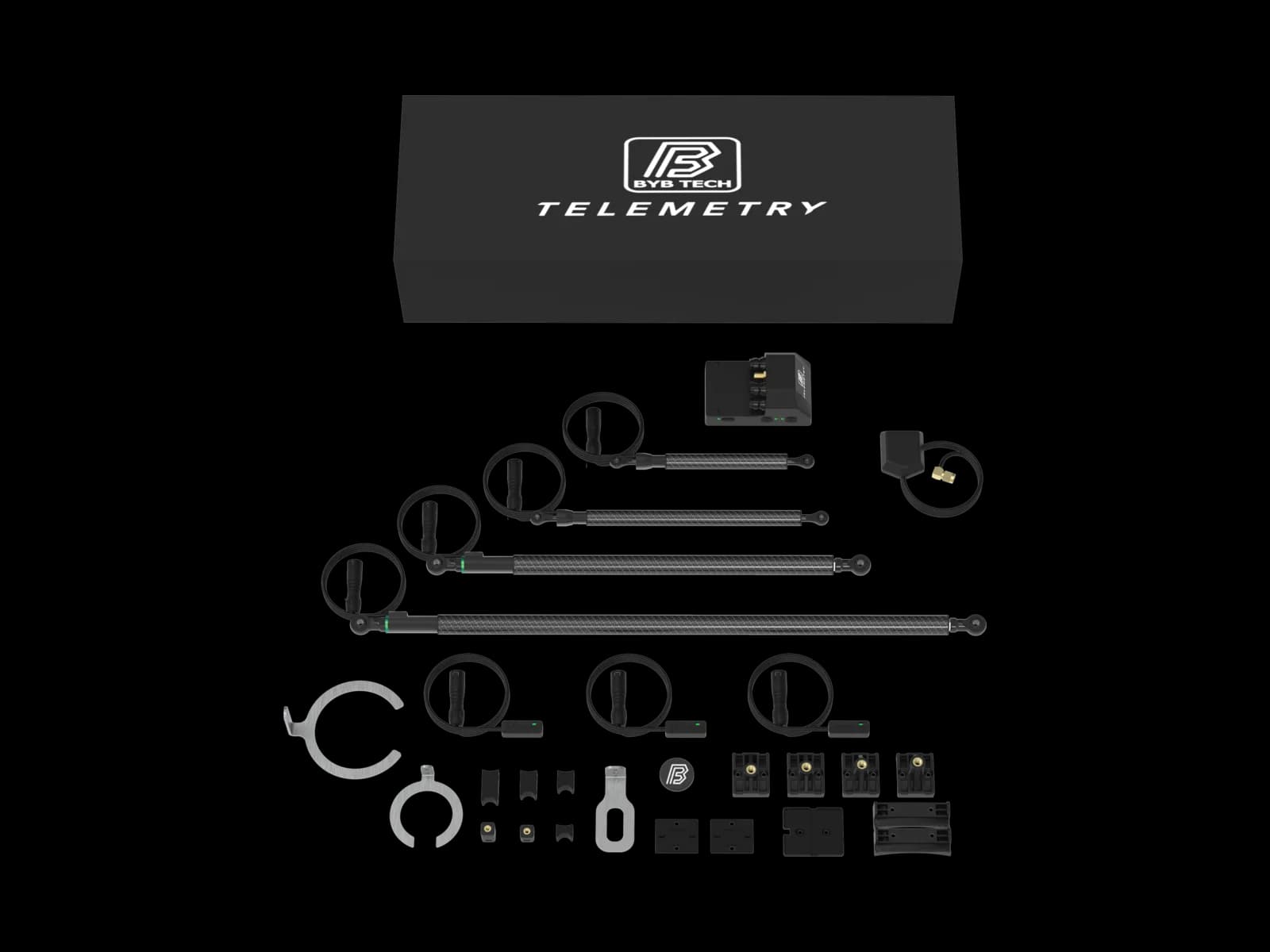

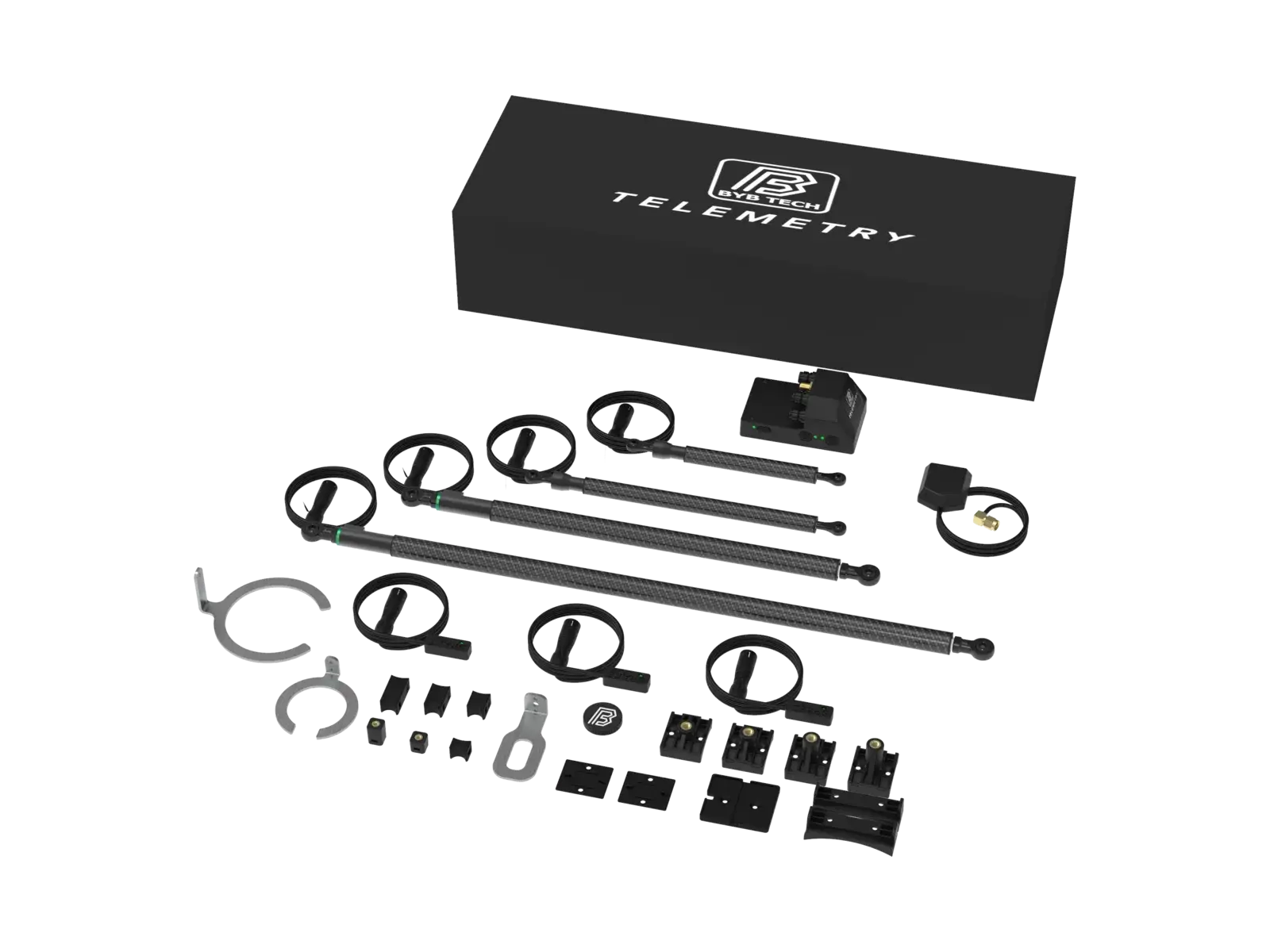

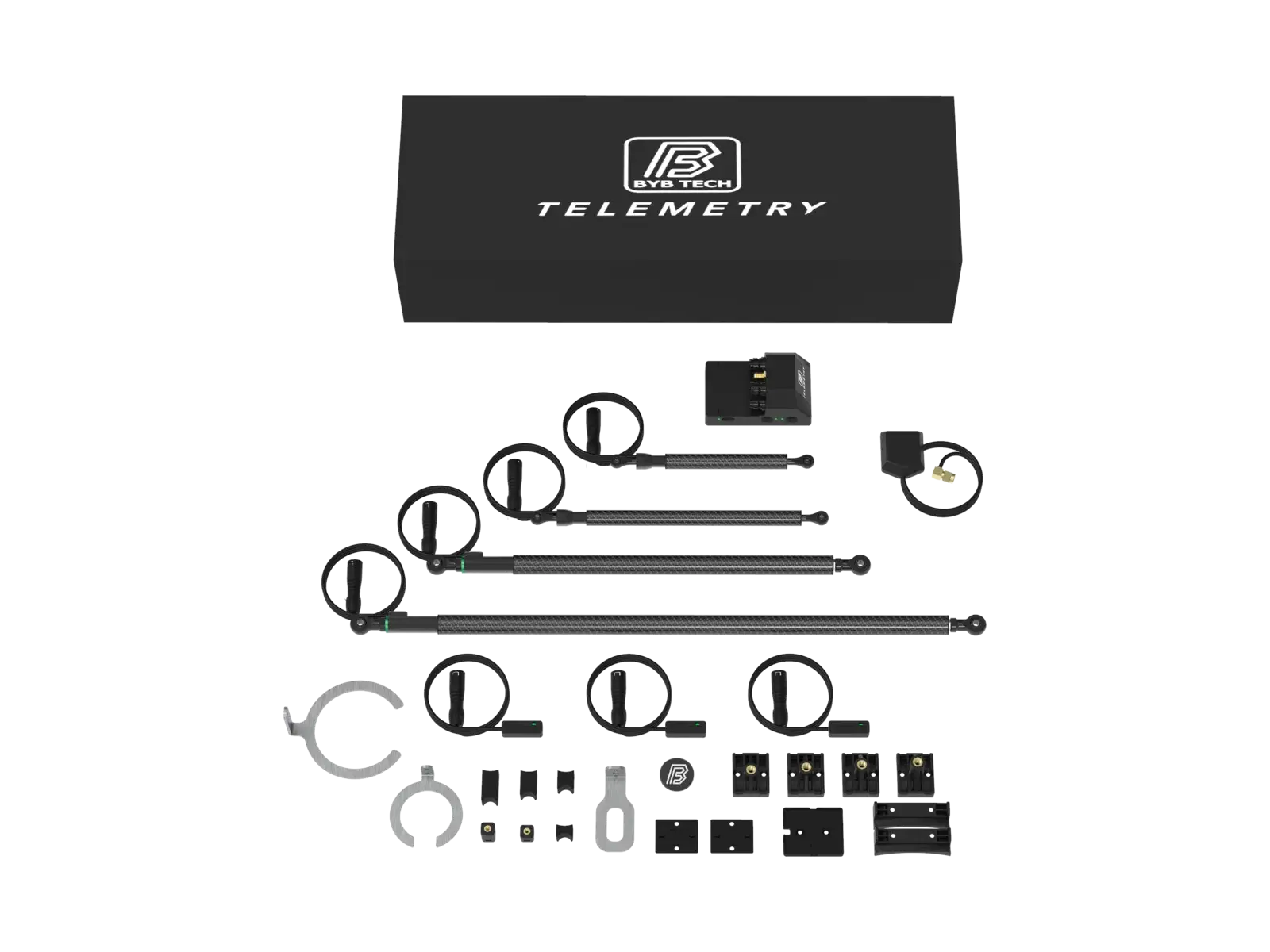

The MTB - MX kit comes with:

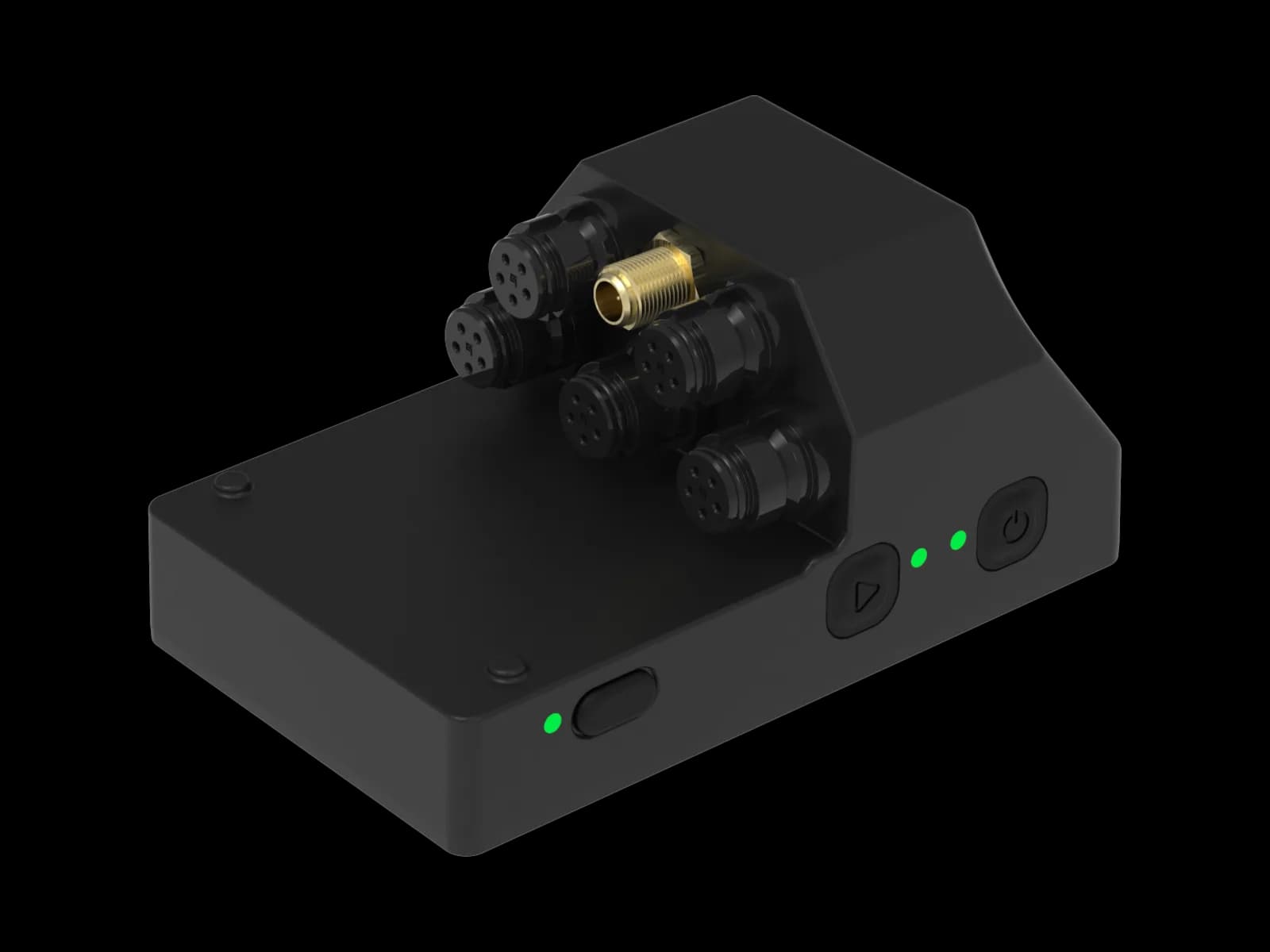

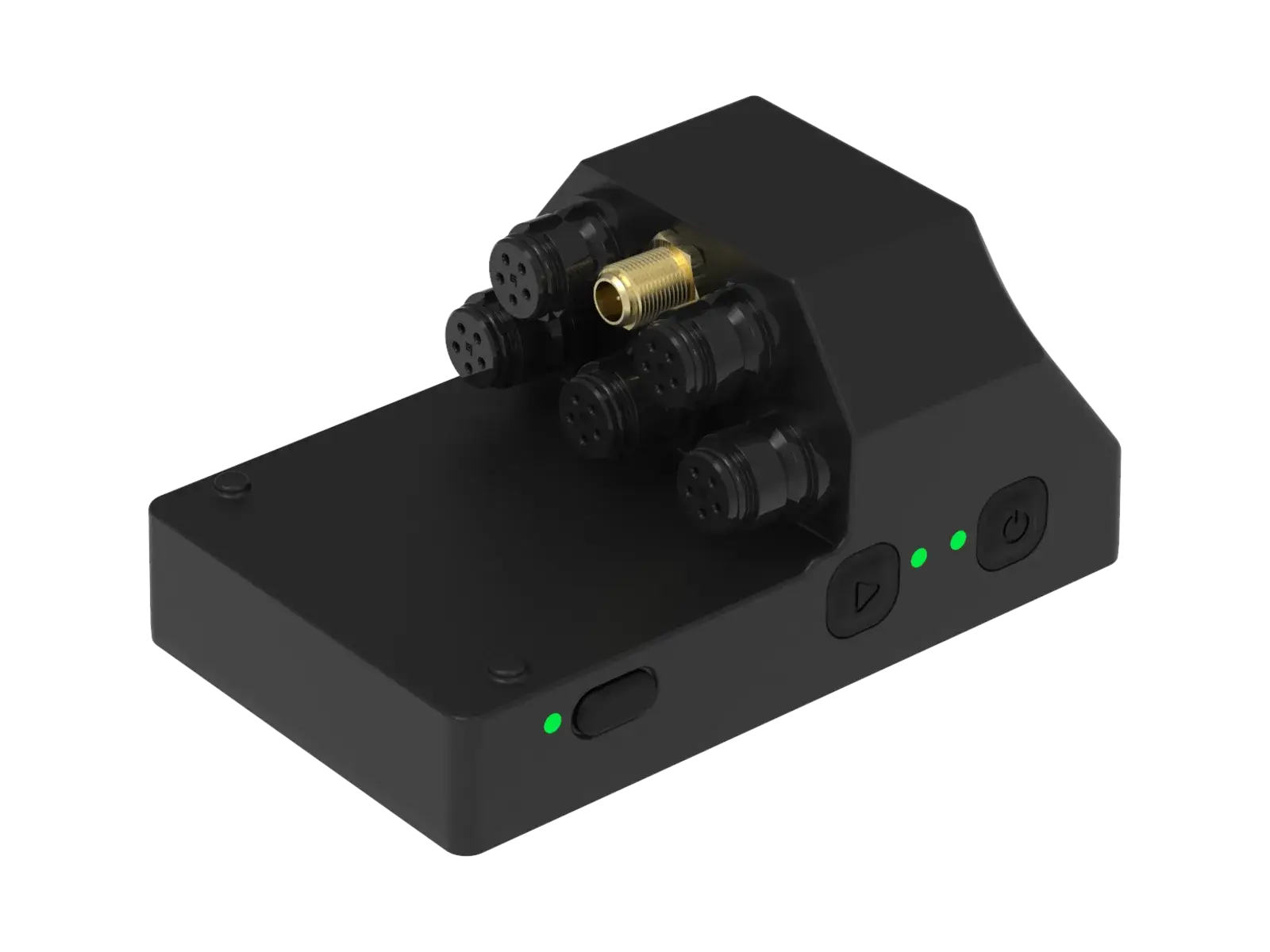

• x1 Acquisition unit V3 Pro
• x1 Fork 210mm sensor + 1 Fork 350mm sensor (including protective carbon cover)
• x1 Shock 80mm sensor + 1 Shock 150mm sensor (including protective carbon cover)
• x2 Digital brake sensors
• x1 Wheel speed sensor
• x1 GPS antenna
• x1 Full set of MTB mountings (metal and plastic)
• x1 Full set of MX mountings (metal and plastic)
• Software (Windows and MAC)

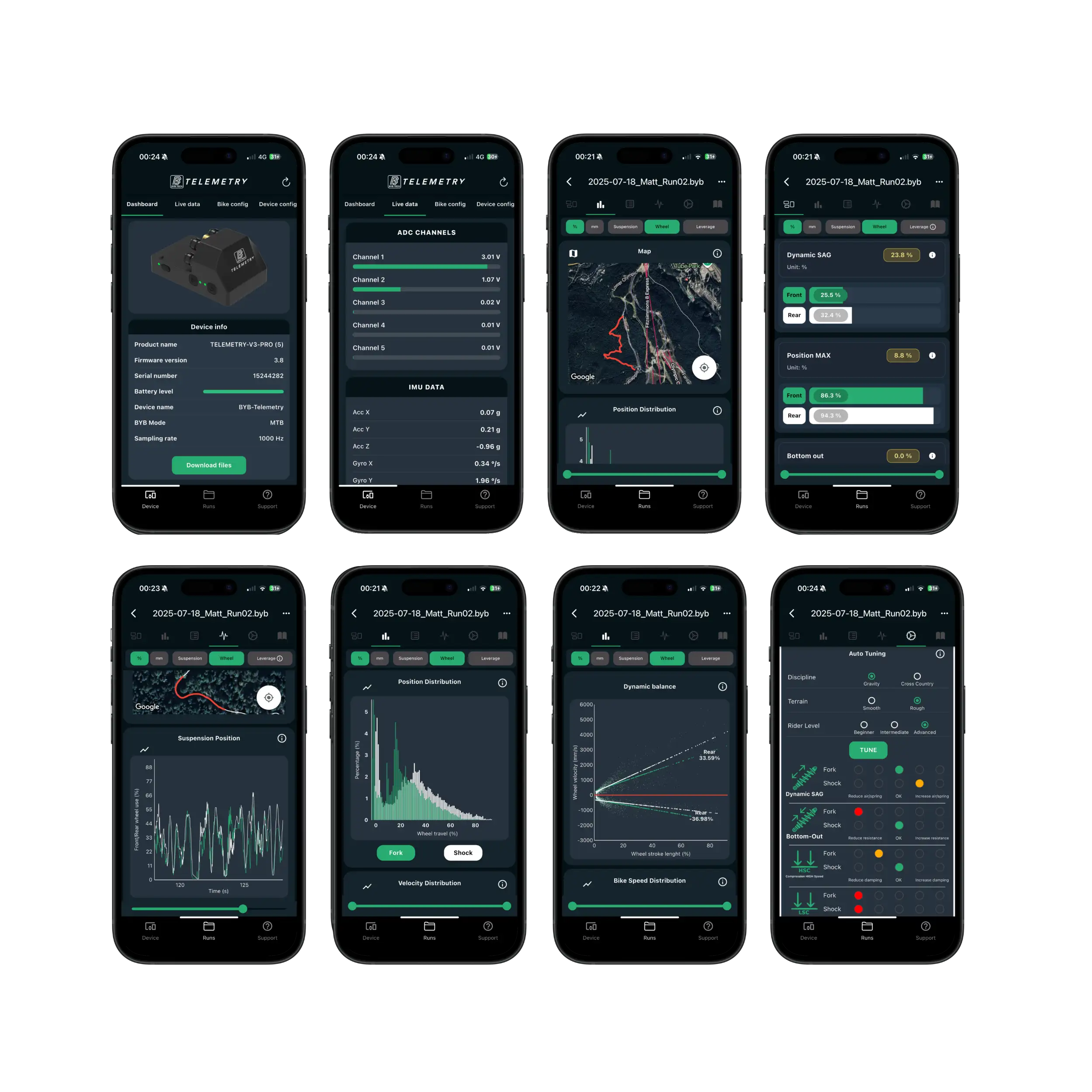

• Smartphone app (iOS and Android)
• No extra fees (includes regular updates)

Technical information

• 5 channels (customizable on request)
• Standard sensors: Fork, Shock, Speed, Front brake, Rear brake
• Other sensors: 100/200g accelerometers, Pressure, Temperature, Steering and more
• 1000 Hz sampling rate
• Built-in 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
• Built-in GPS (25 Hz, fast update rate)
• Compatible with heart rate and power meter wireless sensors
• Compatible with BYB Chrono external triggers
• Waterproof
• Compact (40x50x80 mm)
• Lightweight (80 g)
• Customizable

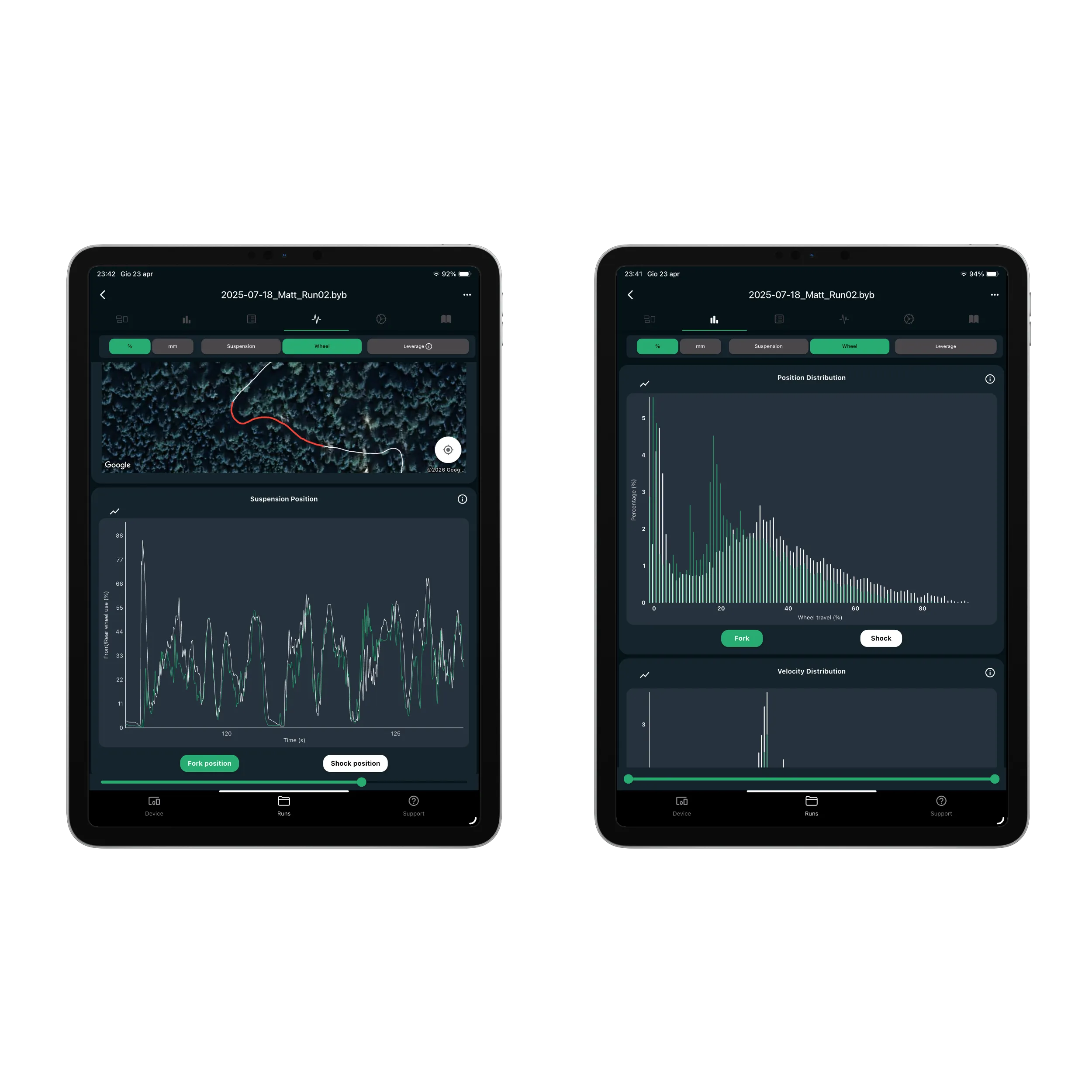

• Software (Mac and Windows)
• Smartphone app (iOS and Android)
• Raw data export as CSV file

Datasheets

Acquisition unit - Fork sensor - Shock sensor - Brake sensor (digital) - Brake sensor (analog) - Speed sensor

Shipping

The product is shipped worldwide.

Pre-order

Delivery times are between 4-8 weeks, according to the order number received. If you're in a hurry, contact us via email: info@bybtech.it

More informations are available here

All prices are without VATs. The VATs are automatically added during the checkout process.
The indicated price does not include import taxes of various countries (if applicable).
