Data acquisition systems

Telemetry V3 Pro MTB

Name: Telemetry V3 Pro MTB
SKU: telemetry-v3-pro-mtb
Price: 2799.00 EUR
Availability: InStock

2.799,00 € excl. VAT

VAT and delivery are calculated at checkout, once BYB Tech knows where the order is going.

Discipline

Delivery: Starting from 9,00 €

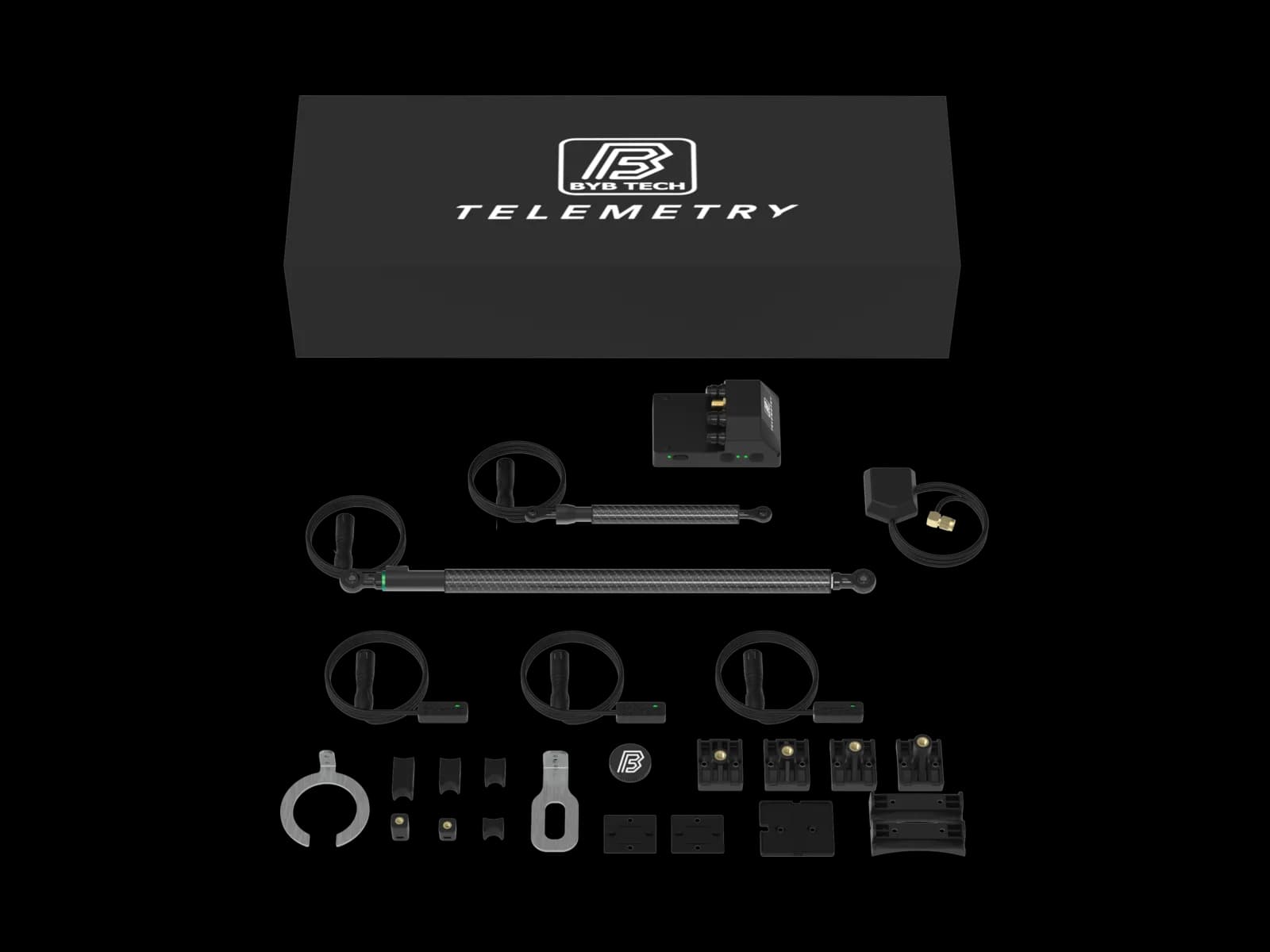

The Telemetry V3 Pro MTB kit laid out flat: the printed BYB Tech Telemetry case, a long and a short linear sensor, the acquisition unit's cradle, a GPS antenna, and the fork and shock brackets, shims and fasteners that fit a mountain bike. — Everything in the MTB box, arranged so each bracket and fastener can be counted.

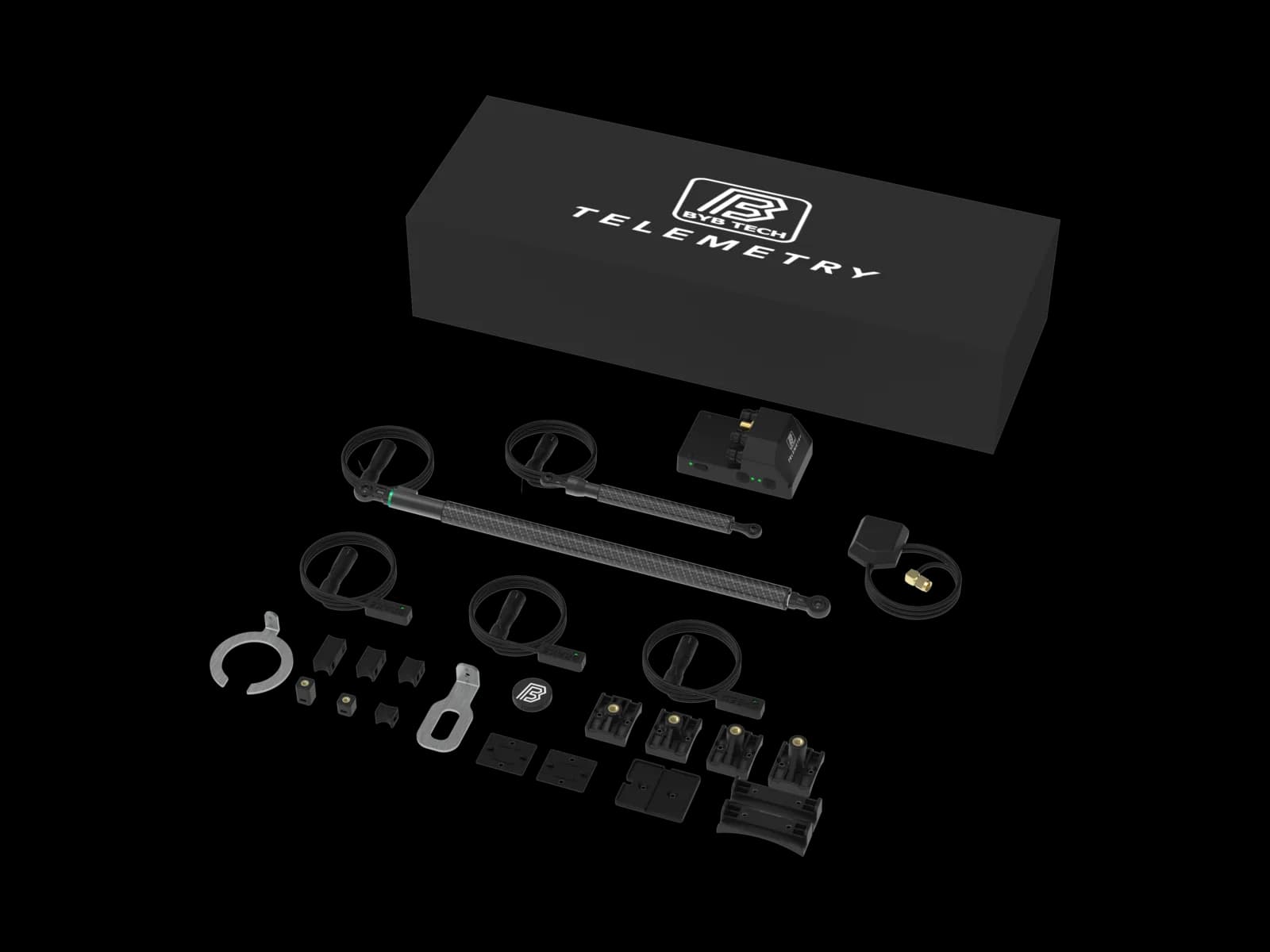

The Telemetry V3 Pro MTB kit from a second angle, with the mounting hardware spread out below the two sensors. — The same contents from the other side.

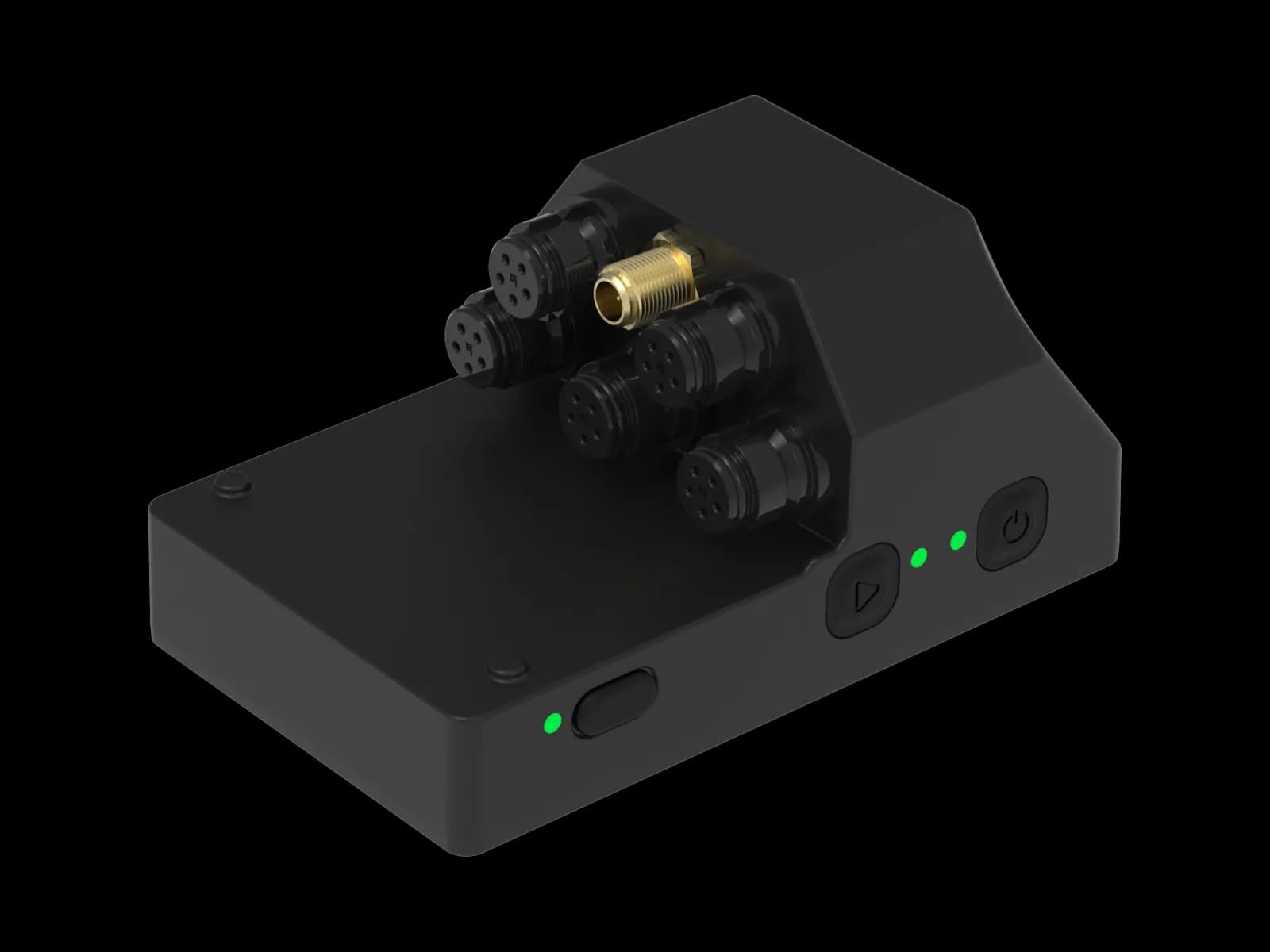

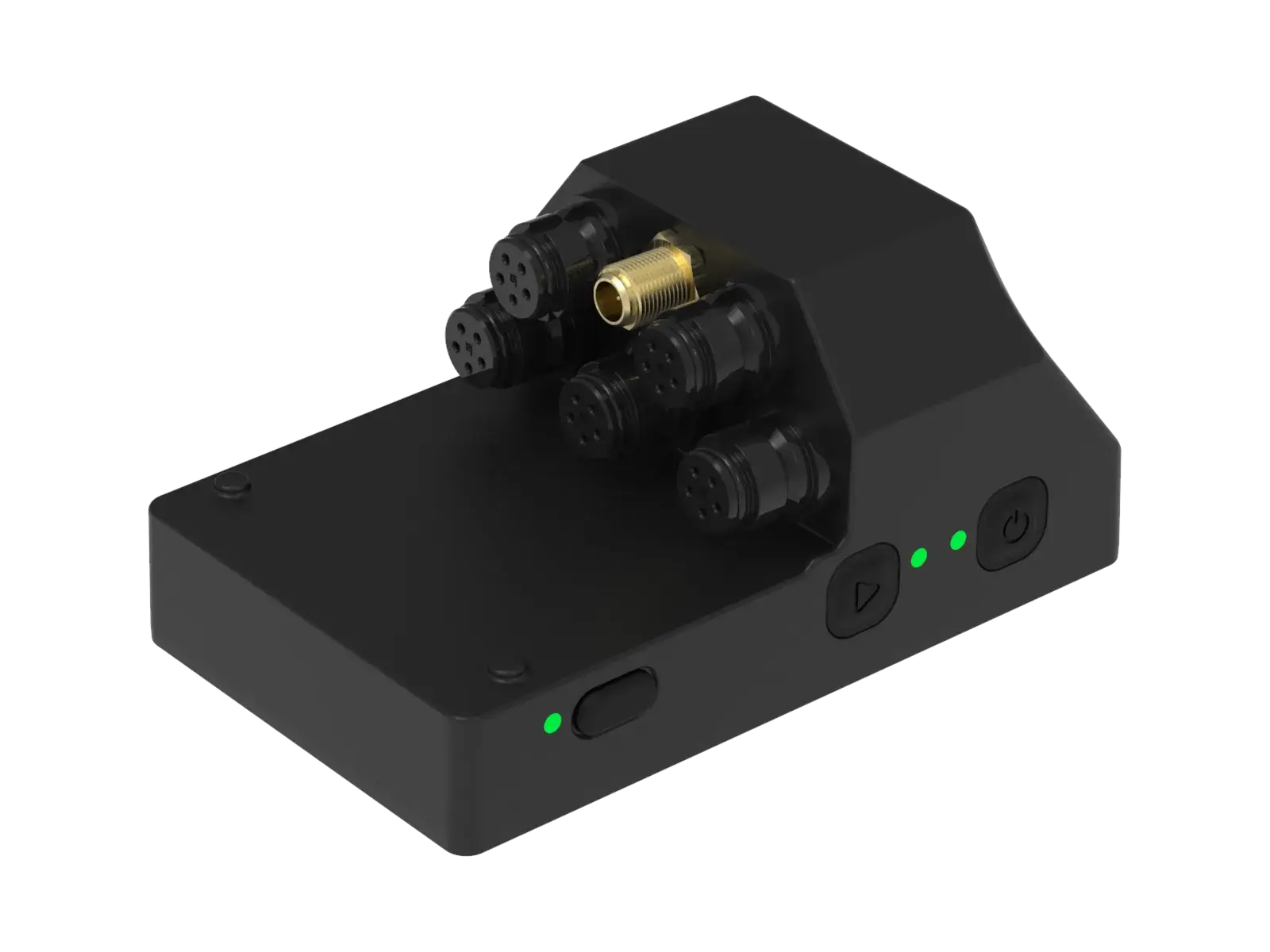

The Telemetry V3 Pro acquisition unit: a wedge-shaped black body with a bank of circular screw-lock sensor connectors around a gold coaxial antenna socket, a triangular record button, a power button and green status lights. — The Pro acquisition unit this kit is built around.

About this product

BYB Telemetry V3 Pro is a suspension data acquisition system that records five channels at 1000 Hz, so riders and workshops base setup decisions on data rather than feel.

Install fast, ride immediately, then download and analyze runs in PC software + smartphone app to compare settings across sessions.

A downhill mountain bike being ridden over rocks on a race track, a BYB Telemetry acquisition unit mounted on the frame. — Telemetry V3 on a downhill bike, racing a World Cup track. Every bracket in the box is made for this kind of bike.

See where each sensor goes on a mountain bike

In the box

x1 Acquisition unit V3 Pro
x1 Fork 210 mm sensor (with protective carbon cover)
x1 Shock 80 mm sensor (with protective carbon cover)
x2 Digital brake sensors
x1 Wheel speed sensor
x1 GPS antenna
x1 Full set of MTB mountings (metal and plastic)
PC software (Windows + MAC)
Smartphone app (iOS + Android)
No extra fees: regular updates included

Specifications

5 analog channels (customizable on request)
Standard sensors: Fork, Shock, Speed, Front brake, Rear brake
Available sensors: 100/200 g accelerometers, Pressure, Temperature, Steering and more
1000 Hz sampling rate
Built-in 6-axis IMU (3-axis accelerometer + 3-axis gyroscope)
Built-in GPS (25 Hz, fast update rate)
Wireless compatibility: heart rate and power meter sensors
BYB Chrono: compatible with external triggers
Export: raw data export (CSV)
Waterproof, compact (40x50x80 mm) and lightweight (80 g)
Software (Mac and Windows) + Smartphone app (iOS and Android)

The upper mount of a BYB Telemetry fork sensor on a mountain bike fork crown, the ball joint and cable running down beside the stanchion. — The 210 mm fork sensor's upper joint. The whole sensor lifts off for travel.

A BYB Telemetry shock sensor fitted diagonally across the coil shock of a downhill mountain bike, between the linkage and the lower shock mount. — The 80 mm shock sensor across a coil. The same mount takes air or coil.

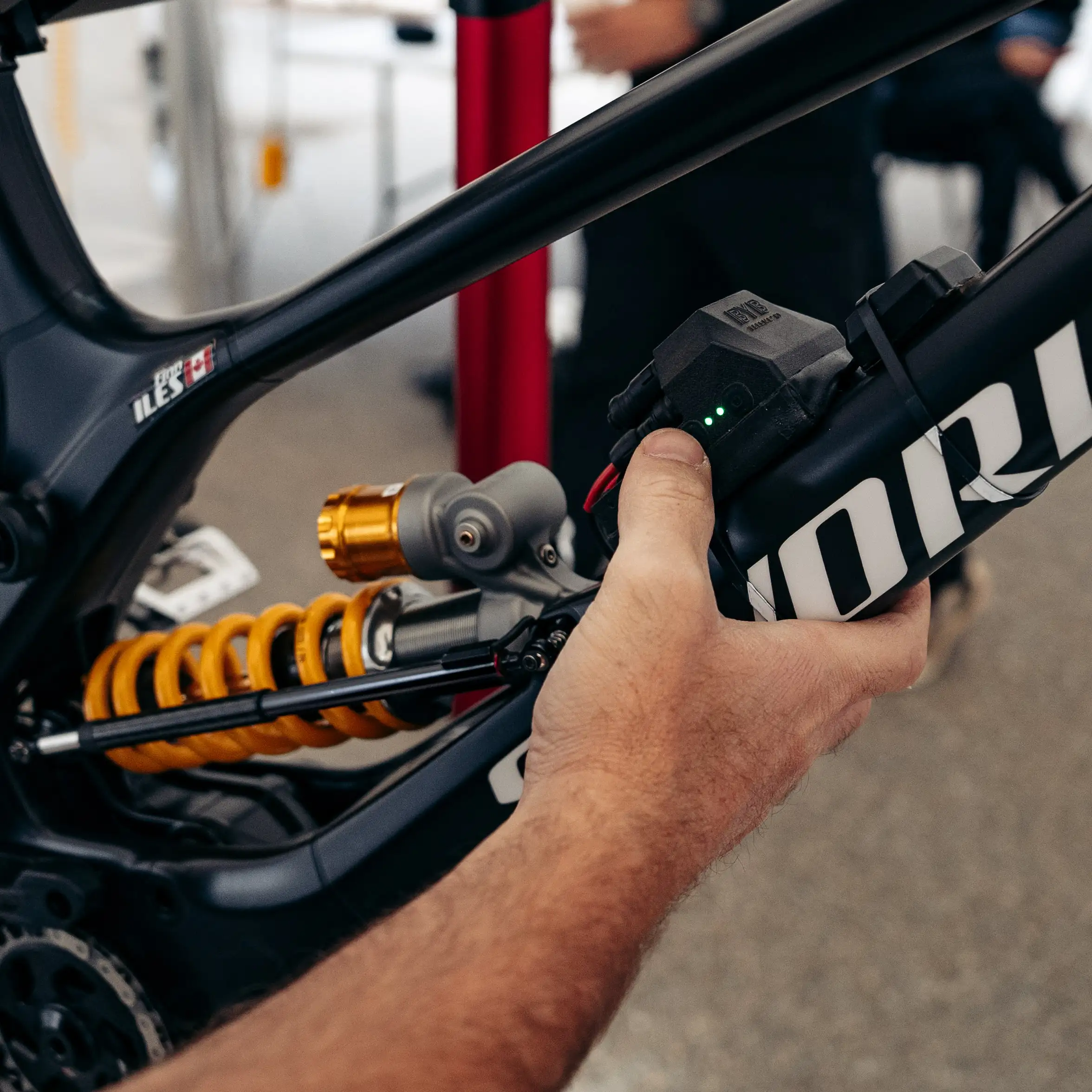

A mechanic's hands fitting a BYB Telemetry acquisition unit to the down tube of a downhill mountain bike. — The 80 g acquisition unit on the front triangle. Every sensor plugs in here.

The software and the app

The BYB Telemetry desktop software open on a laptop, beside the phone app on a smartphone. — Both are included with the kit — Mac and Windows for the analysis, iOS and Android for pulling a run off the bike.

Every analysis view in the software

After you pay

Software updates: Included, with no subscription — both the desktop software and the phone app.
