Data acquisition systems

Telemetry V3 MX

Name: Telemetry V3 MX
Brand: BYB Tech
SKU: telemetry-v3-mx
Price: 1399.00 EUR
Availability: InStock

1.399,00 € excl. VAT

VAT and delivery are calculated at checkout, once BYB Tech knows where the order is going.

Discipline

Delivery: Starting from 9,00 €

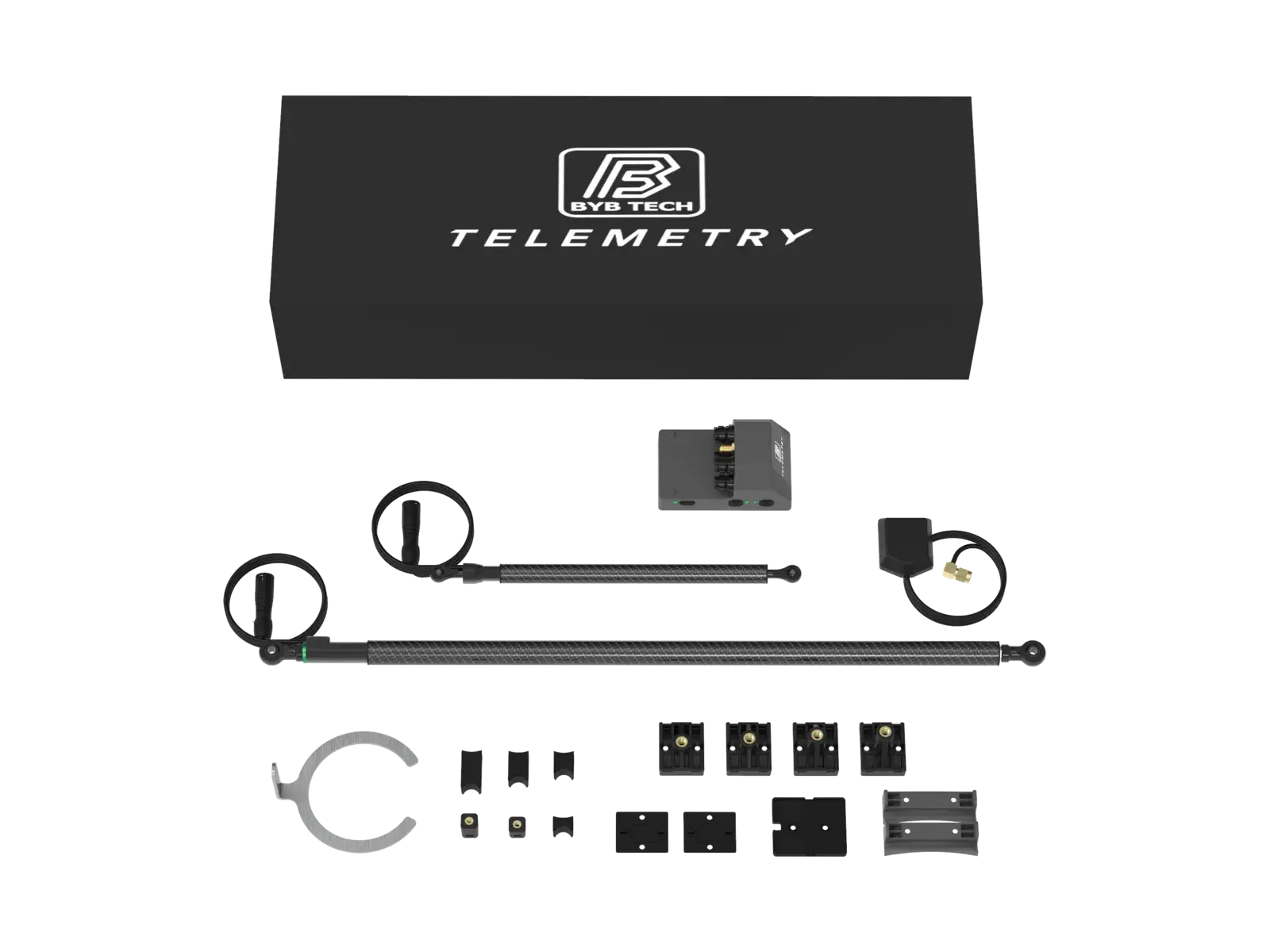

The Telemetry V3 MX kit laid out flat: the printed BYB Tech Telemetry case, a long and a short linear sensor, the acquisition unit's cradle, and the fork and shock brackets, shims and fasteners that fit a motocross bike. — Everything in the V3 MX box.

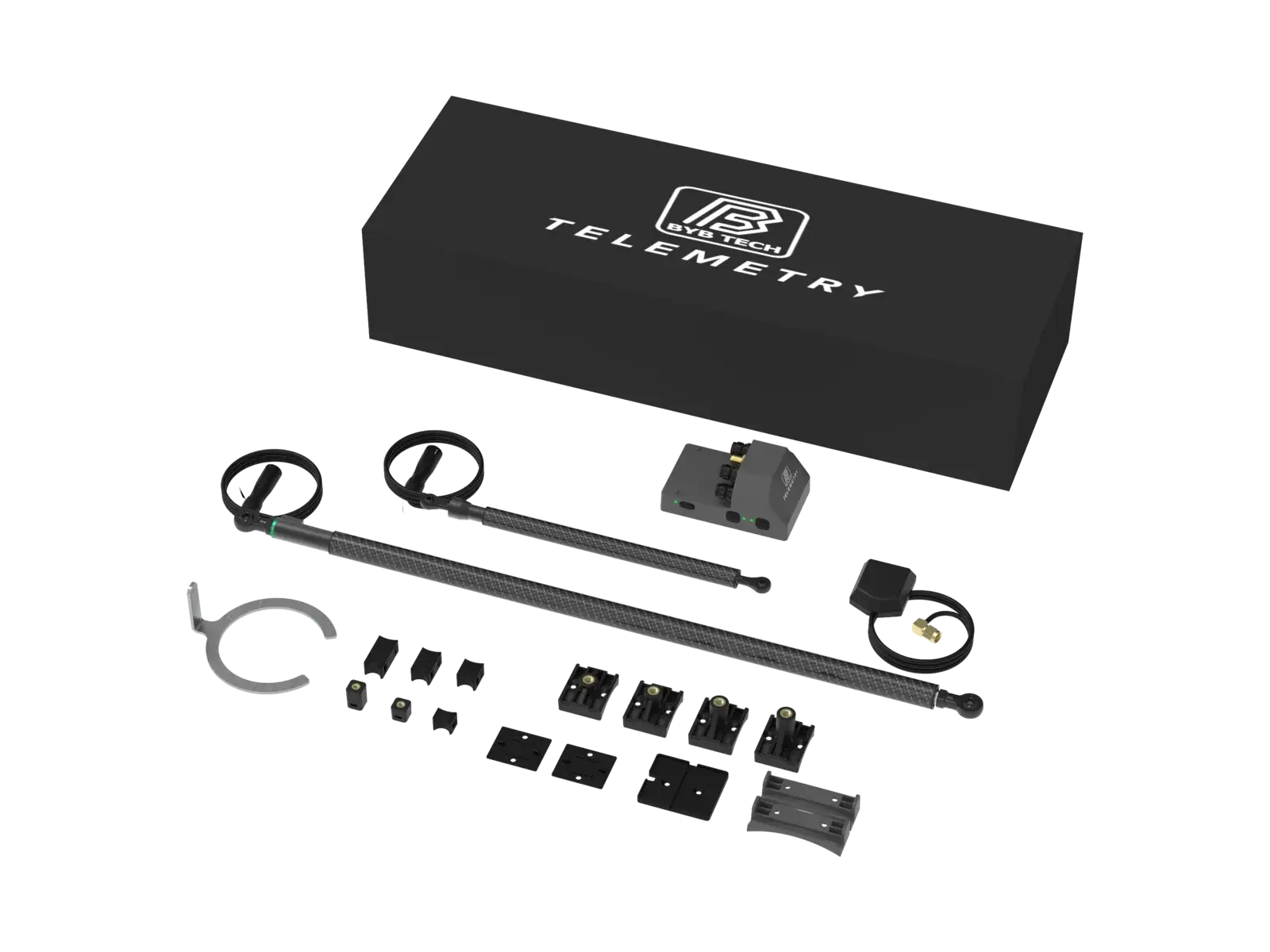

The Telemetry V3 MX kit from a second angle, with the brackets and fasteners laid out in rows. — The same contents from the other side.

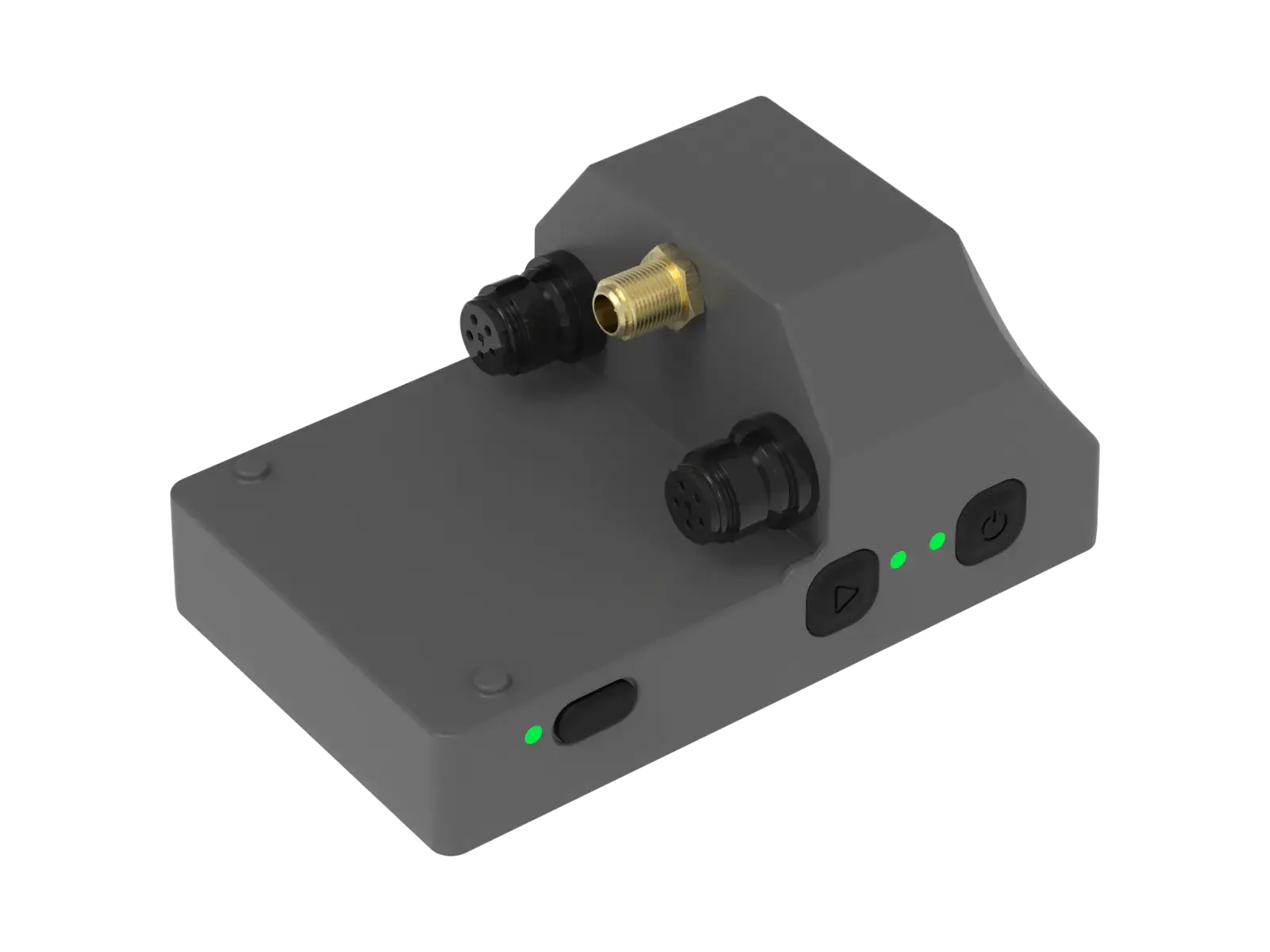

The Telemetry V3 acquisition unit: the same wedge-shaped body as the Pro but with a smaller connector bank — two circular screw-lock sensor connectors beside a gold coaxial antenna socket — a triangular record button, a power button and green status lights. — The V3 acquisition unit, with the smaller connector bank.

About this product

BYB Telemetry V3 is a suspension data acquisition system that records two channels at 500 Hz, so setup decisions rest on data rather than feel — at a more accessible level than V3 Pro.

Install fast, ride immediately, then download and analyze runs in PC software + smartphone app to compare settings across sessions.

A motocross rider mid-air on a red race bike at a supercross, BYB Telemetry sensors fitted down both fork legs. — Telemetry V3 on the forks of a supercross bike, recording mid-race. Every bracket in the box is made for this kind of bike.

See where each sensor goes on a motocross bike

In the box

x1 Acquisition unit V3
x1 Fork 350 mm sensor (with protective carbon cover)
x1 Shock 150 mm sensor (with protective carbon cover)
x1 GPS antenna
x1 Full set of MX mountings (metal and plastic)
PC software (Mac + Windows)
Smartphone app (iOS + Android)
Included features: stack view, suspension view, position distribution, velocity distribution, leverage, lap manager, summary, autotuning, notes

Specifications

2 analog channels
500 Hz sampling rate
MTB and MX modes
Built-in 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
Built-in GPS (25 Hz, fast update rate)
Auto-pause, snap-in connectors
Waterproof, compact (40x50x80 mm) and lightweight (80 g)

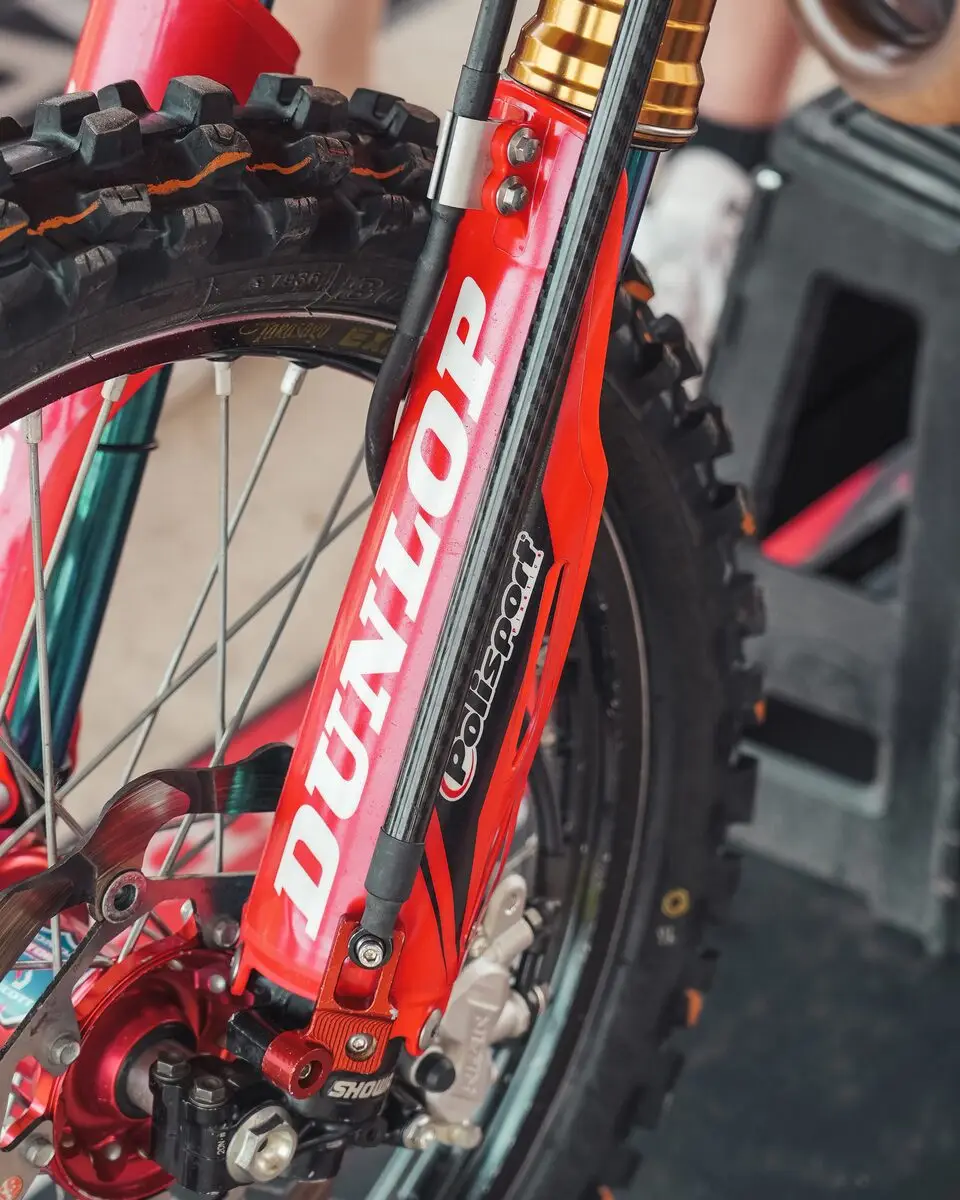

A BYB Telemetry linear sensor fitted down the leg of a red motocross fork, its upper clamp on the fork guard and its lower bracket at the axle clamp. — The 350 mm fork sensor, on the brackets from the box. Both joints, one leg.

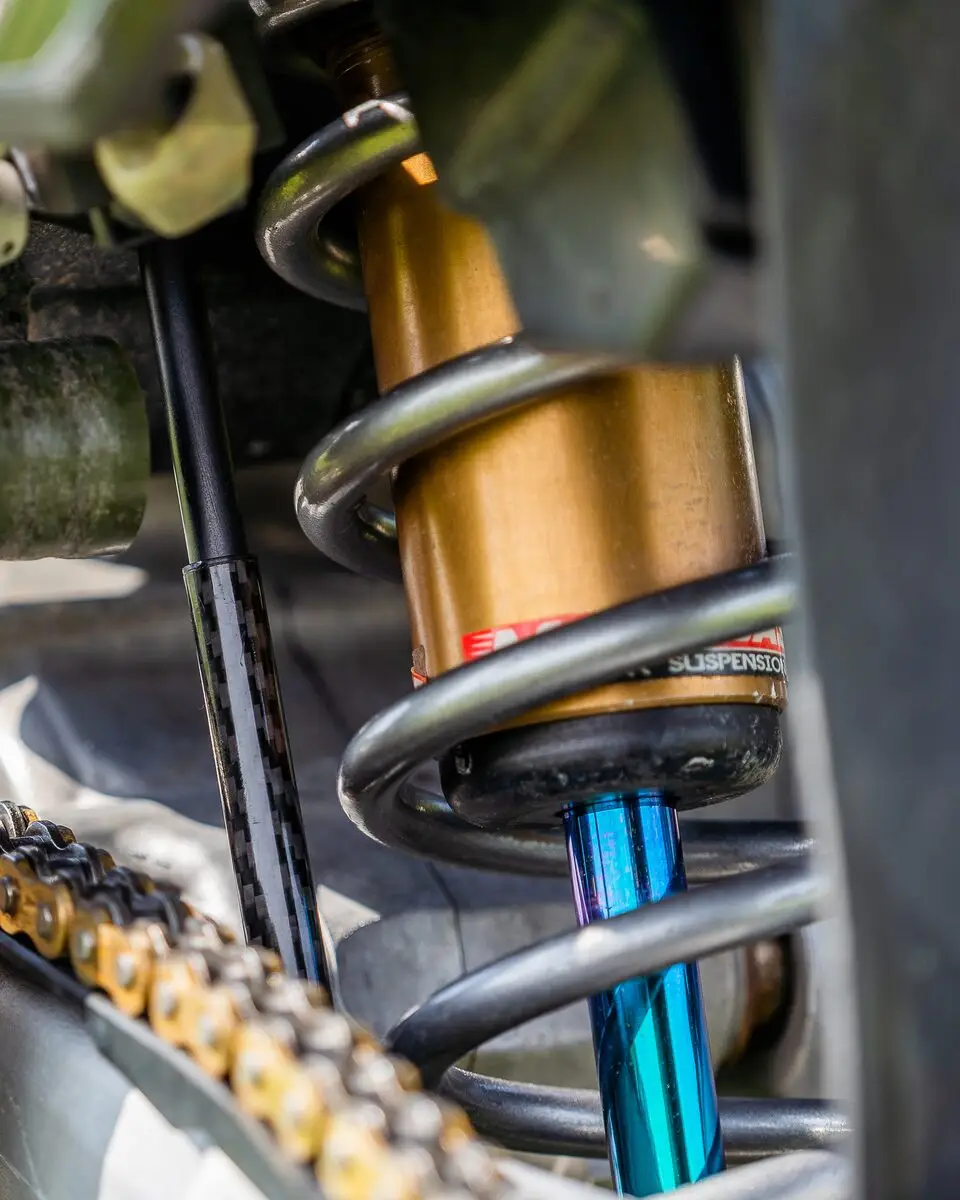

A BYB Telemetry linear sensor mounted alongside the coil shock of a motocross bike, its carbon-covered body running parallel to the spring. — The 150 mm shock sensor, carbon cover fitted, mounted alongside the shock.

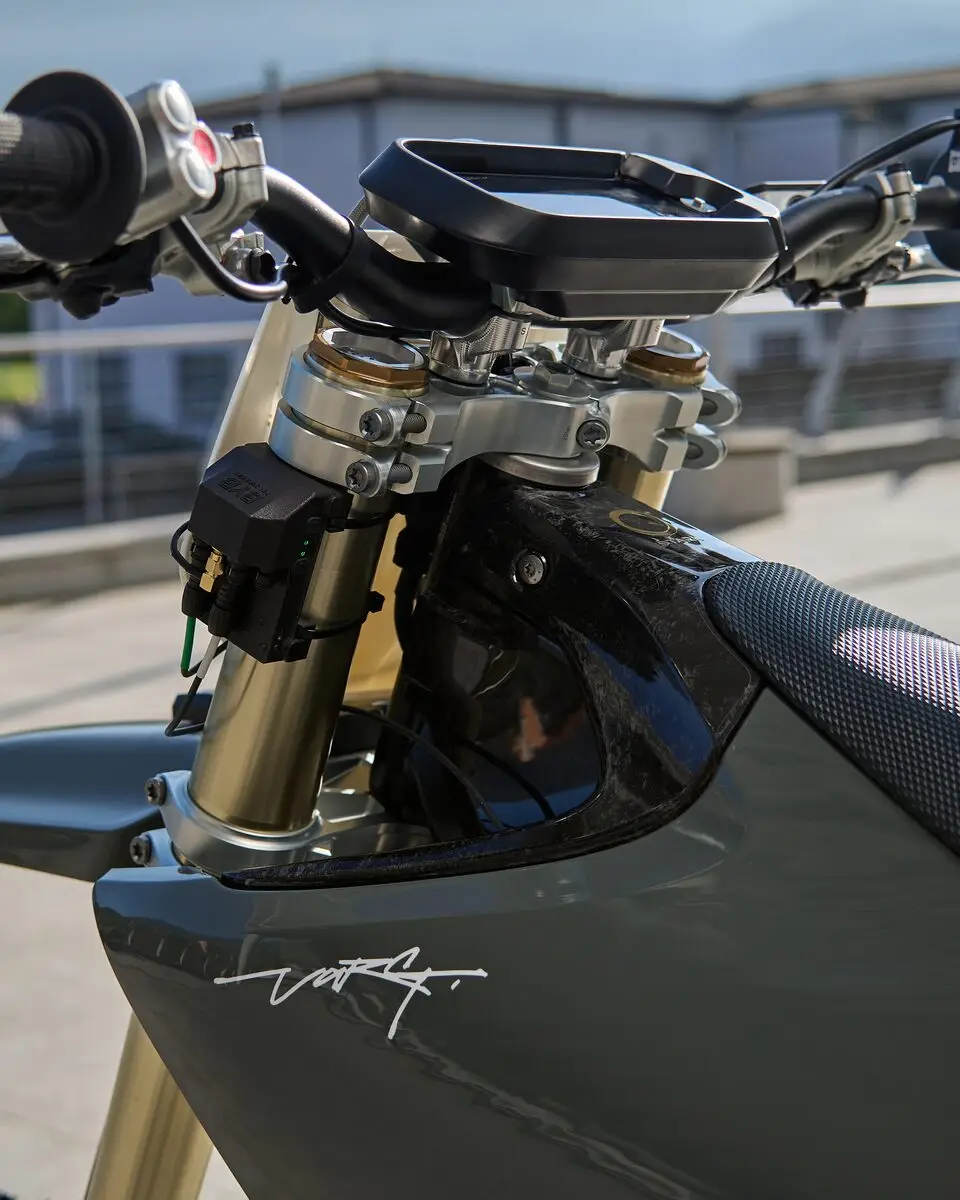

A BYB Telemetry acquisition unit mounted at the triple clamp of a motocross bike, its wiring running down behind the fork leg. — The 80 g acquisition unit at the triple clamp. Every sensor plugs in here.

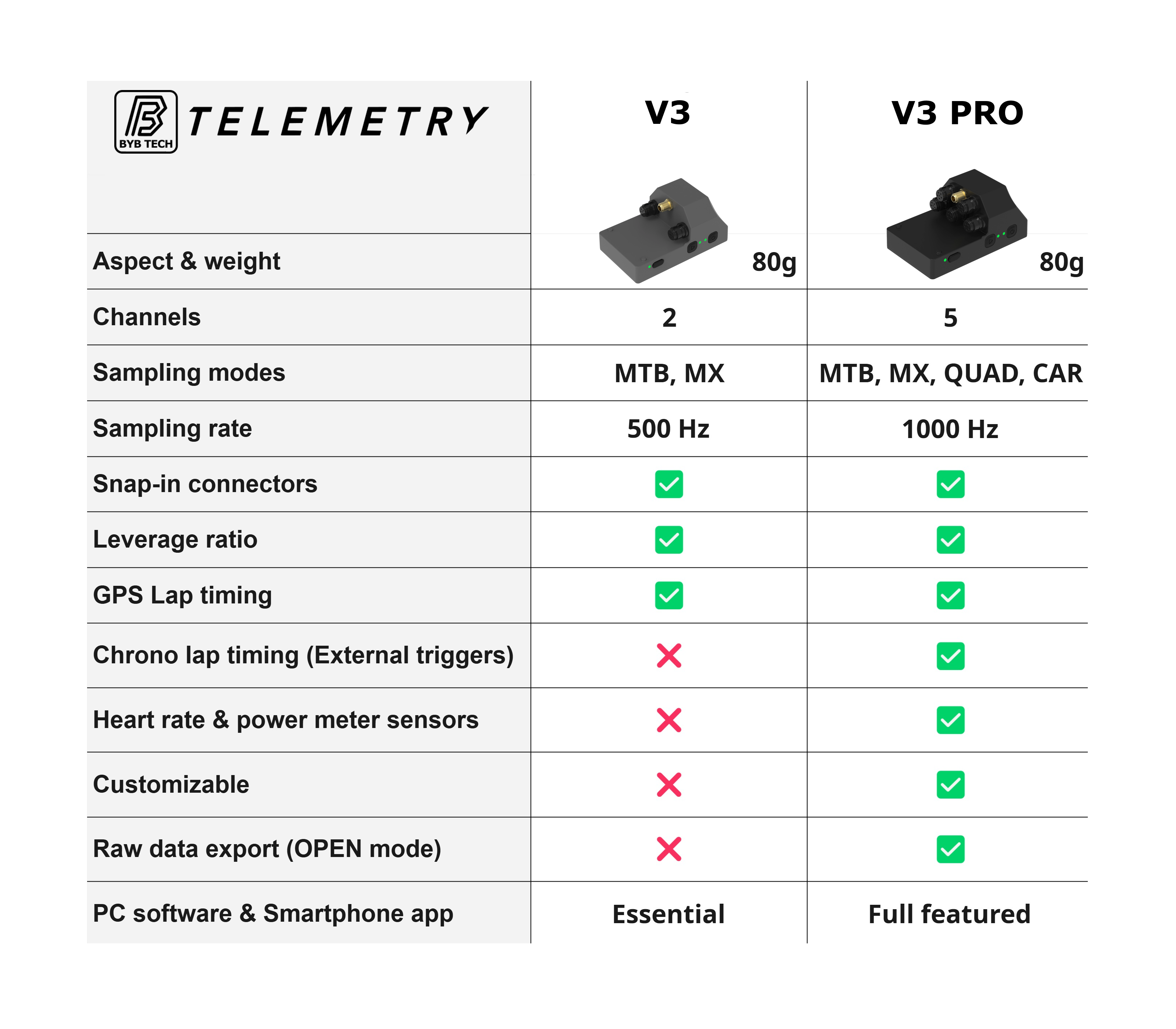

Need more channels?

Telemetry V3 Pro MX records five channels at 1000 Hz instead of two at 500 Hz, and adds brake and wheel-speed sensors.

See Telemetry V3 Pro MX

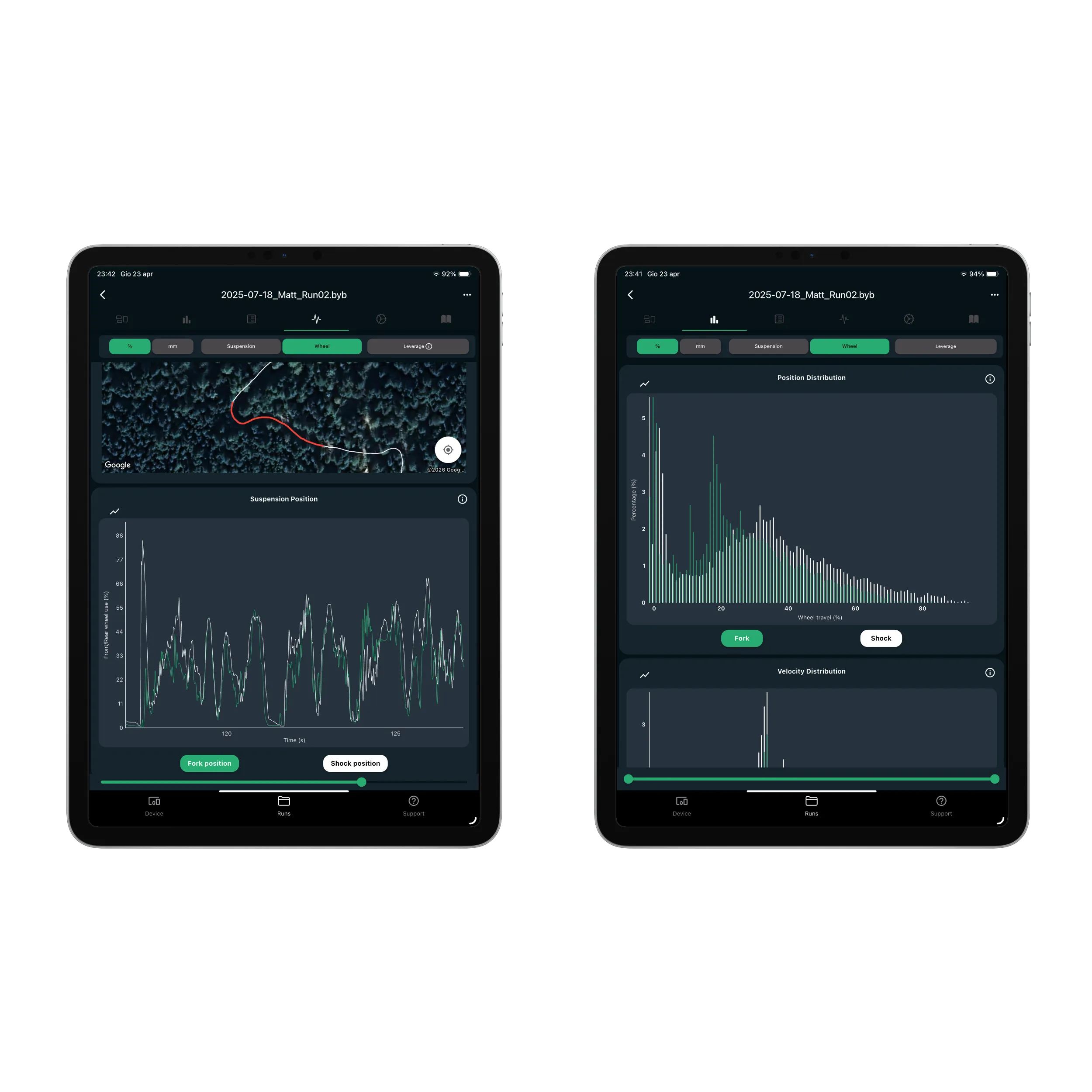

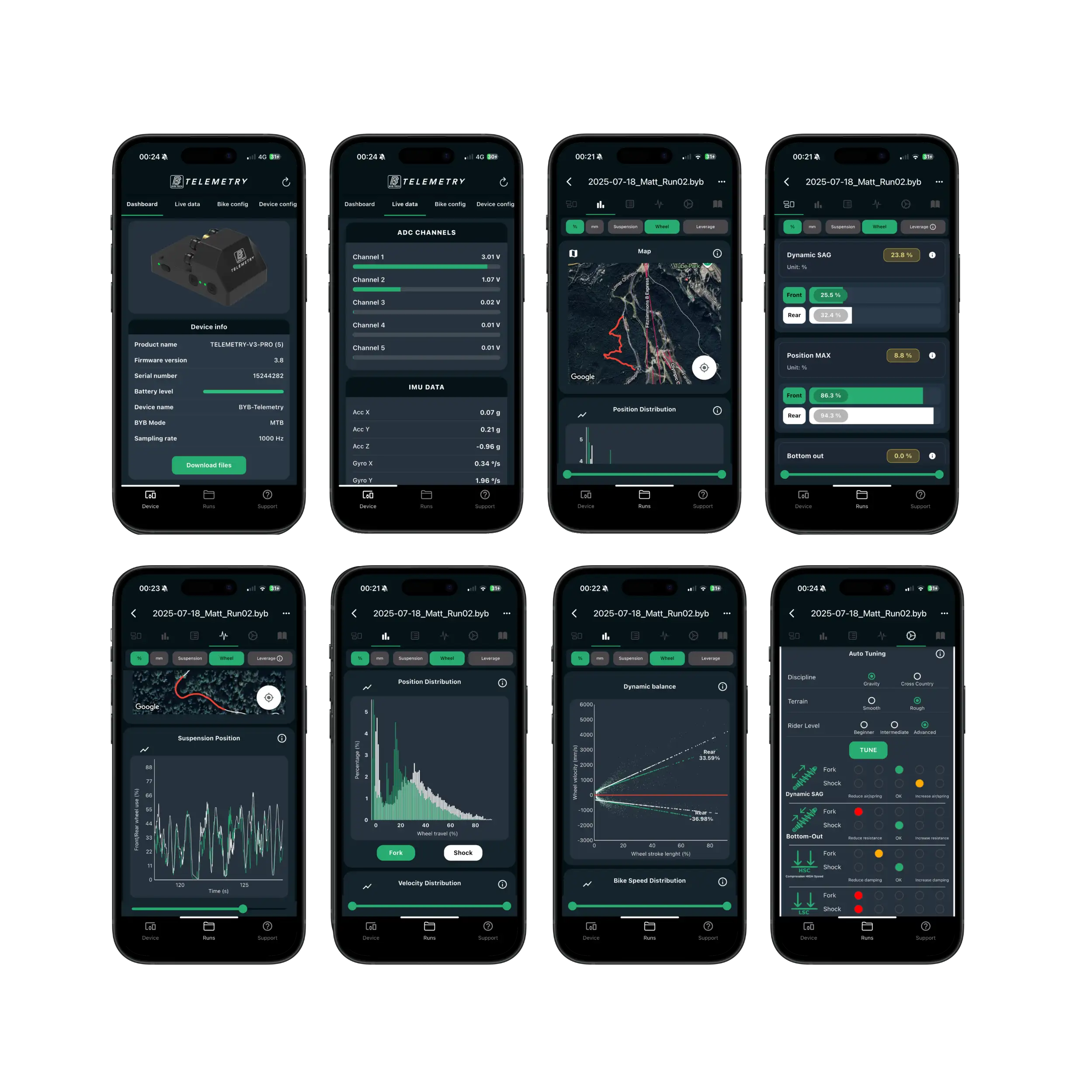

The software and the app

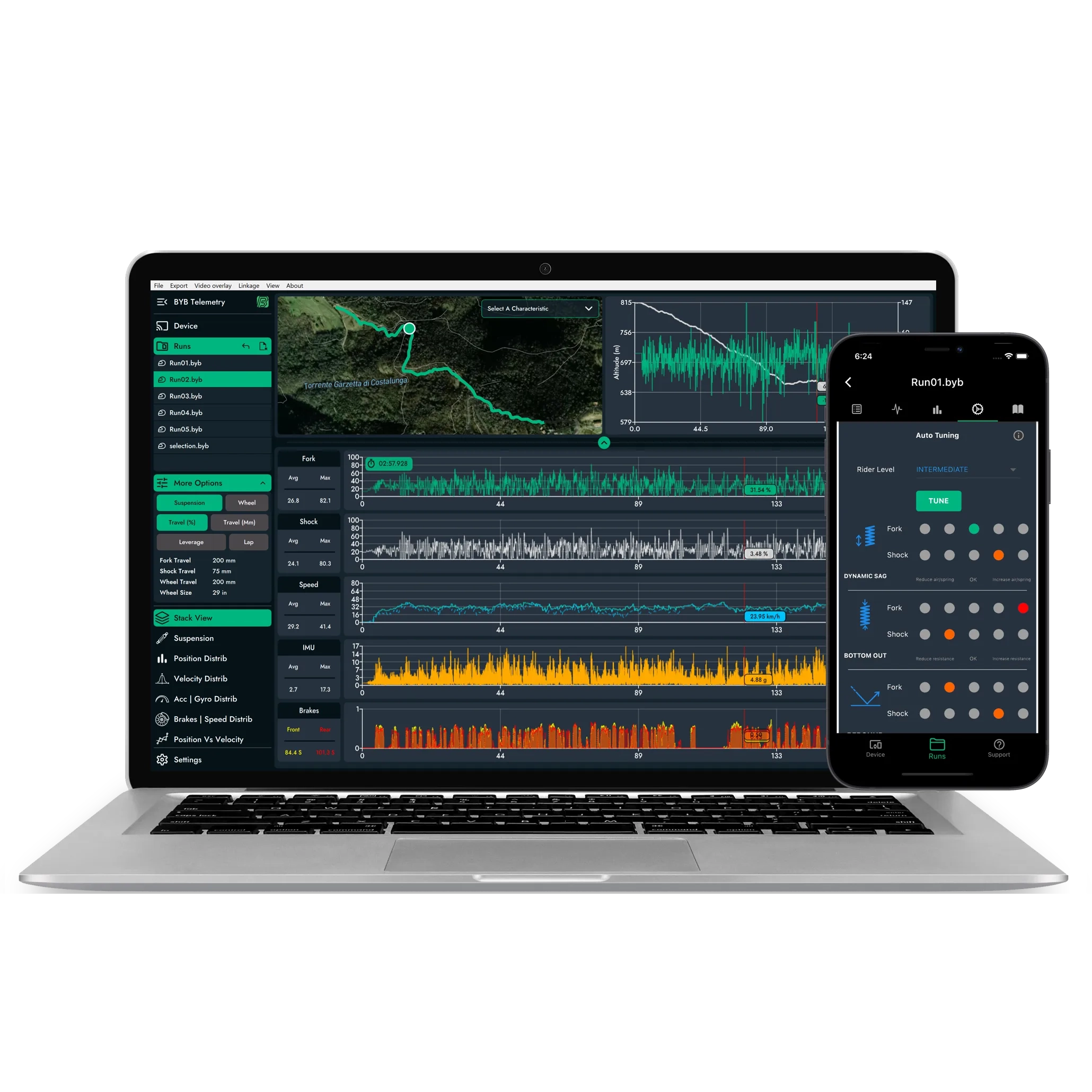

The BYB Telemetry desktop software open on a laptop, beside the phone app on a smartphone. — Both are included with the kit — Mac and Windows for the analysis, iOS and Android for pulling a run off the bike.

Every analysis view in the software

After you pay

Software updates: Included, with no subscription — both the desktop software and the phone app.

How it works

How suspension data acquisition works
