Telemetry V3 MTB

Name: Telemetry V3 MTB
Brand: BYB Tech
SKU: telemetry-v3-mtb
Price: 1399.00 EUR
Availability: InStock

1.399,00 € excl. VAT

VAT and delivery are calculated at checkout, once BYB Tech knows where the order is going.

Discipline

Delivery: Starting from 9,00 €

The Telemetry V3 MTB kit laid out flat: the printed BYB Tech Telemetry case, a long and a short linear sensor, the acquisition unit's cradle, and the fork and shock brackets, shims and fasteners that fit a mountain bike. — Everything in the V3 MTB box.

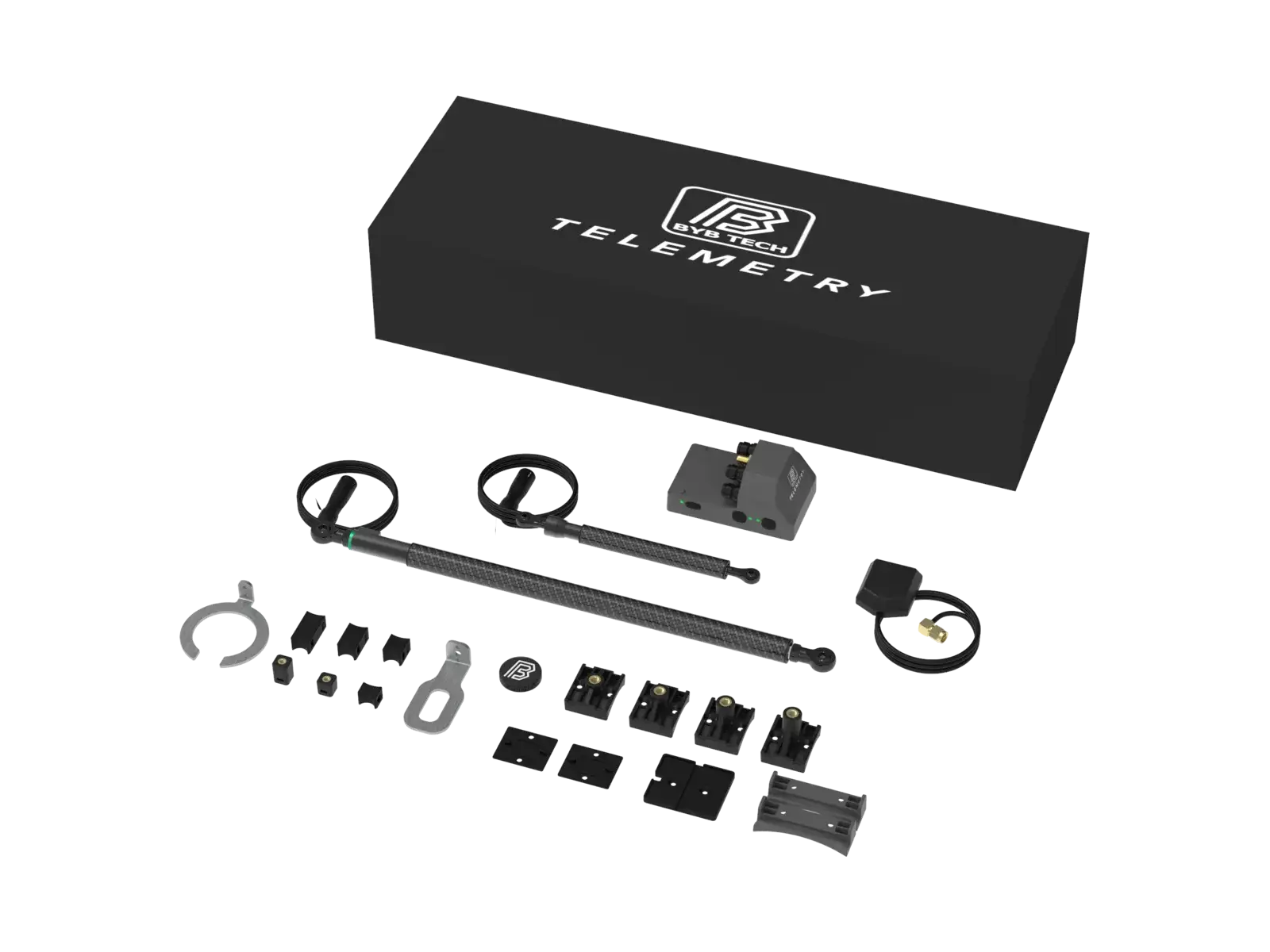

The Telemetry V3 MTB kit from a second angle, the mounting hardware spread below the sensors. — The same contents from the other side.

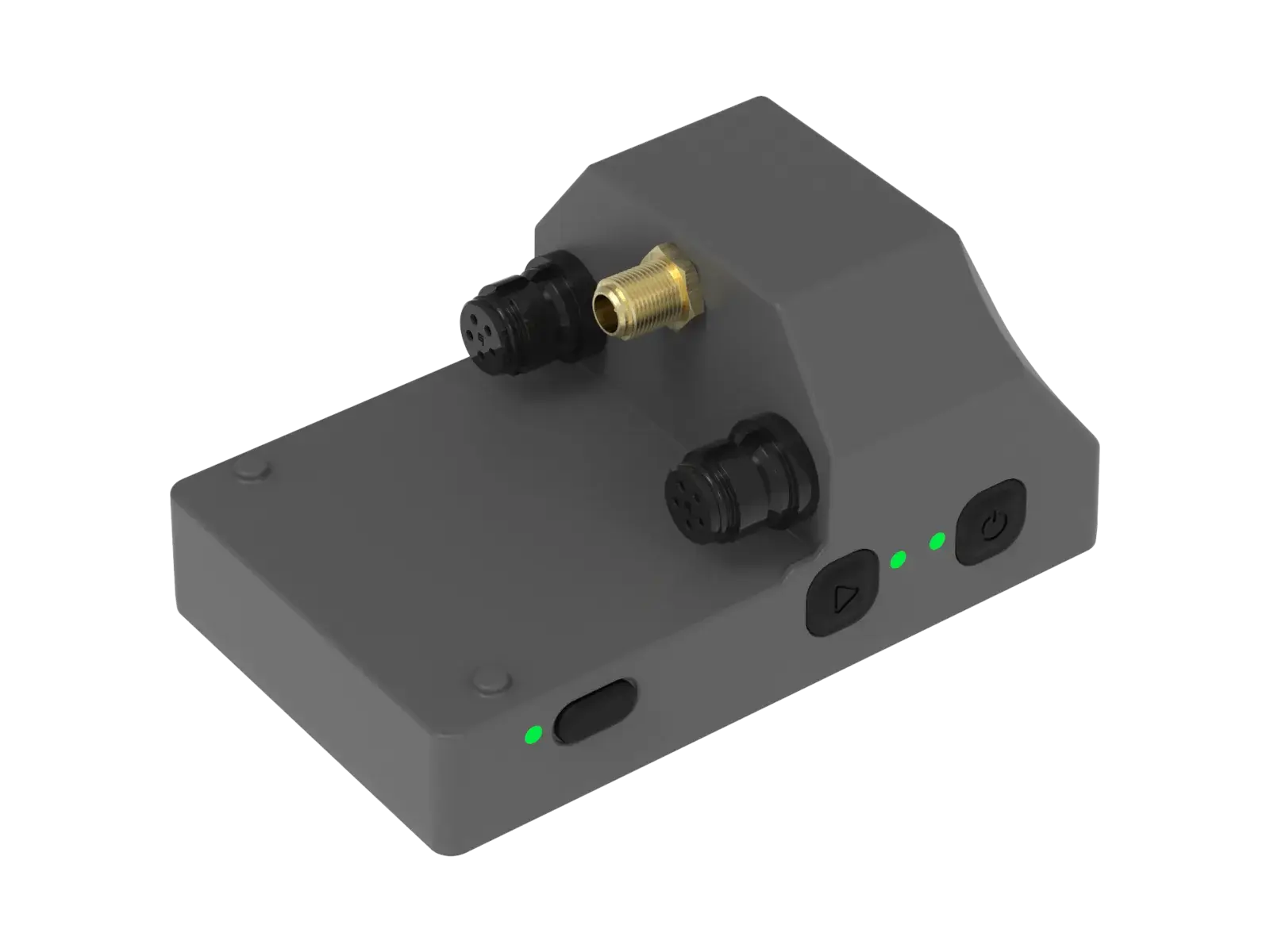

The Telemetry V3 acquisition unit: the same wedge-shaped body as the Pro but with a smaller connector bank — two circular screw-lock sensor connectors beside a gold coaxial antenna socket — a triangular record button, a power button and green status lights. — The V3 acquisition unit. Its connector bank is smaller than the Pro's, which is the difference you can see from outside.

About this product

BYB Telemetry V3 is a suspension data acquisition system that records two channels at 500 Hz, so setup decisions rest on data rather than feel — at a more accessible level than V3 Pro.

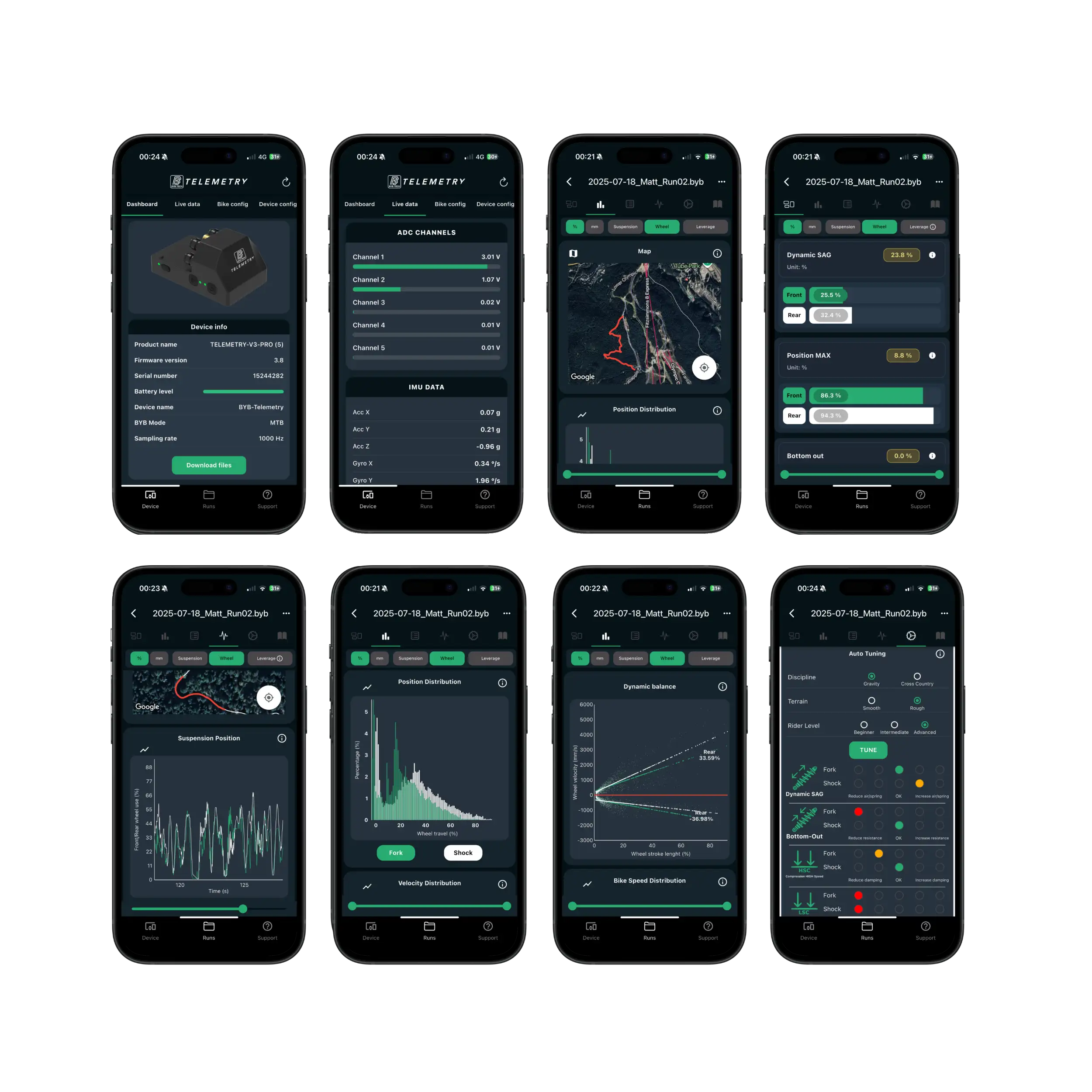

Install fast, ride immediately, then download and analyze runs in PC software + smartphone app to compare settings across sessions.

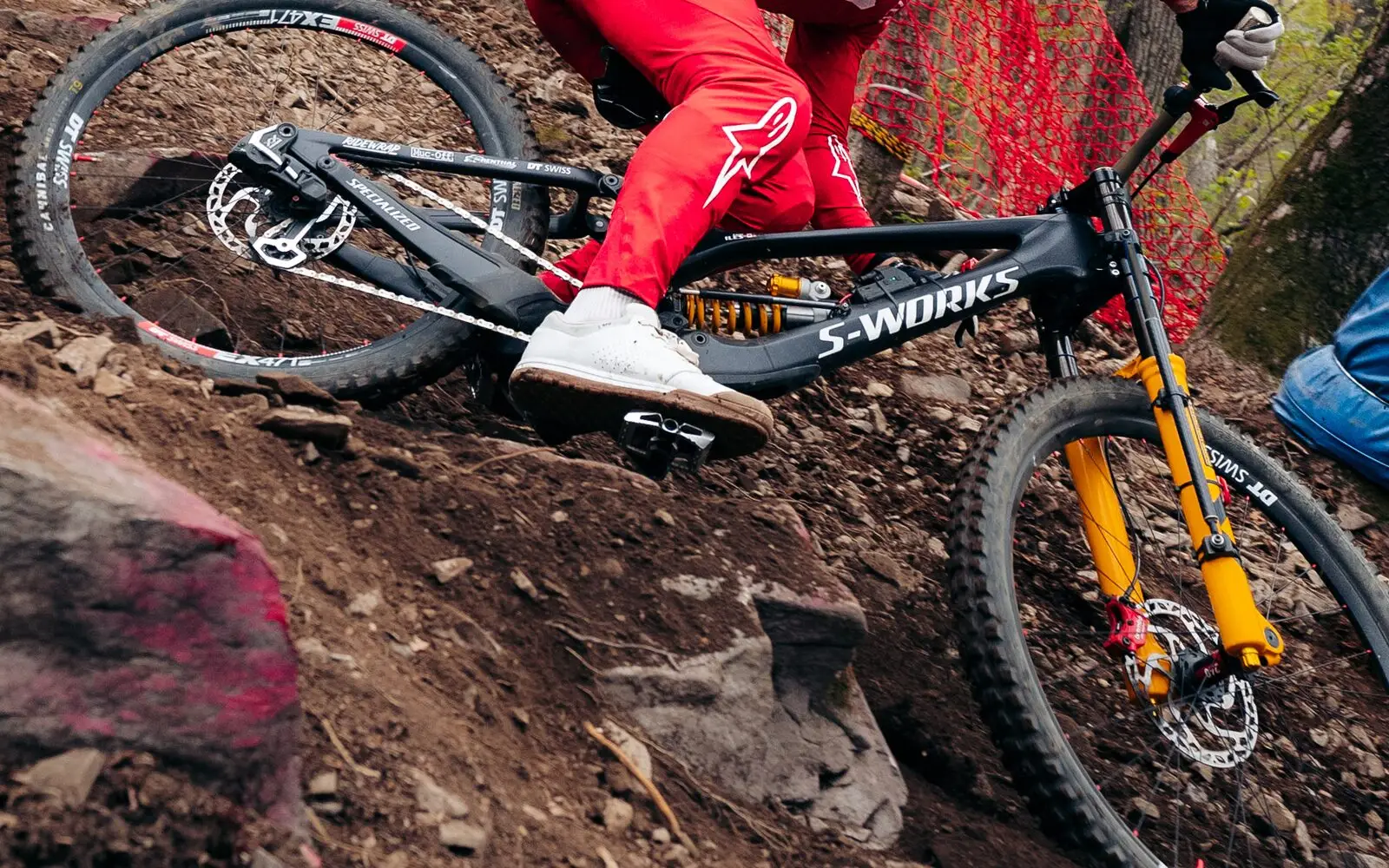

A downhill mountain bike being ridden over rocks on a race track, a BYB Telemetry acquisition unit mounted on the frame. — Telemetry V3 on a downhill bike, racing a World Cup track. Every bracket in the box is made for this kind of bike.

See where each sensor goes on a mountain bike

In the box

x1 Acquisition unit V3
x1 Fork 210 mm sensor (with protective carbon cover)
x1 Shock 80 mm sensor (with protective carbon cover)
x1 GPS antenna
x1 Full set of MTB mountings (metal and plastic)
PC software (Mac + Windows)
Smartphone app (iOS + Android)
Included features: stack view, suspension view, position distribution, velocity distribution, leverage, lap manager, summary, autotuning, notes

Specifications

2 analog channels
500 Hz sampling rate
MTB and MX modes
Built-in 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
Built-in GPS (25 Hz, fast update rate)
Auto-pause, snap-in connectors
Waterproof, compact (40x50x80 mm) and lightweight (80 g)

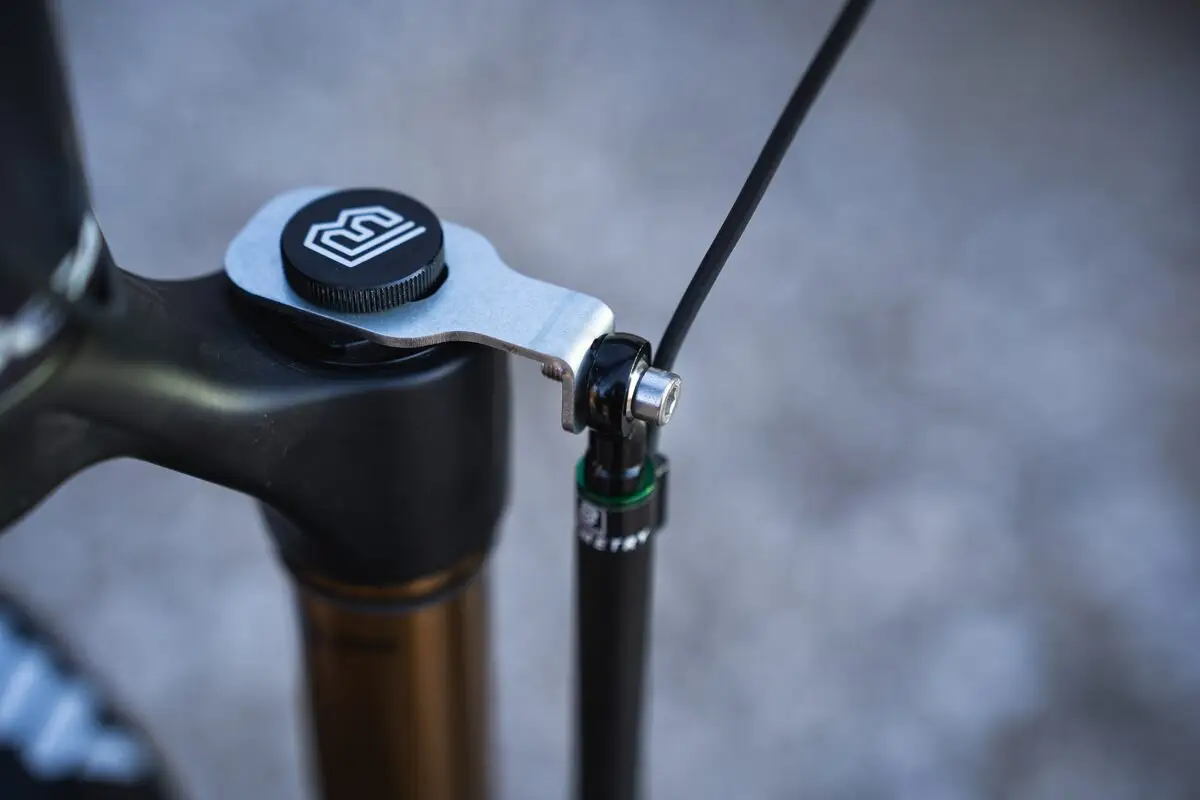

The upper mount of a BYB Telemetry fork sensor on a mountain bike fork crown, the ball joint and cable running down beside the stanchion. — The 210 mm fork sensor's upper joint. The whole sensor lifts off for travel.

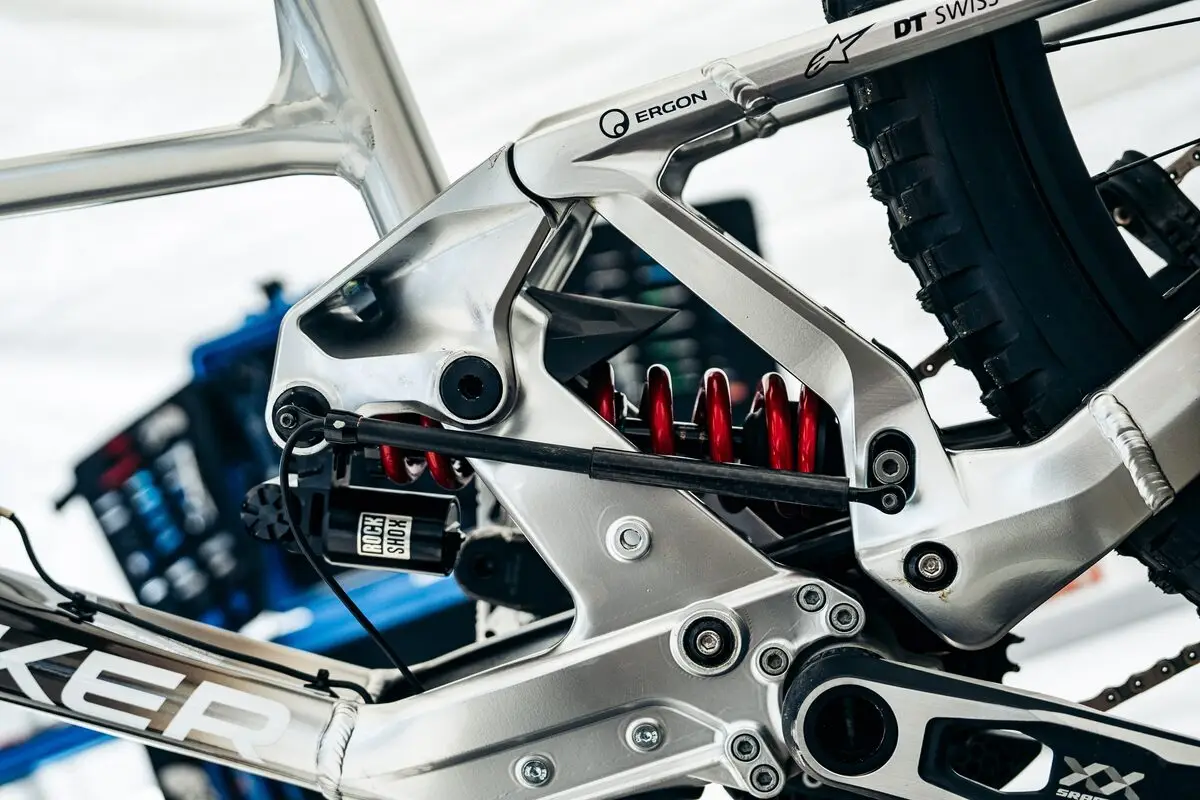

A BYB Telemetry shock sensor fitted diagonally across the coil shock of a downhill mountain bike, between the linkage and the lower shock mount. — The 80 mm shock sensor across a coil. The same mount takes air or coil.

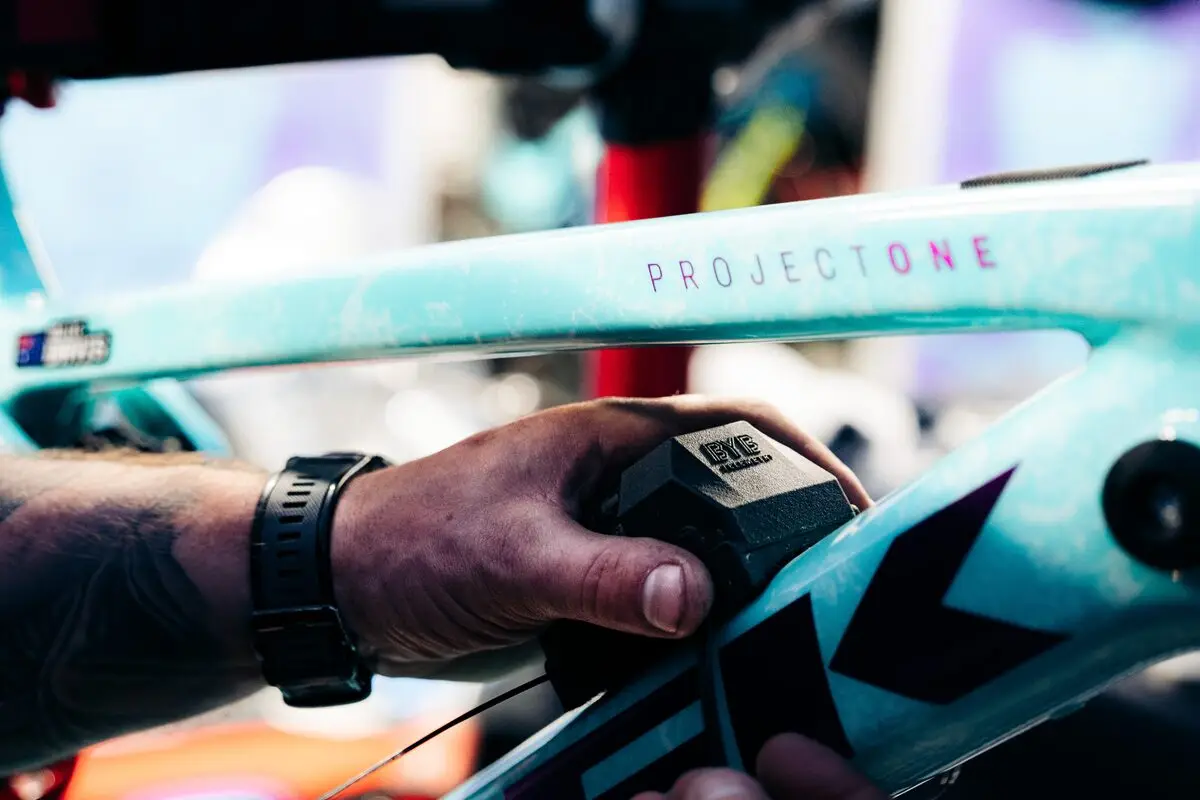

A mechanic's hands fitting a BYB Telemetry acquisition unit to the down tube of a downhill mountain bike. — The 80 g acquisition unit on the front triangle. Every sensor plugs in here.

Need more channels?

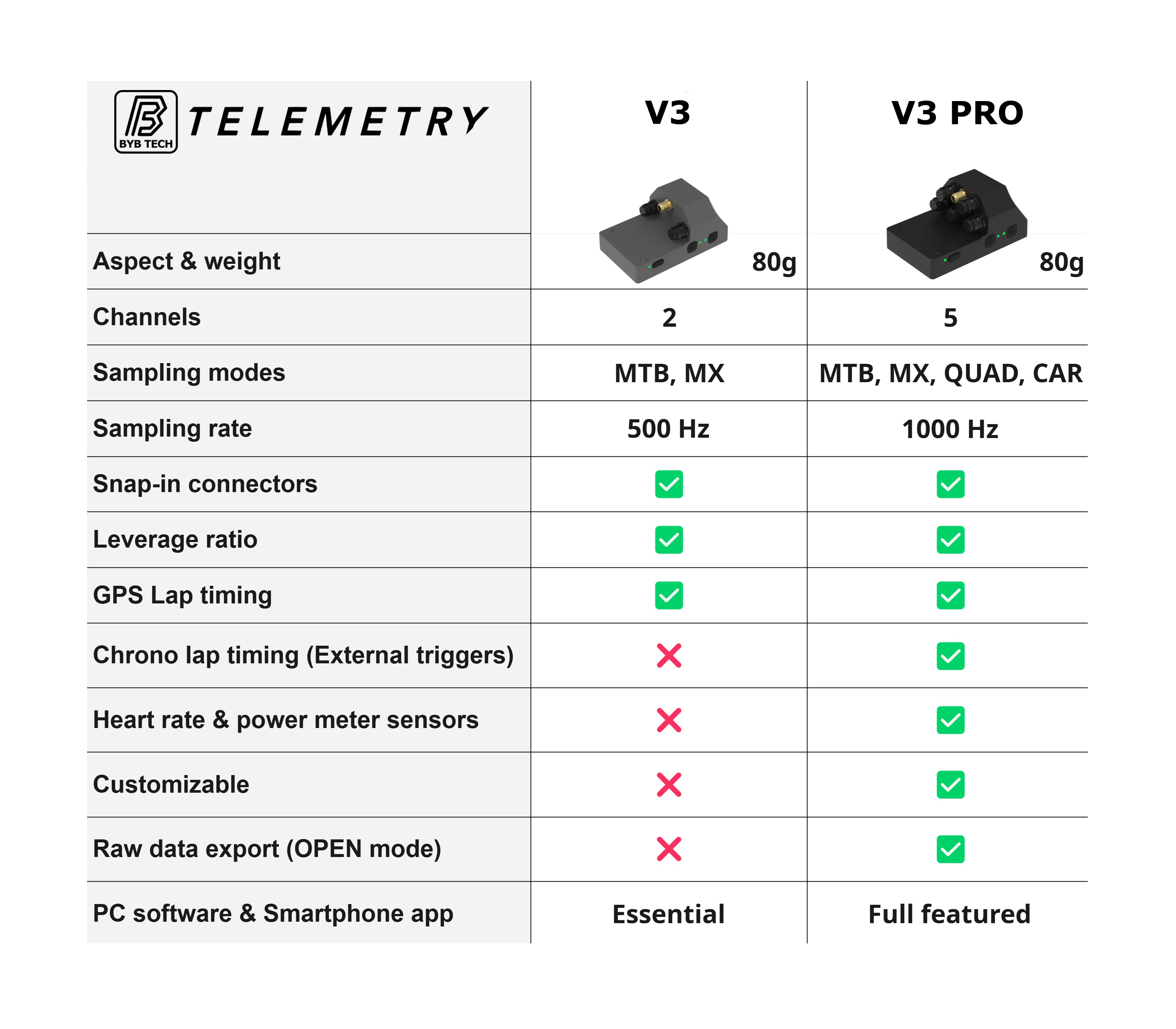

Telemetry V3 Pro MTB records five channels at 1000 Hz instead of two at 500 Hz, and adds brake and wheel-speed sensors.

See Telemetry V3 Pro MTB

The software and the app

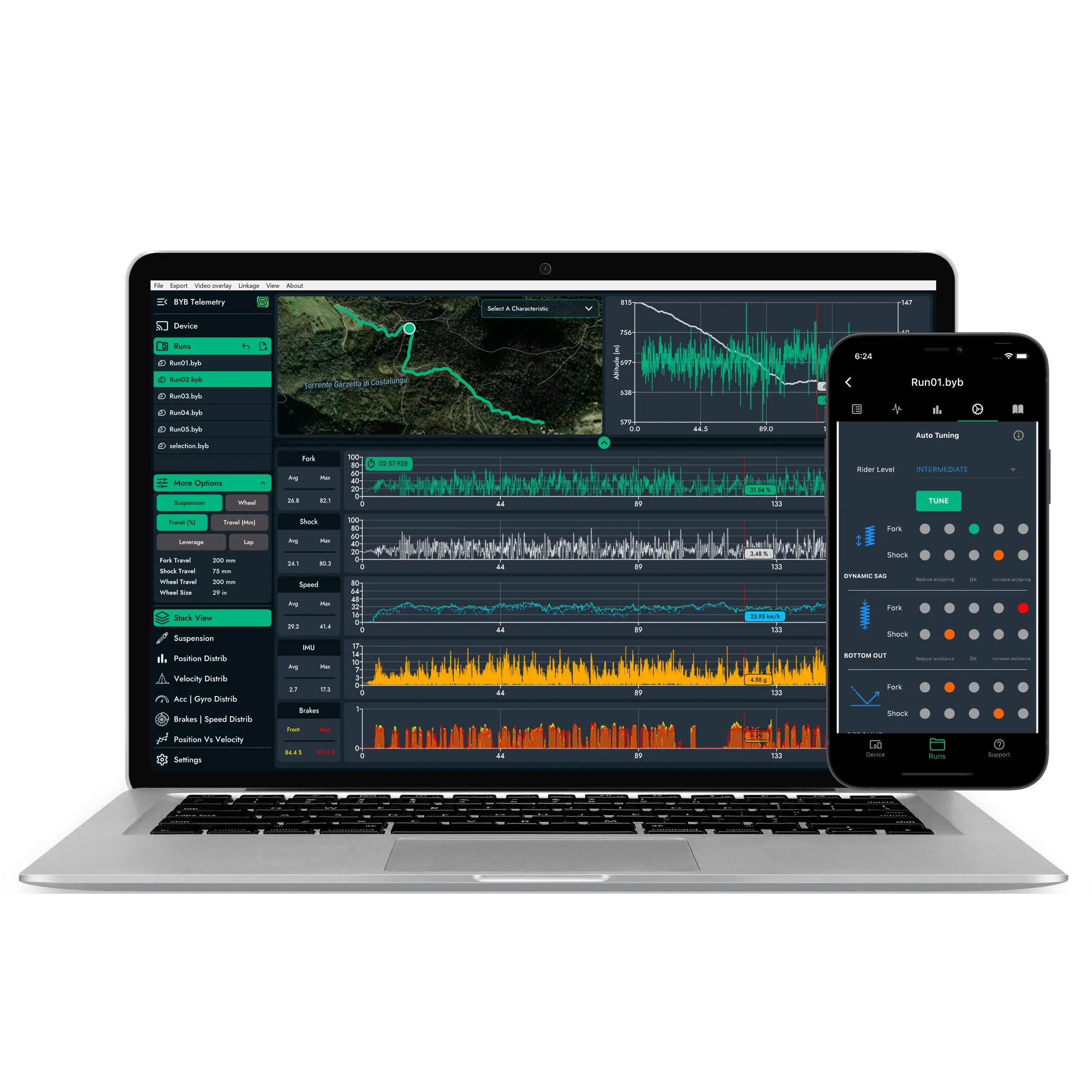

The BYB Telemetry desktop software open on a laptop, beside the phone app on a smartphone. — Both are included with the kit — Mac and Windows for the analysis, iOS and Android for pulling a run off the bike.

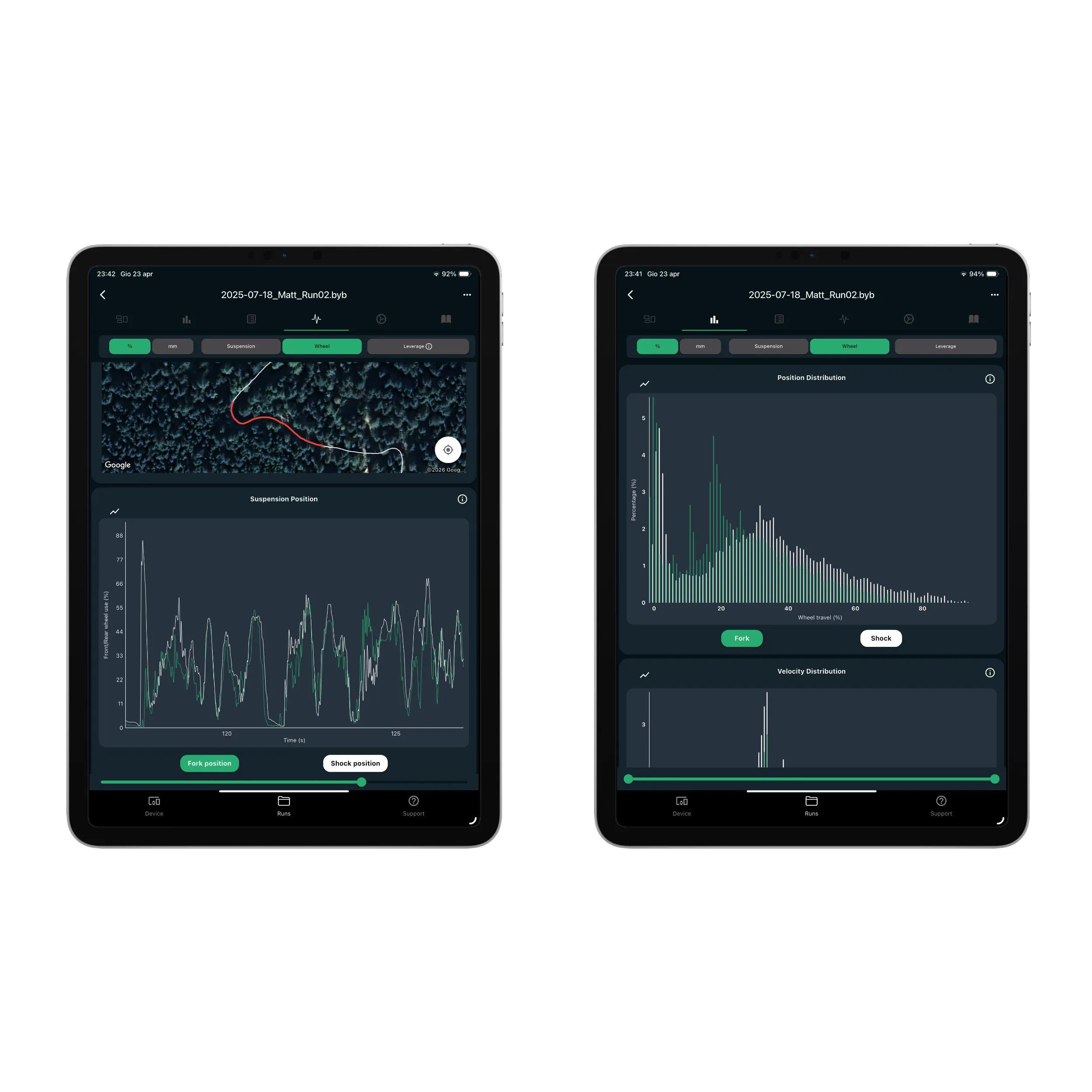

Every analysis view in the software

After you pay

Software updates: Included, with no subscription — both the desktop software and the phone app.
