Telemetry V3 Pro - Acquisition unit

1.999,00 € excl. VAT

VAT and delivery are calculated at checkout, once BYB Tech knows where the order is going.

Delivery: Starting from €9.00

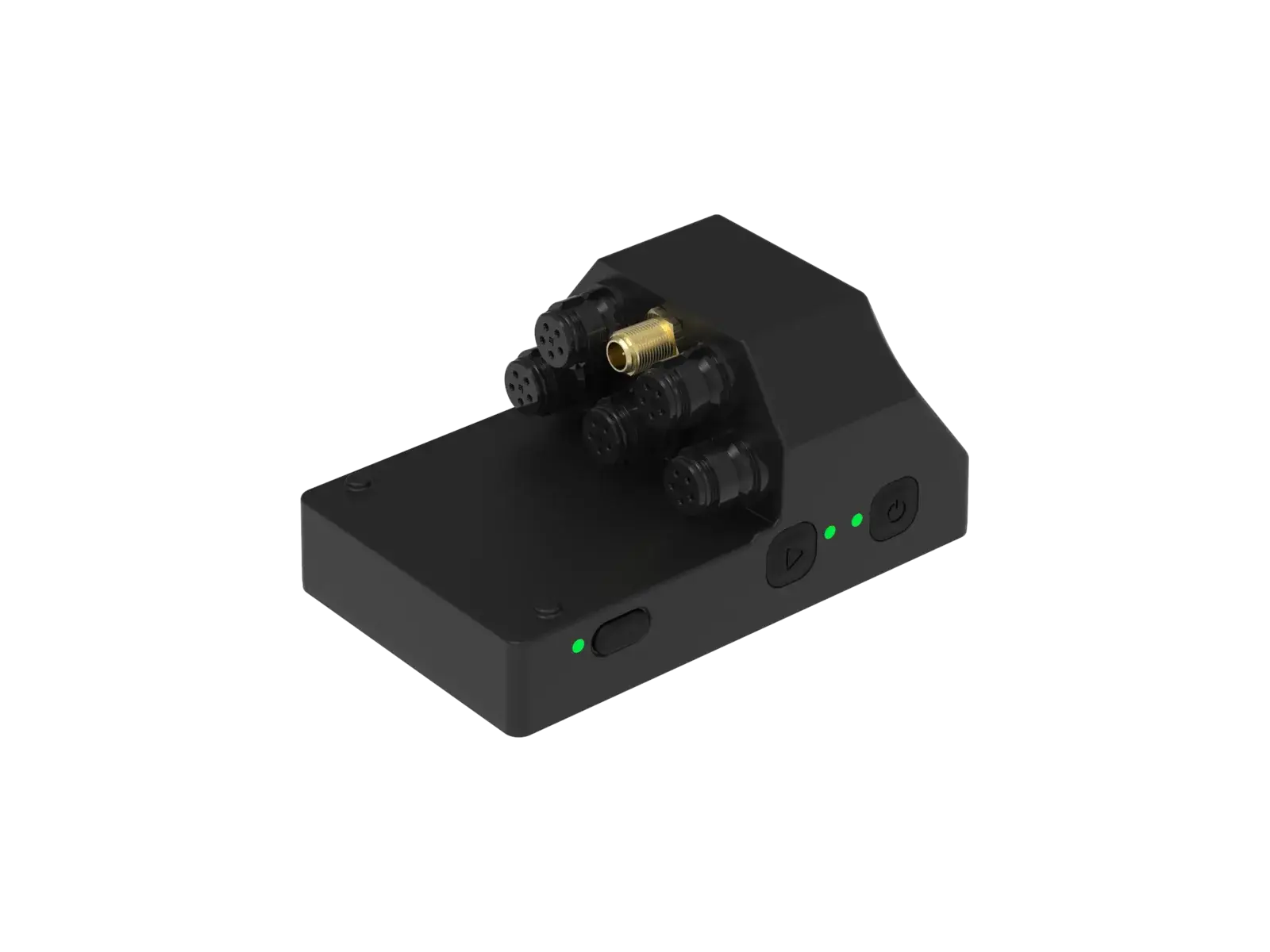

The Telemetry V3 Pro acquisition unit at three-quarters: a wedge-shaped black body with a bank of circular screw-lock sensor connectors around a gold coaxial antenna socket, a triangular record button, a power button and a row of green status lights. — The unit on its own, for a workshop that already owns sensors and mountings. The gold socket takes the GPS antenna.

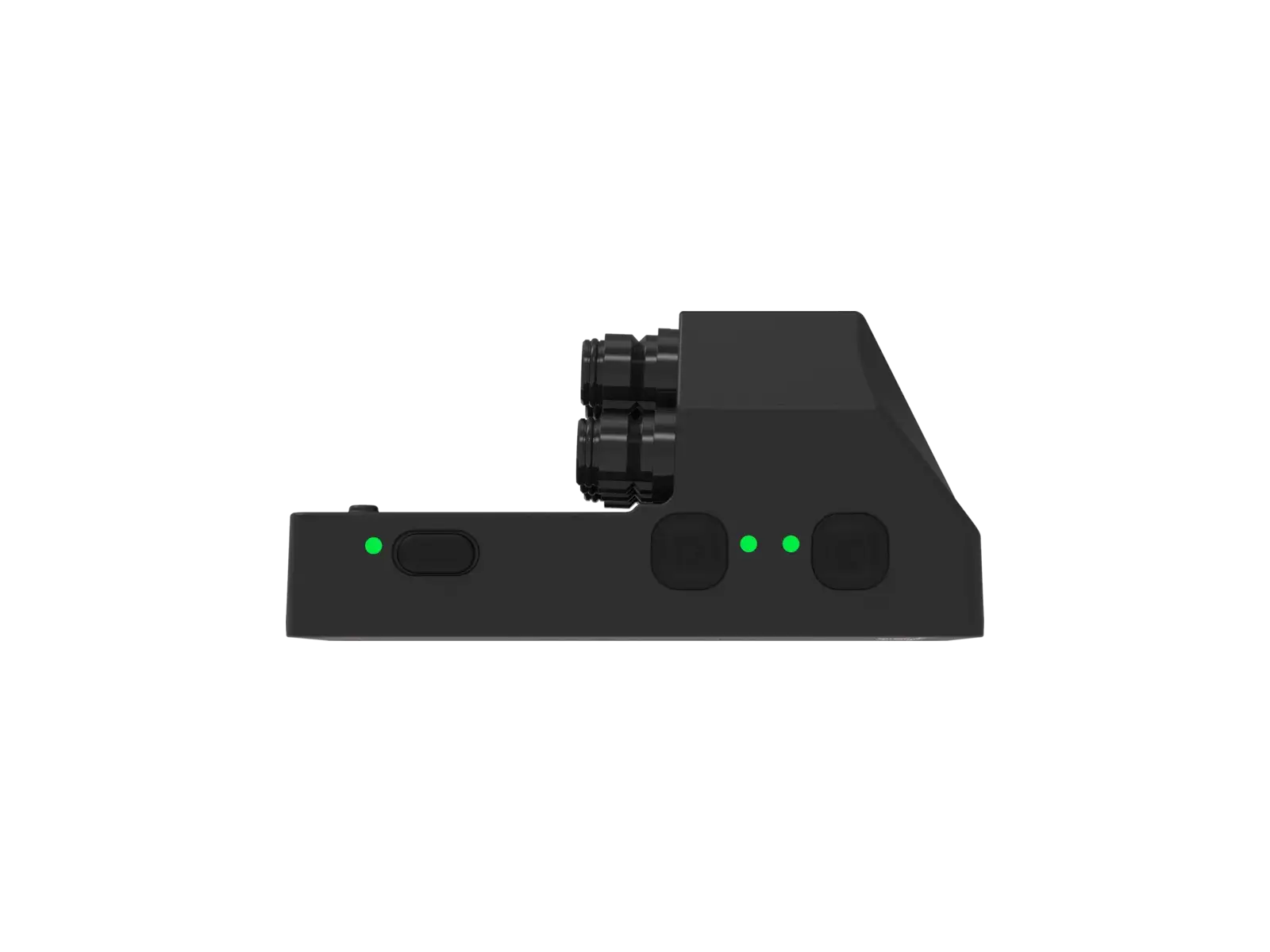

In profile. The connectors, not the body, set how much room the unit needs on a frame.

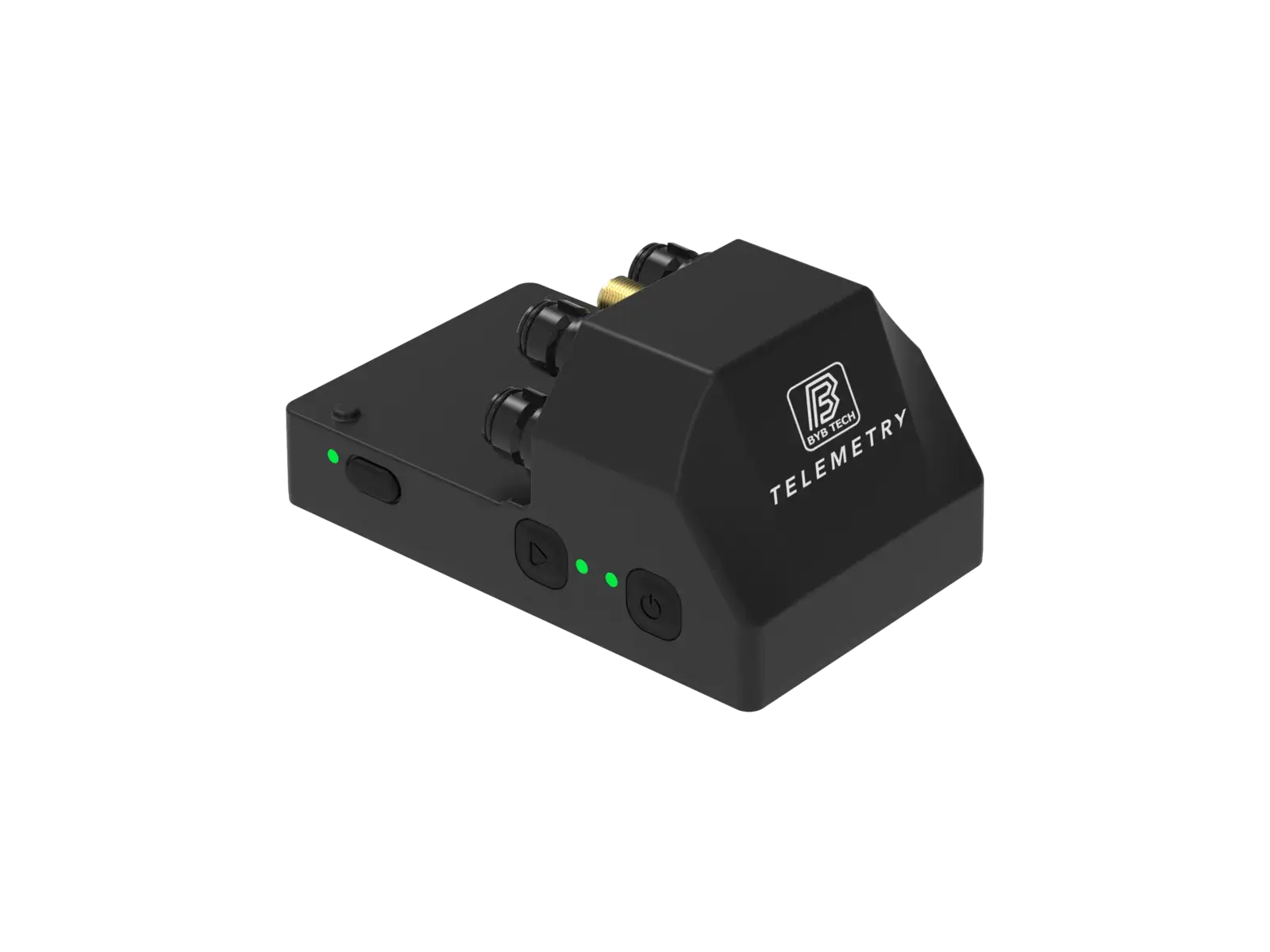

The marked face. This is the side that shows once the unit is strapped to a frame.

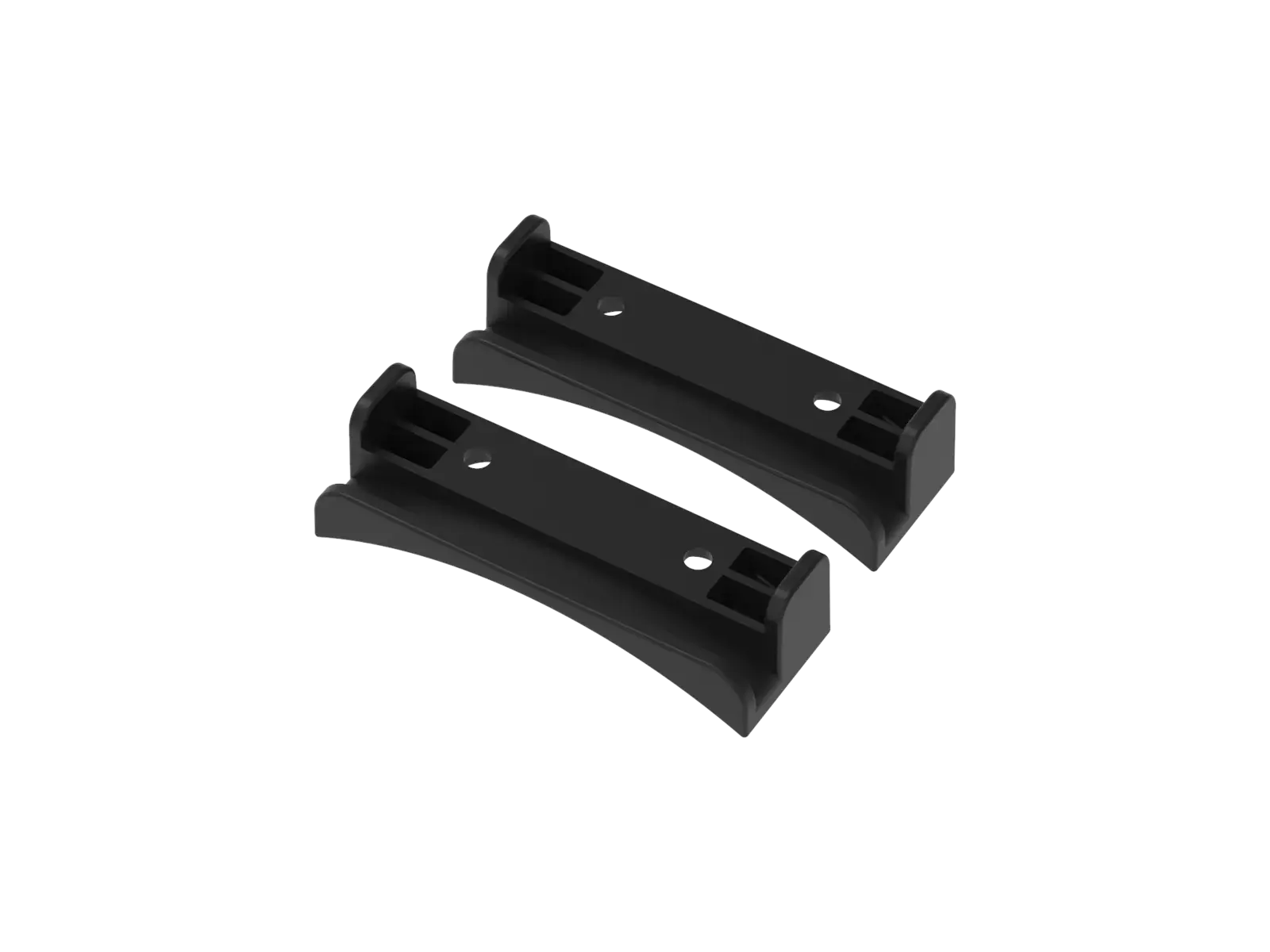

The pair of curved black cradles the Telemetry V3 acquisition unit sits in, each moulded to wrap a frame tube and slotted for a strap. — The cradles the unit clamps into. The curve takes a round tube; the slots take the strap.

About this product

The Telemetry V3 Pro acquisition unit is the suspension data logger on its own: suspension sensors are not included. Pair it with BYB sensors, sold separately, or connect your own in OPEN mode; it records five channels at 1000 Hz, so riders and workshops base setup decisions on data rather than feel.

Install fast, ride immediately, then download and analyze runs in PC software + smartphone or tablet app to compare settings across sessions.

In the box

x1 Acquisition unit V3 Pro
x1 GPS antenna
x1 Full set of mountings (plastic)
PC software (Windows + MAC)
Smartphone and tablet app (iOS + Android)
No extra fees: regular updates included

Specifications

5 analog channels (customizable on request)
Standard modes + OPEN mode (connect your own sensors)
1000 Hz sampling rate on every channel
Built-in 6-axis IMU (3-axis accelerometer + 3-axis gyroscope)
Built-in GPS (25 Hz, fast update rate)
Wireless compatibility: heart rate and power meter sensors
BYB Chrono: compatible with external triggers
Export: raw data export (CSV)
Waterproof, compact (40x50x80 mm) and lightweight (80 g)
Software (Mac and Windows) + smartphone and tablet app (iOS and Android)

The software and the app

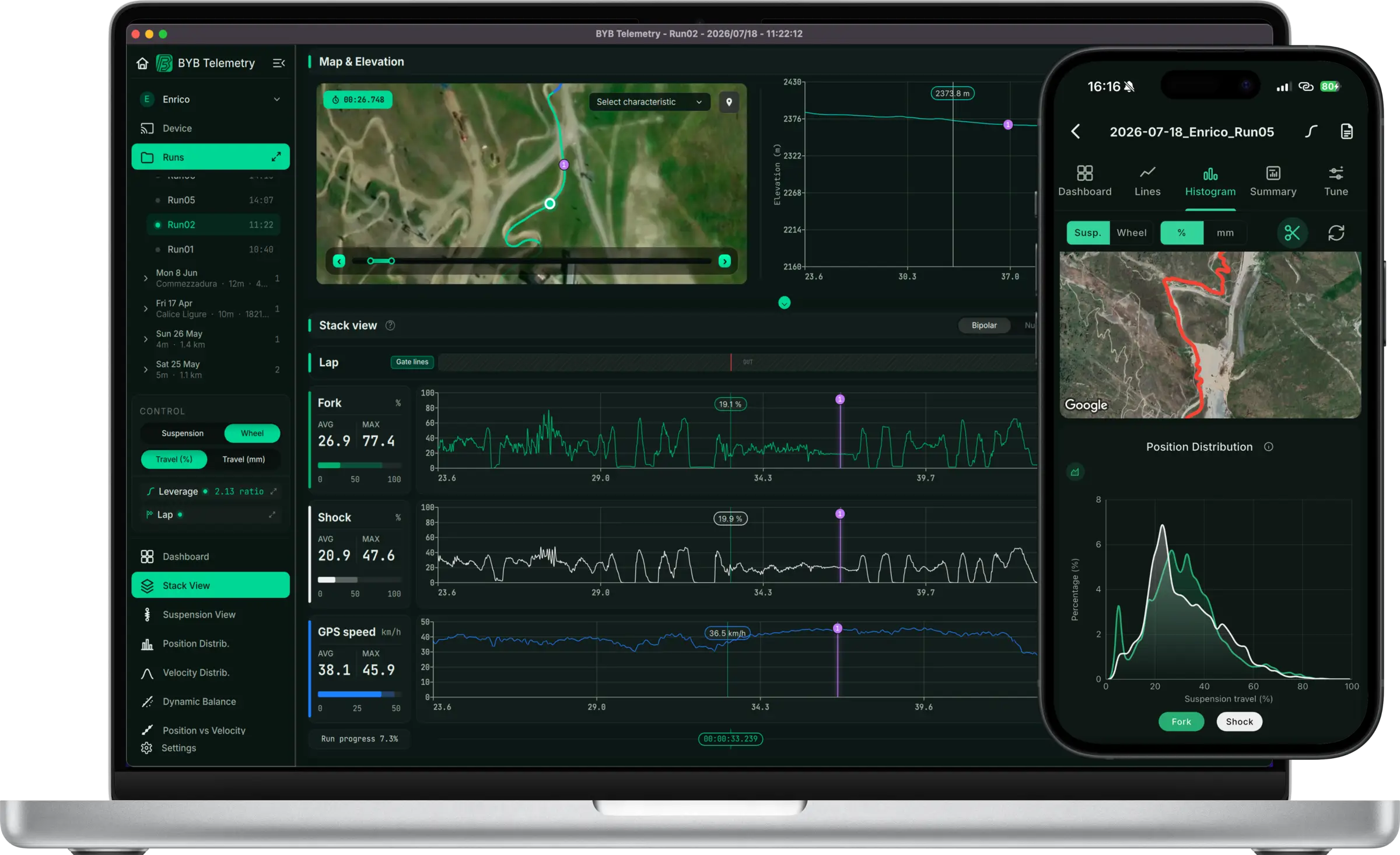

The BYB Telemetry desktop software open on a laptop, beside the phone app on a smartphone. — Both are included with the kit — Mac and Windows for the analysis, iOS and Android phones and tablets for pulling a run off the bike.

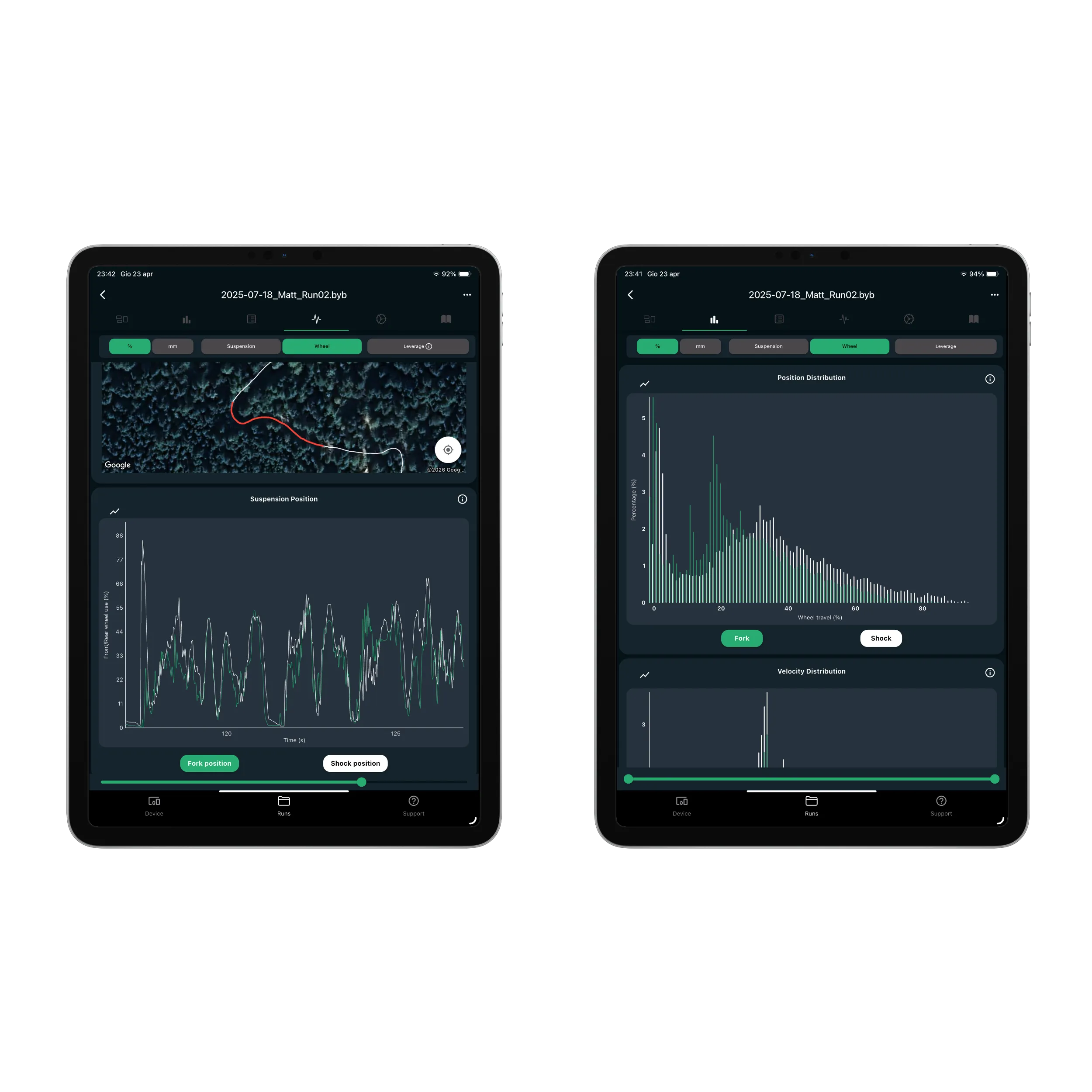

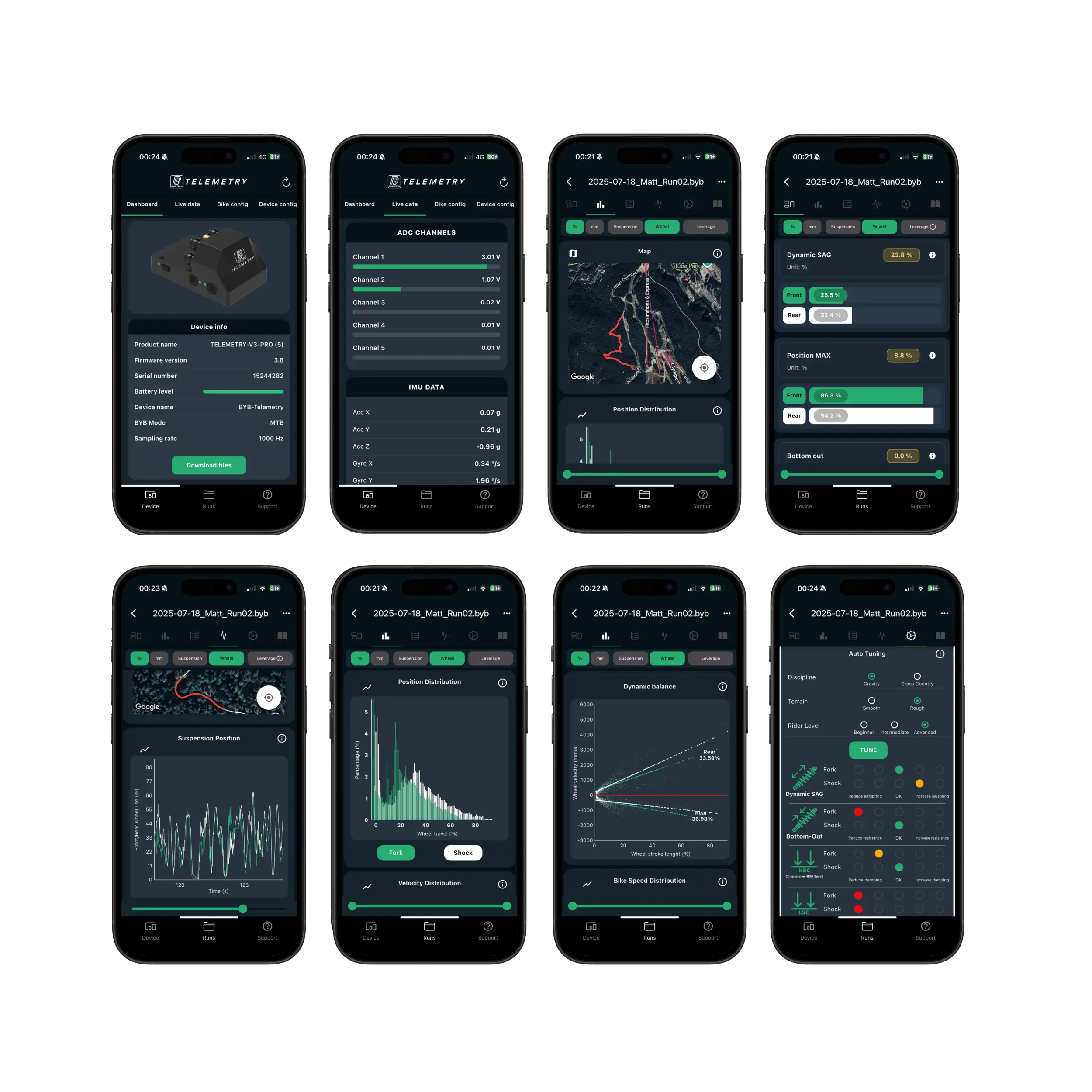

Every analysis view in the software

After you pay

Software updates: Included, with no subscription — both the desktop software and the phone and tablet app.
Cloud features: Optional. You record and analyse on your own computer and phone, with no limit and no plan. The cloud only adds a second device and sharing with a tuner — free up to 50 runs and 500 MB.
