Linear sensor 150 mm

Name: Linear sensor 150 mm
Brand: BYB Tech
SKU: linear-sensor-150-mm
Price: 359.00 EUR
Availability: InStock

359,00 € excl. VAT

VAT and delivery are calculated at checkout, once BYB Tech knows where the order is going.

Stroke length

Delivery: Starting from 9,00 €

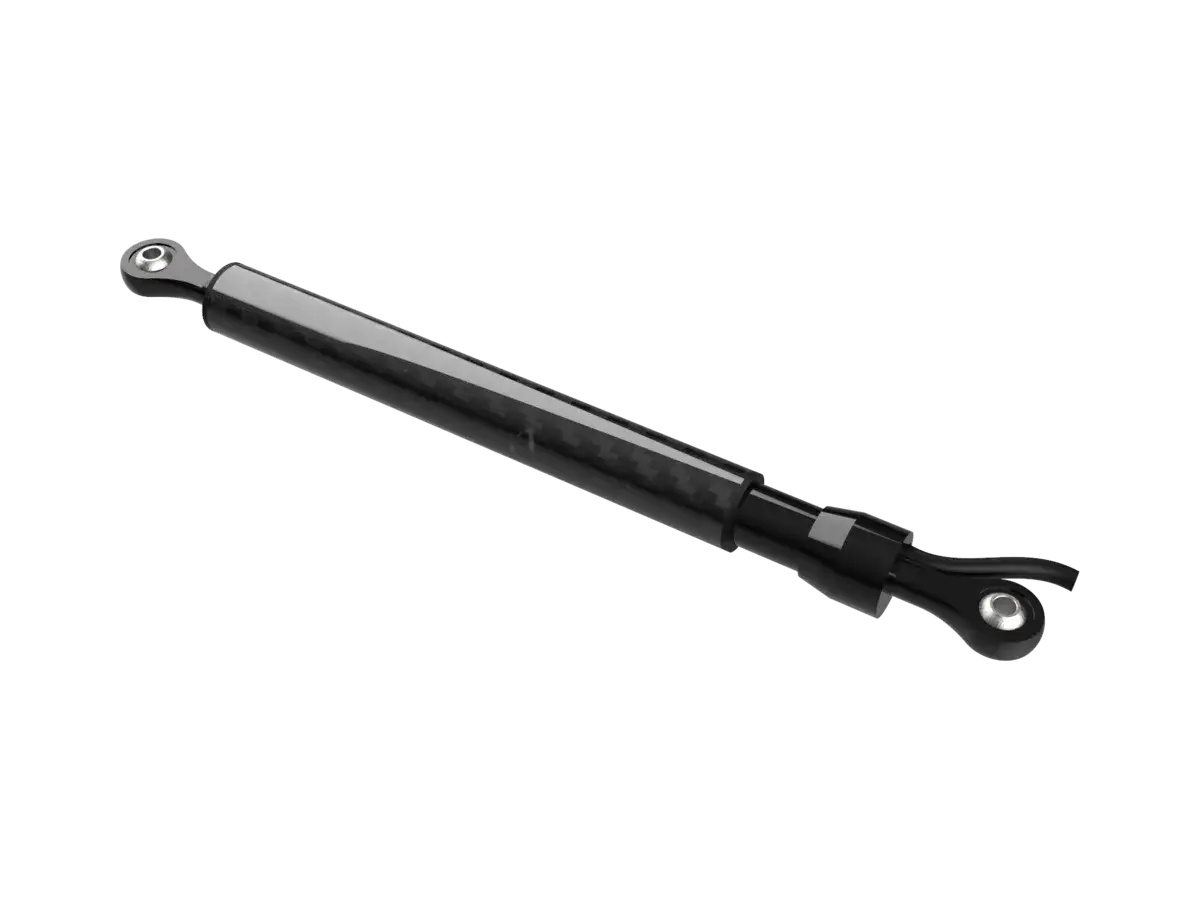

A BYB Tech linear sensor at an angle, full length: a carbon-wrapped body with a polished rod end at each mount, the smaller of the two body sizes. — The 150 mm sensor. It shares its body with the 80 mm; only the stroke differs.

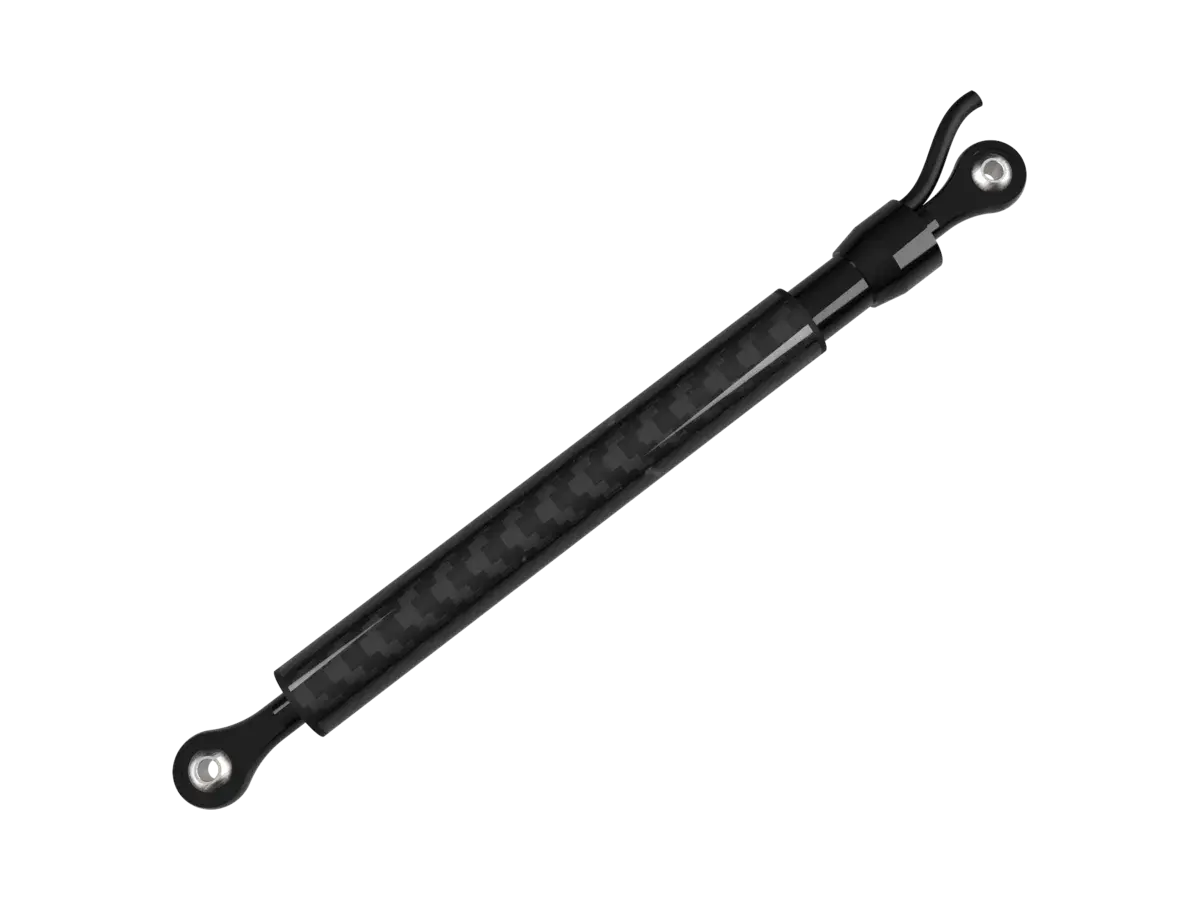

The same linear sensor from a second angle, showing the collar where the shaft enters the body and the cable leaving the far end. — The 150 mm sensor from the other side. 98 g including the 100 cm cable and connector.

A BYB Tech V3 connector on its own: a straight black plastic plug, ribbed along its length for grip, with a keyed socket on the end. — The V3 connector — straight, all plastic, keyed. What a new order ships with.

A BYB Tech V2 connector on its own: a right-angled black body ending in a knurled metal barrel with a threaded collar and pin contacts. — The V2 connector — right-angled, with a metal screw-lock collar. Choose this if your acquisition unit is a V2.

About this product

The high-precision linear sensors are used to measure displacements with the best accuracy. The sensors are produced directly by BYB Tech to guarantee the best ratio between performance and footprint, in fact their ultra-compact design allows them to be installed on any suspension with greater ease.

The linear sensors can measure any displacements up to their stroke length.

In the box

Sensor (150 mm)
Cable (100 cm)
IP67 BYB standard connector
Carbon cover

Specifications

Motorsport sensor
Self-alignment joints
Waterproof
Lightweight (only 98 g including 100 cm cable and connector)
